FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
108/190

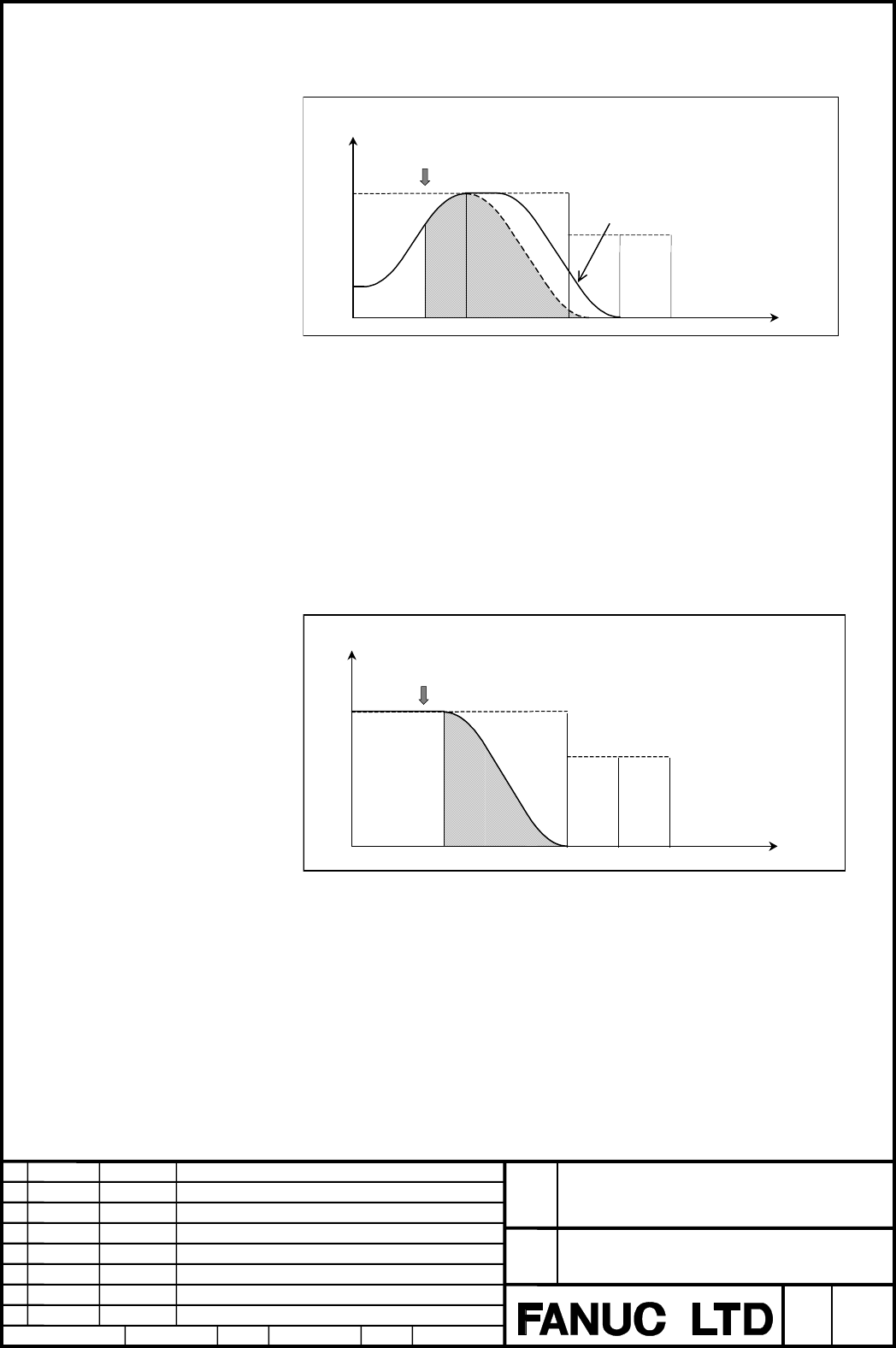

(b) If A + B > Remaining amount of travel in the block being executed when
the single-block command is executed
A stop state may continue over several blocks.
The stop is made as described later.
Feedrate
Time
B
A
Single-block command
Stop state continuing ove
r
multiple blocks
A : Amount of travel to a point where the target feedrate is attained and the
current acceleration/deceleration ends
B : Amount of travel corresponding to deceleration from the feedrate
attained at the end of acceleration/deceleration to 0
(2) If acceleration/deceleration is not performed when the single-block command
is executed
(a) A
≤ Remaining amount of travel in the block being executed when the
single-block command is executed
Movement is decelerated and stopped so that the feedrate falls to zero at
the end of the block which was being executed when the single-block
command was executed.
Feedrate
Time
A
Single-block command
A : Amount of travel corresponding to deceleration from the current feedrate
to 0
Previous page
Next page
