FANUC Series 16i /18i Additional Manual Page 126

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
126/190

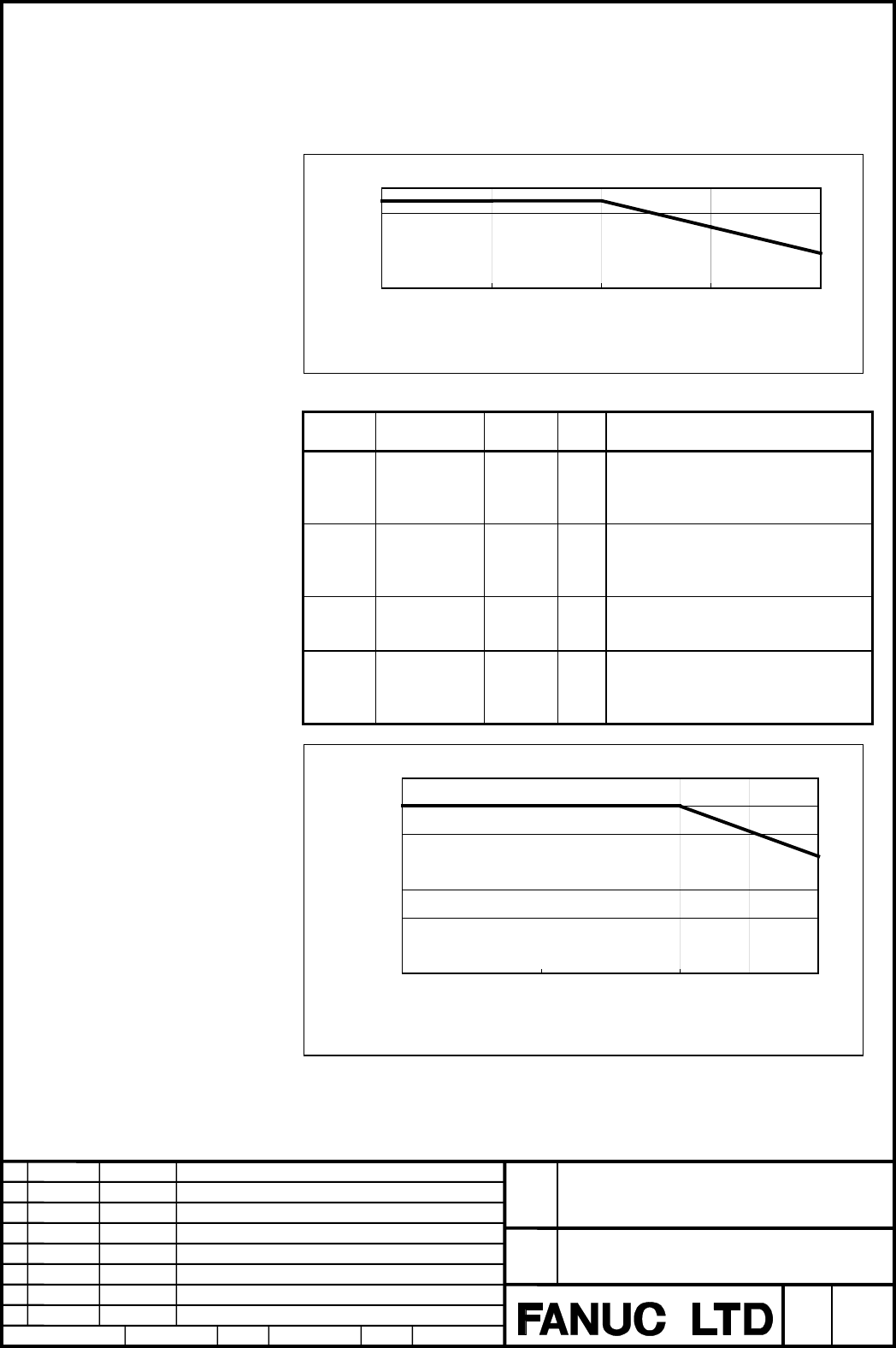

(1) In case of plus move (up) and acceleration
Because torque of Gravity and friction work against the output torque of motor,
the torque for acceleration/deceleration is as follows.
Maximum torque : 70(=100-20-10) (Nm) Speed: 0 to 2000 (min
-1
)
Torque at rapid traverse : 49(=79-20-10) (Nm) Speed: 3000 (min
-1
)
Minimum torque : 28(=58-20-10) (Nm) Speed: 4000 (min
-1
)
0
20
40
60
80
0 1000 2000 3000 4000
Speed(min
-1
)
Torque(Nm)
P0 P1
P5
Fig. 2.24(g) Torque for Acc/Dec in case of + move and acceleration
Parameter setting is as follows,
Parameter
No.
Setting Unit Remarks
Acceler
ation at
P0
19545 14554 0.01
%
At P0, 70(Nm) can be used for the
acceleration/deceleration, so set the
ratio 6002 (mm/sec
2
) to 4124
(mm/sec
2
). 1.4554 = 6002/4124
Acceler
ation at
P1
19546 14554 0.01
%
At P1, 70(Nm) can be used for the
acceleration/deceleration, so set the
ratio 6002 (mm/sec
2
) to 4124
(mm/sec
2
). 1.4554 = 6002/4124
Acceler
ation at
P2 -P4
19547-19549 0 0.01
%
0 is set because P2 to P4 are
skipped.
Acceler
ation at
P5
19550 10187 0.01
%
At P5, 49(Nm) can be used for the
acceleration/deceleration, so set the
ratio 4201 (mm/sec
2
) to 4124
(mm/sec
2
). 1.0187 = 4201/4124
P1
P0
0
1000
2000
3000
4000
5000
6000
7000
0 16000 32000 48000
Speed (mm/min)
Acceleration (mm/sec
2
)
P5
Fig. 2.24(h) Acceleration pattern in case of + move and acceleration
