FANUC Series 16i /18i Additional Manual Page 147

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
147/190
19681 Axis number of 1
st
rotary axis
[Data type] Byte
[Valid data range] 0 to Maximum controlled axis number
Set the controlled axis number of 1
st
rotary axis.

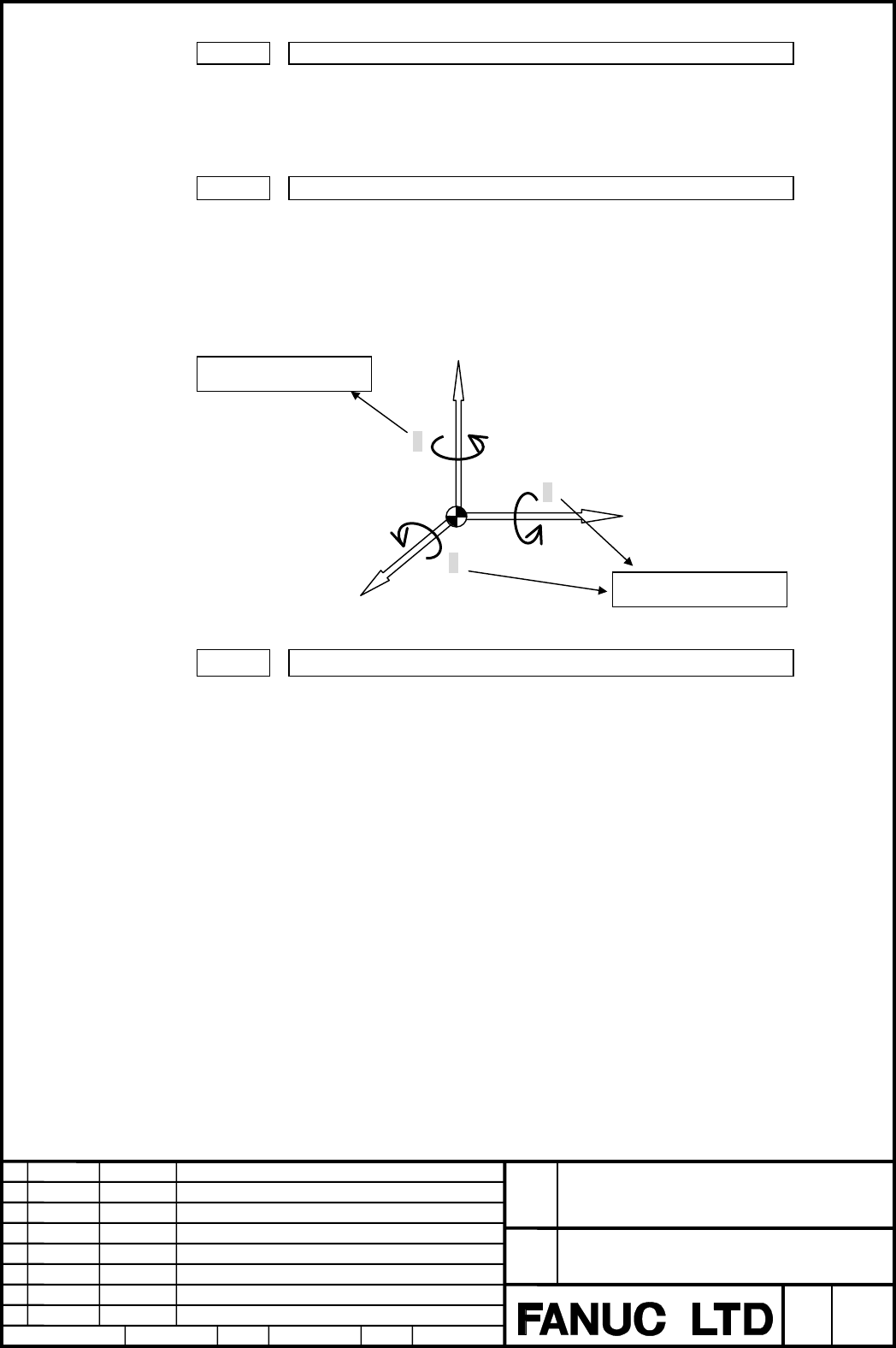

19682 The axis around which the 1
st
rotary axis rotates
[Data type] Byte
[Valid data range] 0 to 3
Set directions of axes of the 1
st
rotary axis.
1 : X axis around.
2 : Y axis around
3 : Z axis around
19684 Rotation direction of 1
st
rotary axis
[Data type] Byte
[Valid data range] 0 or 1
Set the direction that the machine rotates when the move command of the plus
direction is instructed to the 1
st
rotary axis.
0 : Direction of right screw (CCW)
1 : Direction of left screw (CW)
0 is set at the tool pivot, and one is set at the table axes usually.
Parameter No.19682
Y
Z
X
Parameter No.19682
2
3
1
