FANUC Series 16i /18i Additional Manual Page 106

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
106/190

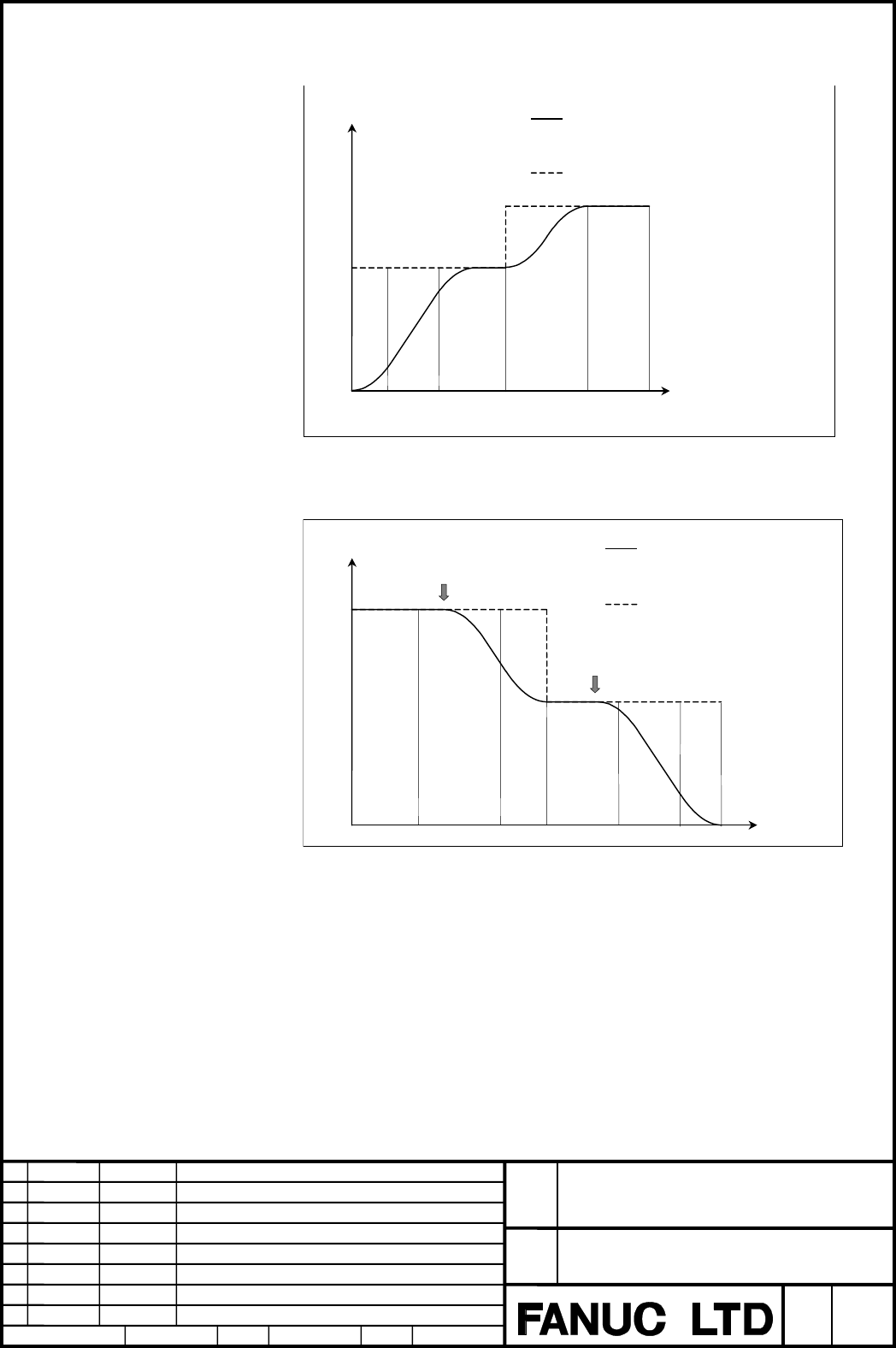

(3) Acceleration
Acceleration is performed so that the feedrate programmed for a block is
attained at the beginning of the block.
Speed control by bell-shaped
acceleration/deceleration
before interpolation
Programmed speed
N2N1
Feedrate
Time
N4N3 N5
(4) Deceleration
Deceleration starts in advance so that the feedrate programmed for a block is
attained at the beginning of the block.
Deceleration can be performed over several blocks.
Feedrate
Time
Deceleration start point
Deceleration start point
Speed control by
bell-shaped
acceleration/deceleration
before interpolation
Programmed speed
