FANUC Series 16i /18i Additional Manual Page 149

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
149/190
#7 #6 #5 #4 #3 #2 #1 #0
19696 WKP IA2 IA1
[Data type] Bit
IA1 A type of 1
st
rotary axis is:
0: Usual axis.
1: Hypothetical axis.
When you set this parameter to 1, please set 0 to a parameter No.19681 which
the axis number of rotary axis and set reasonable value to parameter
No.19682—19685.
IA2 A type of 2
nd
rotary axis is:
0: Usual axis.
1: Hypothetical axis.
When you set this parameter to 1, please set 0 to a parameter No.19686 which
the axis number of rotary axis and set reasonable value to parameter
No.19687
−19690.
WKP The programming coordinate :
0: Rotates with workpice rotation.
1: Does not rotate with workpice rotation.

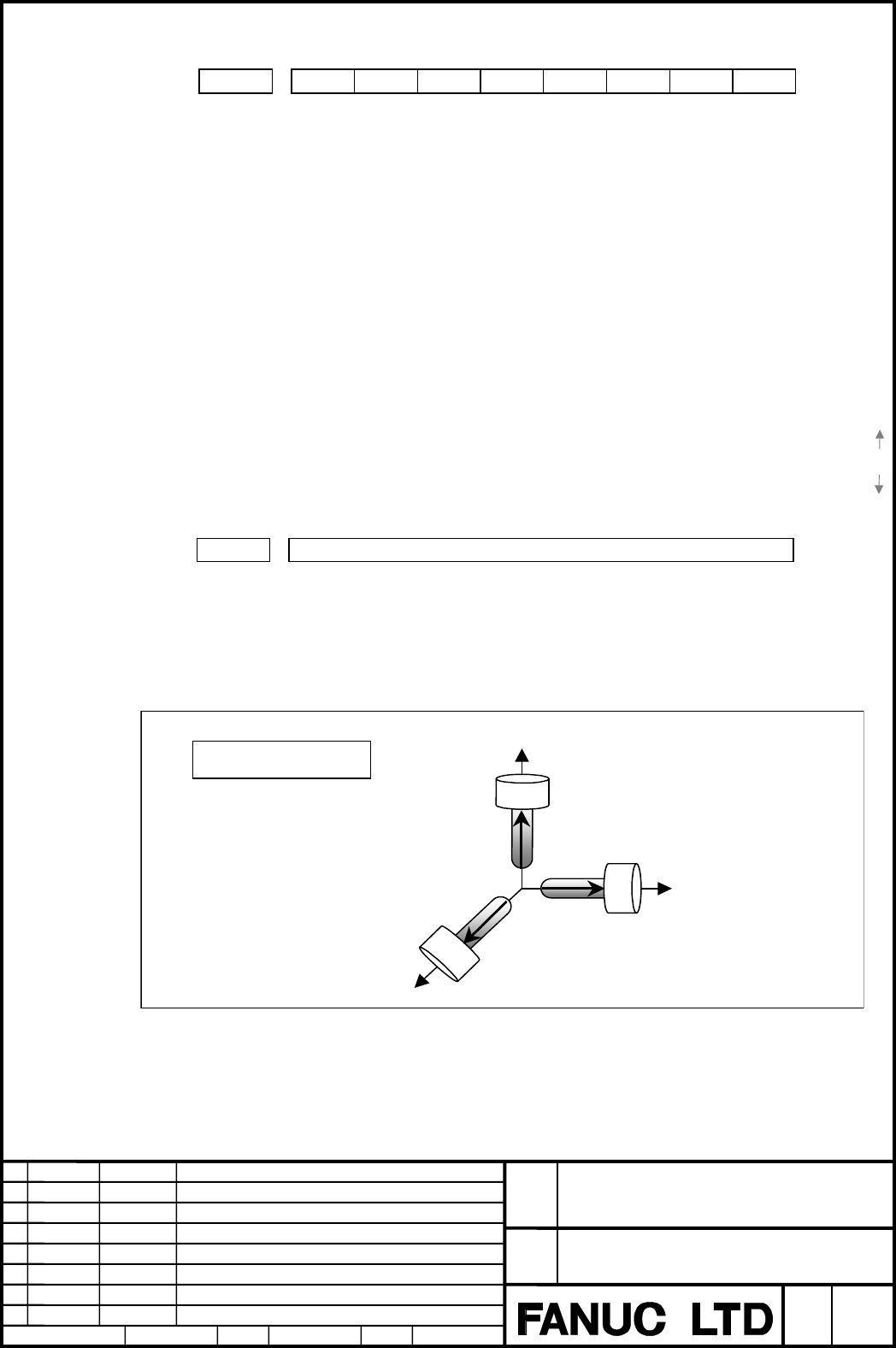

19697 Tool direction
[Data type] Byte
[Valid data range] 0 to 3
Set the tool direction when rotary axes that relate tool direction are all 0.
1: +X axis direction.
2:
+Y axis direction.
3:
+Z axis direction.
X
Tool axis direction
Y
Z
Tool axis direction :
+Z
Tool axis direction : +Y
Tool axis direction :
+X
(3)
