FANUC Series 16i /18i Additional Manual Page 104

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
104/190
2.22.2 Description
(1) Setting an acceleration
A permissible acceleration of each axis is set to the parameter 19510 and 8400.
When the bell-shaped acceleration/deceleration is used, acceleration change time
(B) (period of transition from constant speed state (A) to constant
acceleration/deceleration state (C)) is set in parameter 8416 (common to all axes).
In the constant acceleration/deceleration state (C), acceleration / deceleration is
performed with the maximum tangential acceleration not exceeding the
permissible acceleration of each axis specified in parameter 19510.
The acceleration change time specified in parameter 8416 is held constant,
regardless of the tangential acceleration.

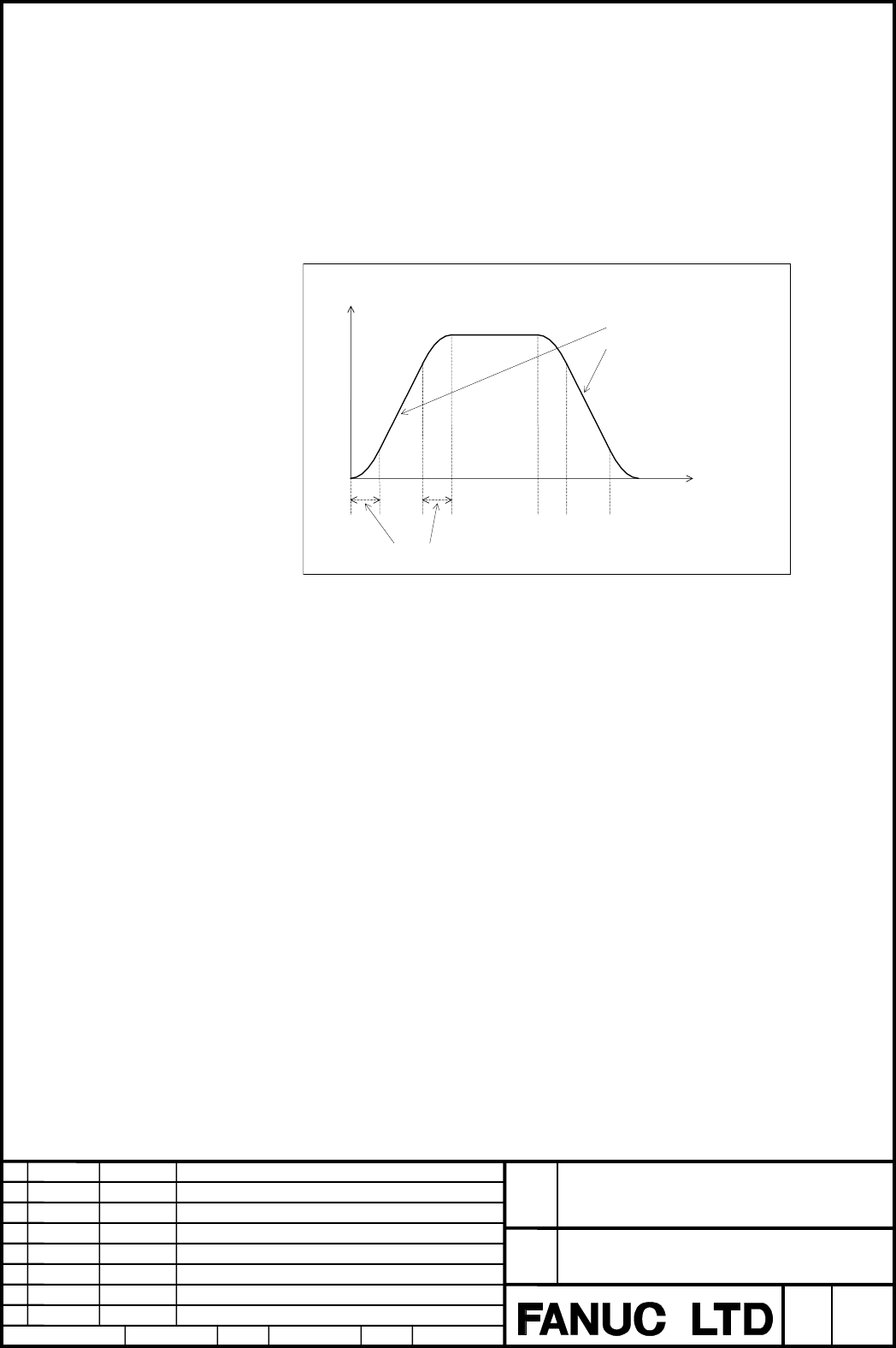

Tangential feedrate
A
n optimum gradient is automatically
calculated from the setting made in
parameter 19510.
Time set in parameter 8416
(A) (B) (B) (B) (B)(A) (A)(C) (C)
