FANUC Series 16i /18i Additional Manual Page 129

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
129/190

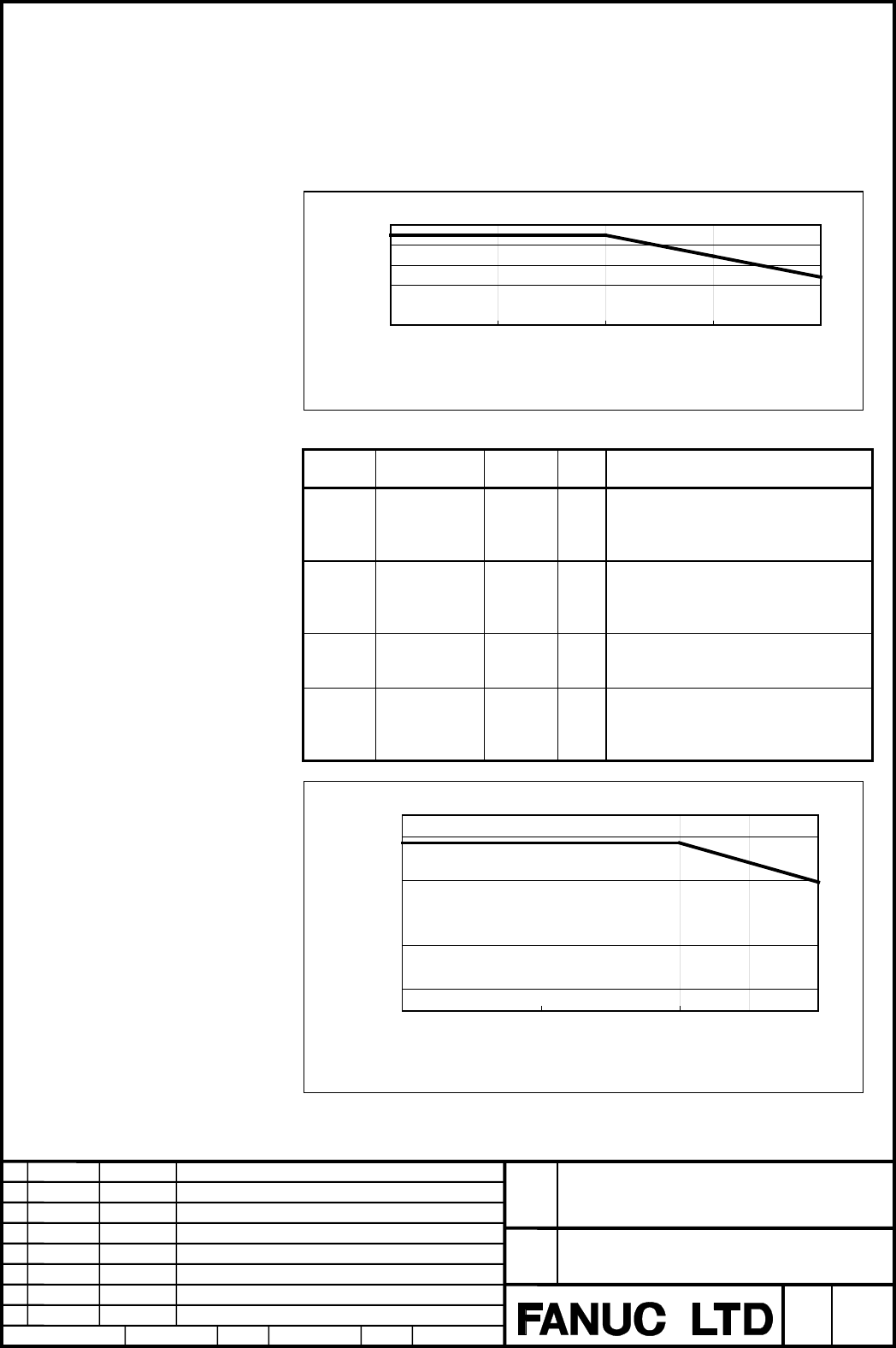

(4) In case of minus move (down) and deceleration
Because torque of Gravity works against the output torque of motor and torque
of friction works forward to the output torque of motor, torque for
acceleration/deceleration is as follows.
Maximum torque : 90(=100-20+10) (Nm) Speed: 0 to
2000 (min
-1
)
Torque at rapid traverse : 69(=79-20+10) (Nm) Speed: 3000 (min
-1
)
Minimum torque : 48(=58-20+10) (Nm) Speed: 4000
(min
-1
)
0
20
40
60
80
100
0 1000 2000 3000 4000
Speed(min
-1
)
Torque(Nm)
P0 P1
P5
Fig. 2.24(m) Torque for Acc/Dec in case of - move and deceleration
Parameter setting is as follows,
Parameter
No.
Setting Unit Remarks
Acceler
ation at
P0
19563 18712 0.01
%
At P0, 90(Nm) can be used for the
acceleration/deceleration, so set the
ratio 7717 (mm/sec
2
) to 4124
(mm/sec
2
). 1.8712 = 7717/4124
Acceler
ation at
P1
19564 18712 0.01
%
At P1, 90(Nm) can be used for the
acceleration/deceleration, so set the
ratio 7717 (mm/sec
2
) to 4124
(mm/sec
2
). 1.8712 = 7717/4124
Acceler
ation at
P2 - P4
19565-19567 0 0.01
%
0 is set because P2 to P4 are
skipped.
Acceler
ation at
P5
19568 14345 0.01
%
At P5, 69(Nm) can be used for the
acceleration/deceleration, so set the
ratio 5916 (mm/sec
2
) to 4124
(mm/sec
2
). 1.4345 = 5916/4124
P1
P0
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
0 16000 32000 48000
Speed (mm/min)
Acceleration (mm/sec
2
)
P5
Fig. 2.24(n) Acceleration pattern in case of - move and deceleration
