FANUC Series 16i /18i Additional Manual Page 173

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
173/190

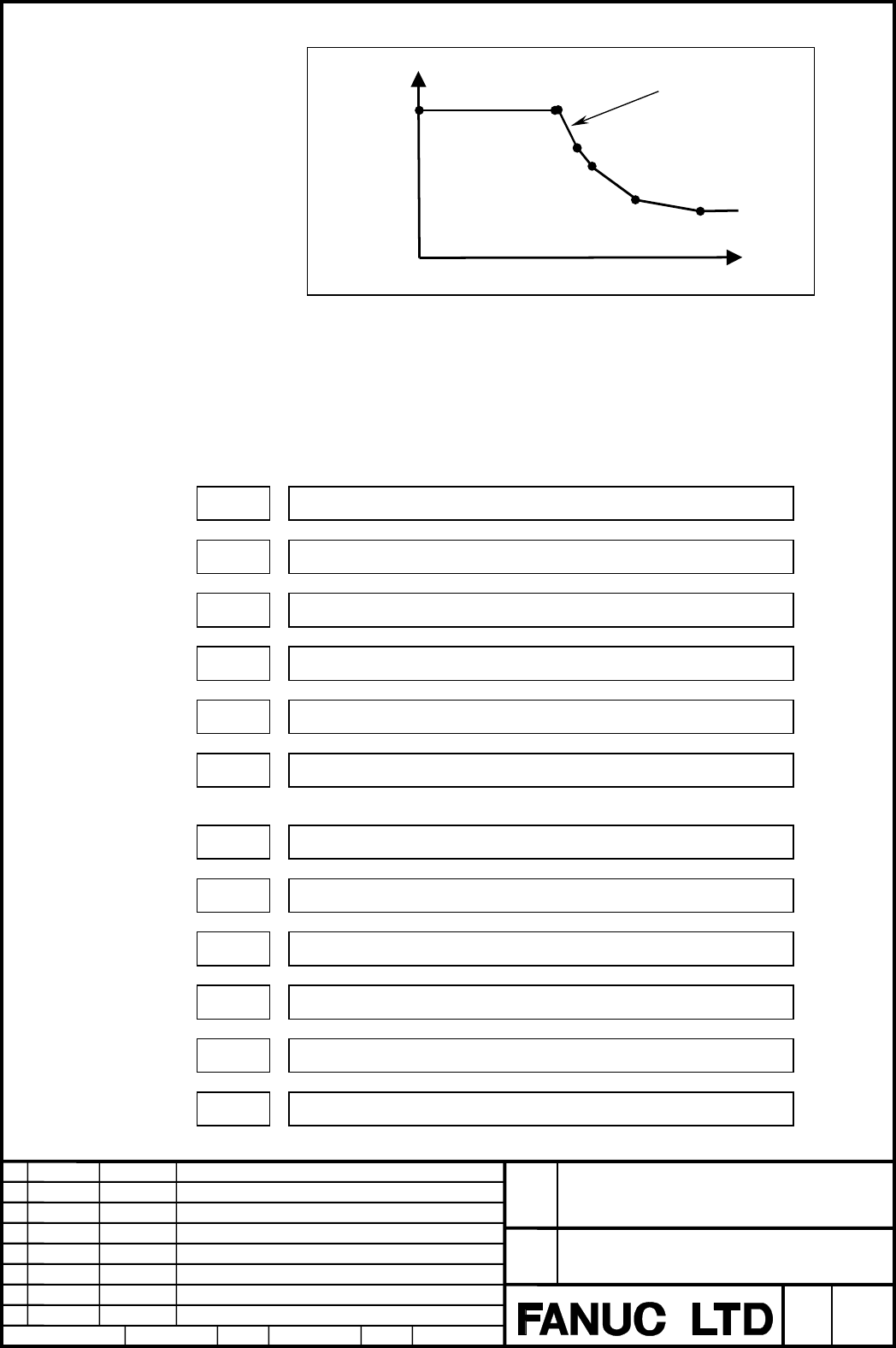

Setting acceleration pattern data
A
cceleration
S
p
eed
P0
P1
P2
P3
P4
P5
A
cceleration pattern
Set the speed and the acceleration at each of the acceleration setting points P0 to
P5 for each condition, acceleration and + move, deceleration and + move,
acceleration and – move , deceleration and – move., and for each axis,.
The line joining the acceleration setting points is regarded a acceleration
pattern.
Tangential acceleration is controlled not to exceed the acceleration for each axis.
19545
Optimum torque acceleration/deceleration (acceleration at P0 during
movement in + direction and acceleration)
19546
Optimum torque acceleration/deceleration (acceleration at P1 during
movement in + direction and acceleration)
19547
Optimum torque acceleration/deceleration (acceleration at P2 during
movement in + direction and acceleration)
19548
Optimum torque acceleration/deceleration (acceleration at P3 during
movement in + direction and acceleration)
19549
Optimum torque acceleration/deceleration (acceleration at P4 during
movement in + direction and acceleration)
19550
Optimum torque acceleration/deceleration (acceleration at P5 during
movement in + direction and acceleration)
19551
Optimum torque acceleration/deceleration (acceleration at P0 during
movement in - direction and acceleration)
19552
Optimum torque acceleration/deceleration (acceleration at P1 during
movement in - direction and acceleration)
19553
Optimum torque acceleration/deceleration (acceleration at P2 during
movement in - direction and acceleration)
19554
Optimum torque acceleration/deceleration (acceleration at P3 during
movement in - direction and acceleration)
19555
Optimum torque acceleration/deceleration (acceleration at P4 during
movement in - direction and acceleration)
19556
Optimum torque acceleration/deceleration (acceleration at P5 during
movement in - direction and acceleration)
