FANUC Series 16i /18i Additional Manual Page 94

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
94/190
(3) When cutting point compensation is not applied between blocks
When, as shown in Fig.2.21.3 (c) and Fig.2.21.3 (d), the cutting point
compensation value (V in the figures) is less than the value set in parameter
No.19534, one of the operations below is performed. (The operation that is
performed depends on the setting of bit 6 (CYS) of parameter No. 19530.
1) When bit 6 (CYS) of parameter No. 19530 is set to 1
Cutting point compensation is not applied between blocks N1 and N2,
but is applied when block N2 is executed.

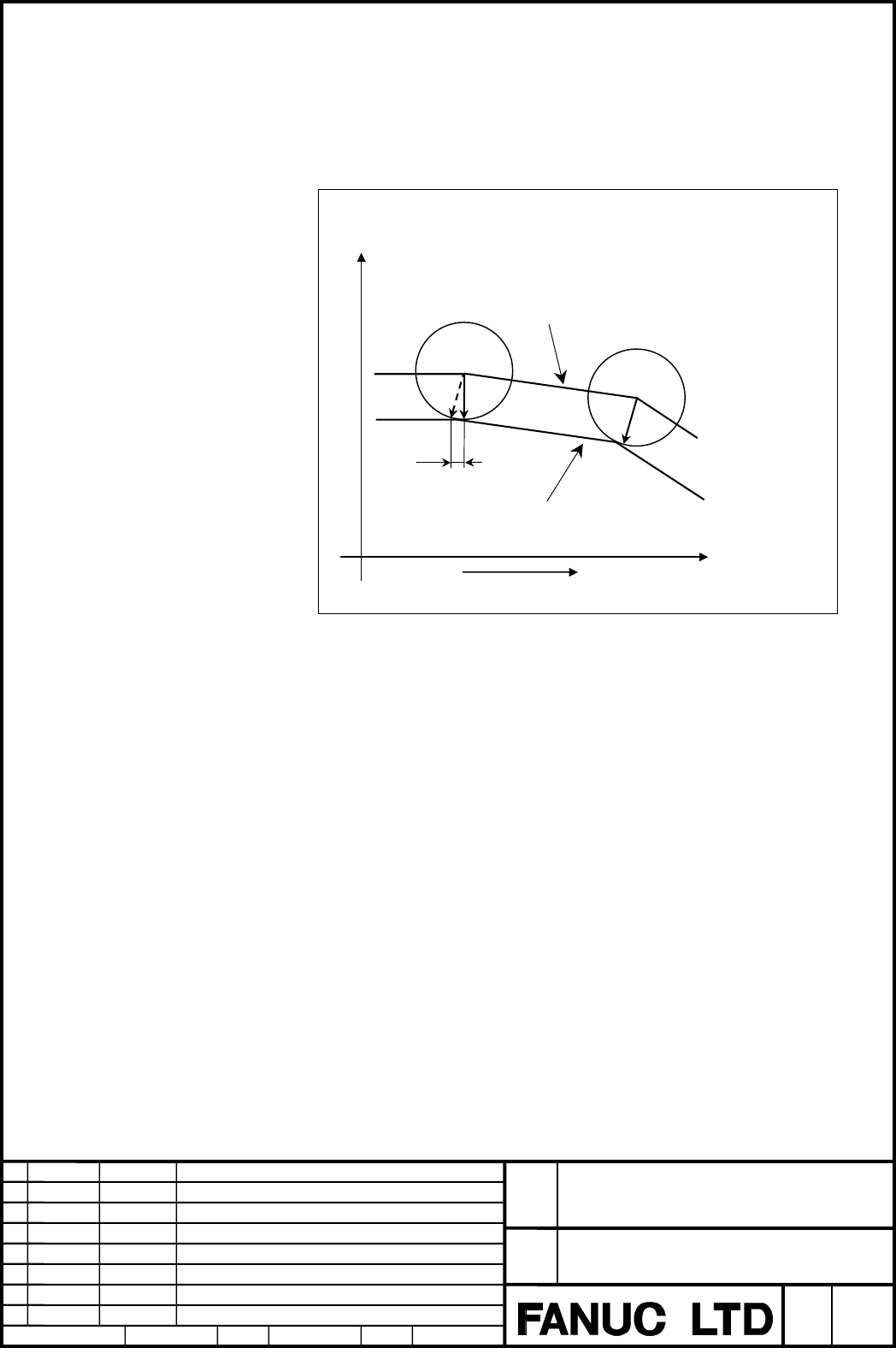

Fig.2.21.3 (c) When Bit 6 (CYS) of Parameter No. 19530 is Set to 1
Z-axis
C-axis on the
cylindrical surface
Y-axis
S2
C2
C2
V
Tool center path
Programmed path
V : C-axis component of C2 - C1
C1 : Cutting surface of block N1
C2 : Cutting surface after the end of block N1
S1
C1
N1
N2
N3
