FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
66/190
(3) To the movement of the next block for the vertical direction (Parameter
No.5003#1(SUV)=1)
As shown in the following figures, when G41.2, G42.2, or G40 is specified, a
block is inserted which moves the tool perpendicularly to the movement
direction specified in the next block by the distance of the tool radius.
Tool
G41.2
G40
:Tool center path
:Programmed tool path
Operation in linear interpolation
:Tool center path
:
Programmed tool path
Tool
G42.2
G40
Operation in circular interpolation

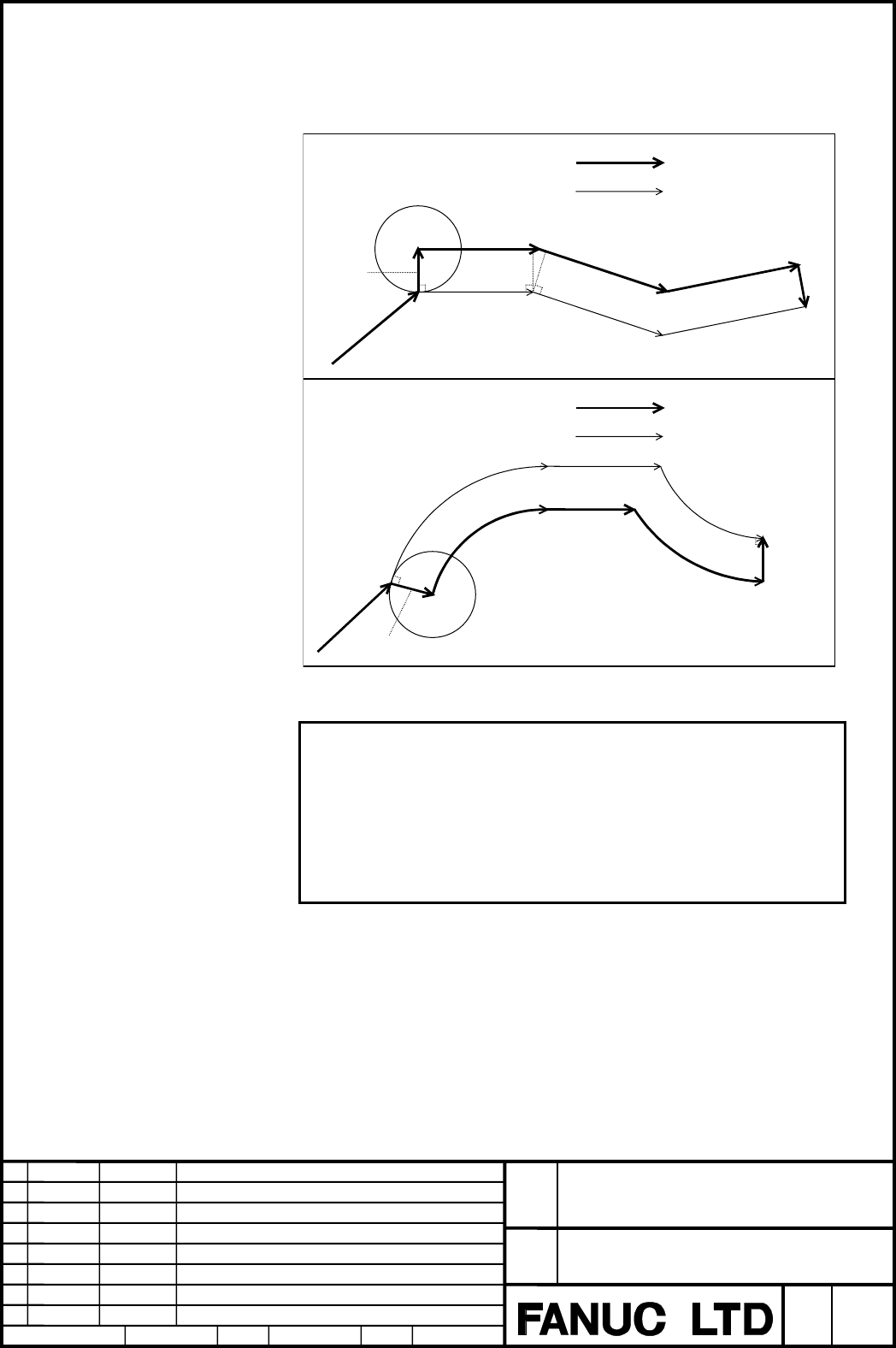

Fig. 2.17.3 (c) Operation at compensation start-up and cancellation
Note
If the movement of the next block for the vertical direction (parameter
SUV(No.5003#1)=1), the following conditions must be satisfied when tool
side compensation is started up or canceled :
1 The block containing G40, G41.2, or G42.2 must be executed in the G00
or G01 mode.
2 The block containing G40, G41.2, or G42.2 must have no move
command.
3 The block after the block containing G41.2 or G42.2 must contain a G00,
G01, G02, or G03 move command.
