• Movement along axes other than the 3-dimensional circular interpolation axis
In addition to the 3-dimensional circular interpolation axis (X/Y/Z), up to two
arbitrary axes (
α / β ) can be specified at a time. If α / β are omitted from the
first block (mid-point specification) and are specified only in the second block
(end point specification), the tool moves to the specified point along the
α / β axes
during movement from the mid-point of the arc to the end point. If
α / β are
omitted from the second block (end point specification) and are specified only in
the first block (mid-point specification), the tool moves to the specified point
along the
α / β axes during movement from the start point of the arc to the mid-
point.
• Incremental commands
With an incremental command, the position of the mid-point relative to the start
point must be specified in the first block, and the position of the end point
relative to the mid-point must be specified in the second block.
• Direction of rotation
The direction of rotation cannot be specified. The movement is the same
regardless of whether G02.4 or G03.4 is specified.
• Single block
When operation is performed using a single block, one cycle start causes
movement from the start point to the end point. A single-block stop is not
performed between the first block (mid-point specification) and the second block
(end point specification).
• Start point assumed if 3-dimensional circular interpolations are specified consecutively
If 3-dimensional circular interpolations are specified consecutively, the end point
in one interpolation is assumed to be the start point in the next interpolation.
• Velocity commands
Velocity commands specify the tangent velocity along an arc in the 3-
dimensional space.
2.18.4 Limitation
• Cases in which linear interpolation is performed
- If the start point, mid-point, and end-point are on the same line, linear
interpolation is performed.
- If the start point coincides with the mid-point, the mid-point coincides with the
end point, or the end point coincides with the start point, linear interpolation
is performed up to the end point.
- If the start point, mid-point, and end-point are on the same line and the end
point lies between the start point and the mid-point, the tool first moves with
linear interpolation from the start point to the mid-point, then returns from
the mid-point to the end point with linear interpolation. Thus, the tool always
passes through the specified point.

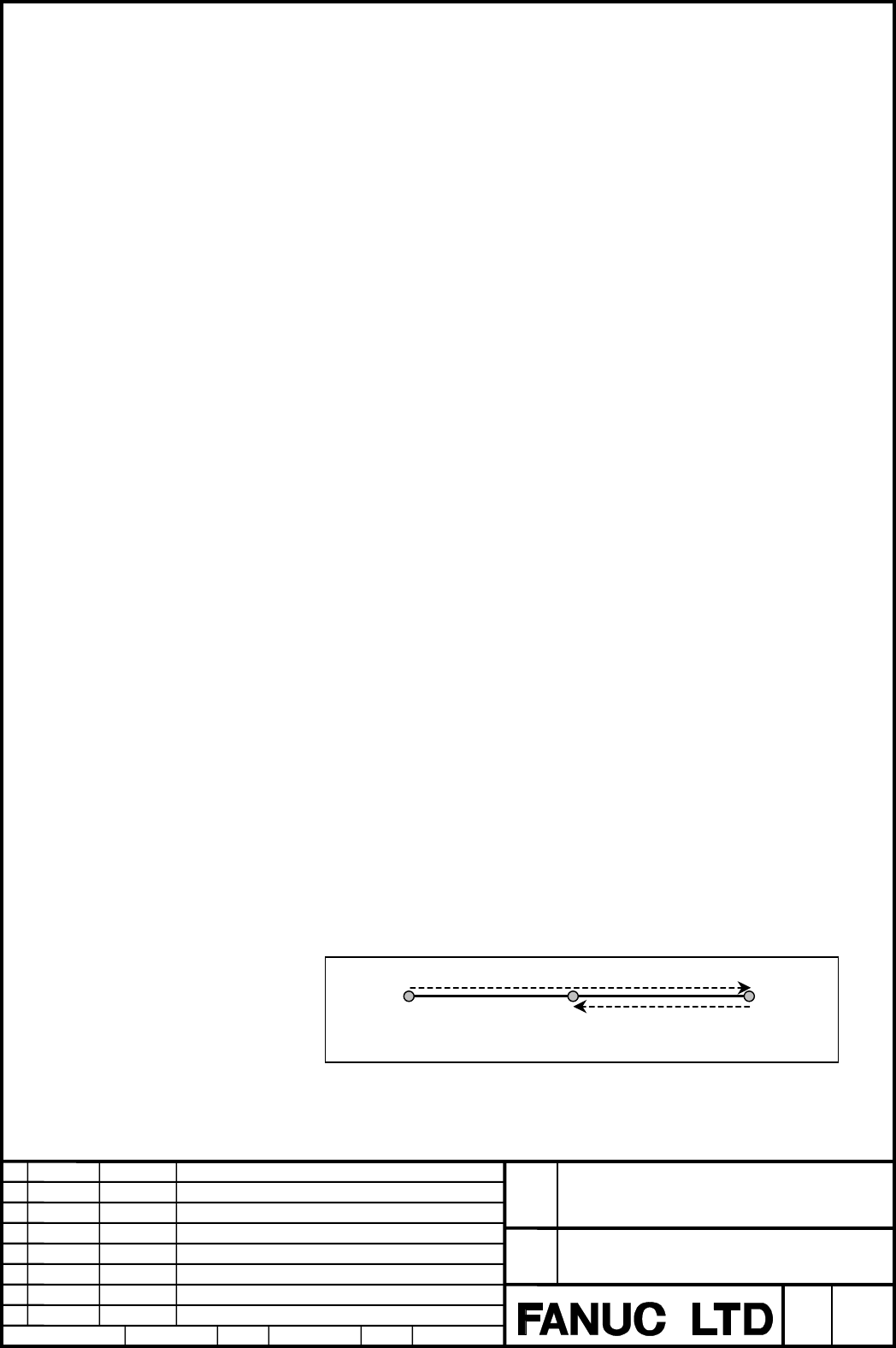

Start point Mid-pointEnd
p
oint
