FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
95/190
2) When bit 6 (CYS) of parameter No. 19530 is set to 0
Cutting point compensation is not performed between blocks N1 and N2.
Whether to apply cutting point compensation between block N2 and N3
is determined by taking the cutting point compensation value between
blocks N2 and N3 (V1 in the figure) into consideration.

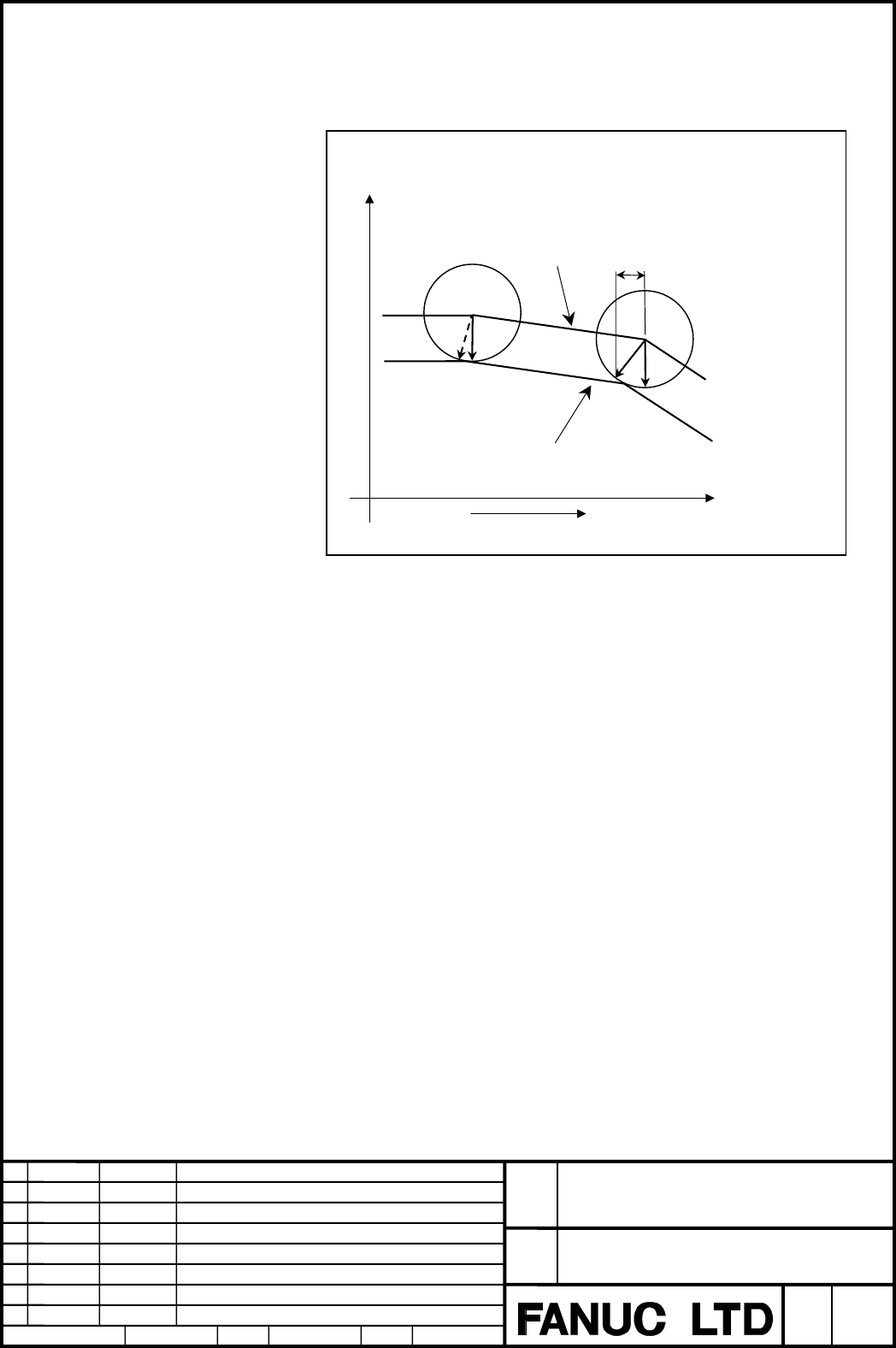

Fig.2.21.3 (d) When Bit 6 (CYS) of Parameter No. 19530 is 0
Z-axis
C-axis on the
cylindrical surface
Y-axis
S2
C1
C2
V
Tool center path
Programmed path
V : C-axis component of C2 - C1
C1 : Cutting surface of blocks N1 and N2
C2 : Cutting surface at the end of block N3
S1
C1
N1
N2
N3
