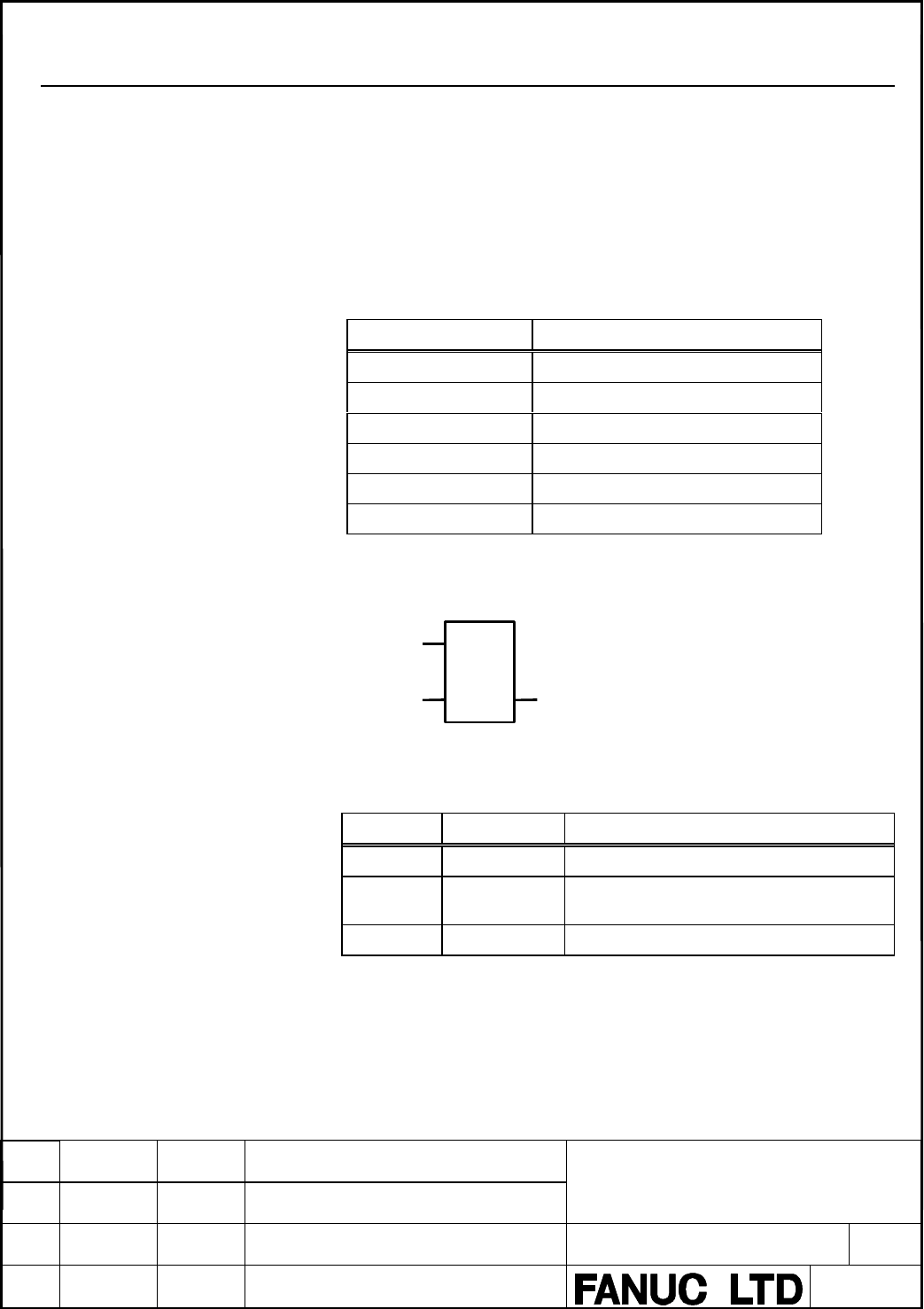

3.10.5 PMC_EVPAR_(type)/PMC_ODPAR_(type)

Function

When EN is set to ON and is receiving the power flow,

PMC_EVPAR/PMC_ODPAR check the even/odd parity of input

parameter IN and, when the result is true, set output parameter Q to

ON.

PMC_EVPAR_(type)/PMC_ODPAR_(type) instructions

Name Explanation

PMC_EVPAR_BYTE Check the even parity of BYTE data

PMC_EVPAR_WORD Check the even parity of WORD data

PMC_EVPAR_DWORD Check the even parity of DWORD data

PMC_ODPAR_BYTE Check the odd parity of BYTE data

PMC_ODPAR_WORD Check the odd parity of WORD data

PMC_ODPAR_DWORD Check the odd parity of DWORD data

Format

PMC

EVPAR

(type)

IN Q

(EN)

??????? ???????

Parameters

Parameter Data type Meaning

EN BOOL Execution of parity check

BYTE, WORD,

DWORD

Input data

Q BOOL Result of check
