Fanuc PMC-Model SD7 Programming Manual Additional Manual Page 243

Additional Manual

Page of 317

/ 317

FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

242/

316

TITLE

DRAW.NO.

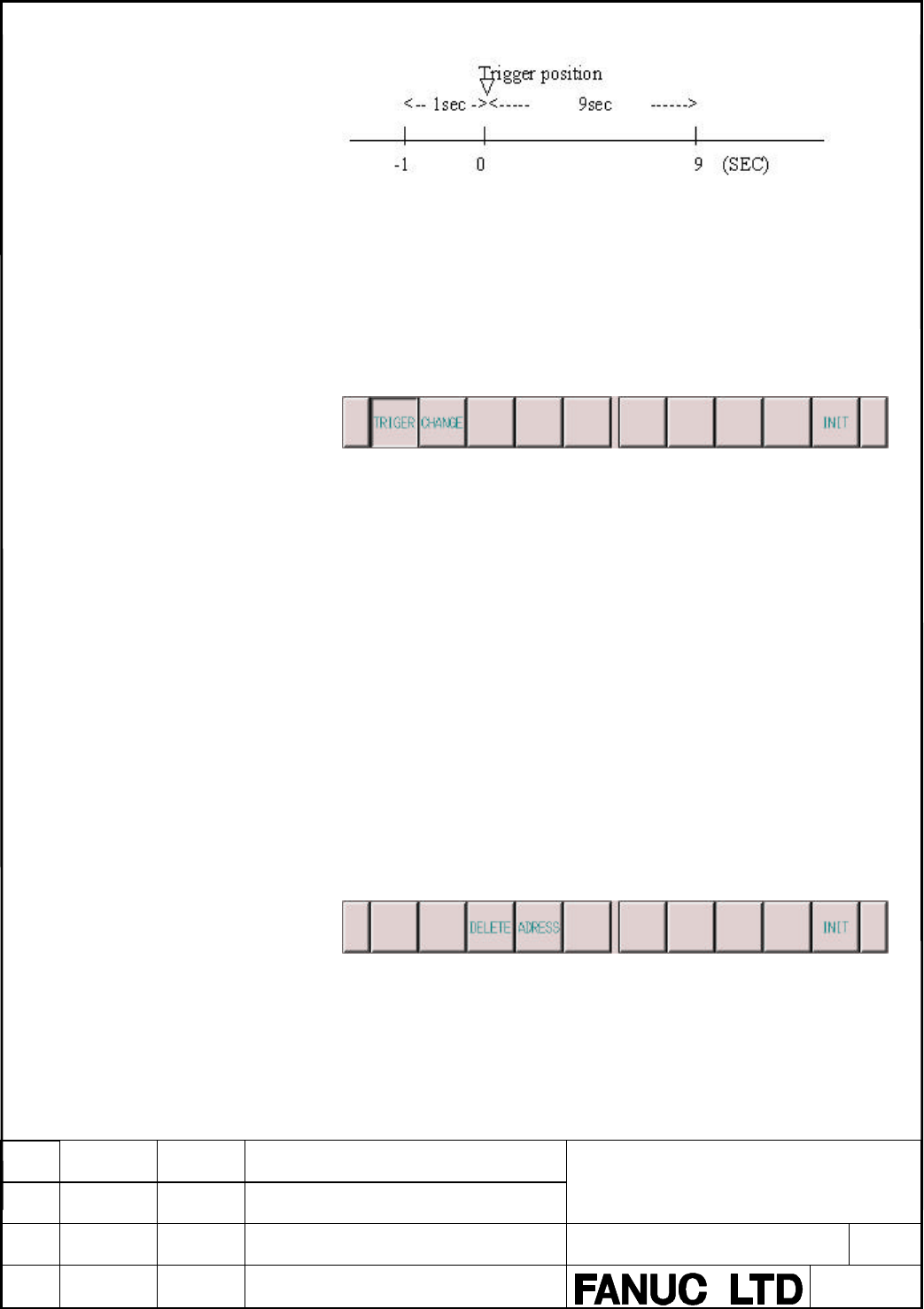

The graph is displayed on the right of the edit box. The edge of the left hand

is as 0% and the edge of the right hand is as 100%. The position indicated

by the input value is displayed as a gauge.

- SAMPLING CONDITION

When “SIGNAL TRANSITION” is set on “TRACE MODE”, this parameter

is enabled. Select one by cursor key or soft key.

Soft keys display when the cursor is put on “SAMPLING CONDITION”.

Explanation:

TRIGER Samples the status of specified signals when the specified

sampling condition is on.

CHANGE Samples the status of specified signals when the signals

change

The address of the signals that should be sampled is set on Parameter Setting

screen page2.

- SAMPLING CONDITION TRIGGER ADDRESS

When “SIGNAL TRANSITION” is set on “TRACE MODE”, and

“TRIGGER” is set on “SAMPLING CONDITION”, this parameter is

enabled. Input signal address or symbol name as sampling trigger.

Only bit address or corresponding symbol can be inputted. Byte address

cannot be inputted.

Soft keys display when the cursor is put on “SAMPLING CONDITION

TRIGGER ADDRESS”.

The contents of the soft keys are same as “STOP CONDITION TRIGGER

ADDRESS”.

- SAMPLING CONDITION TRIGGER MODE

When “SIGNAL TRANSITION” is set on “TRACE MODE”, and
