Fanuc PMC-Model SD7 Programming Manual Additional Manual Page 268

Additional Manual
FANUC PMC-MODEL SD7
Programming Manual
01 01.11.26
Hanaoka
New
A-78550E
EDIT DATE DESIG.
DESCRIPTION
267/
316
TITLE
DRAW.NO.

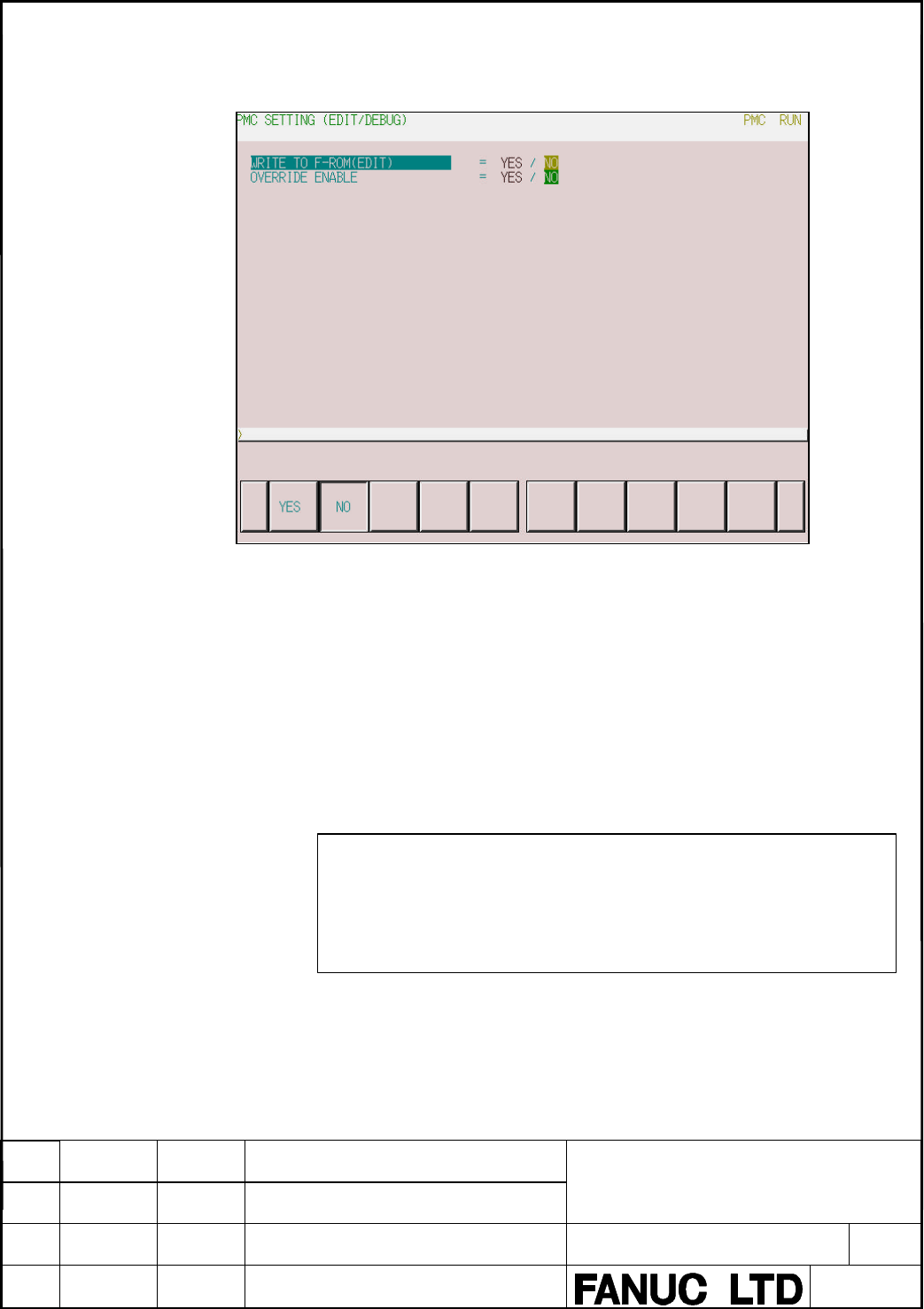

5.4.4.2 Screen for Displaying the Setting Data Related to Editing and
Debugging (EDTDBG)
- WRITE TO FROM (EDIT) (SK17)
NO (0): The sequence program is not automatically written to F-ROM
after reading in I/O screen.
YES (1): The sequence program is automatically written to F-ROM after
reading in I/O screen.
- OVERRIDE ENABLE (SK49)
NO (0): The override mode becomes disabled.
YES (1): The override mode becomes enabled.
This screen is displayed in the case of “PROGRAMMERENABLE=YES”
or “RAM WRITE ENABLE=YES”.
Caution
This parameter is effective when turning on the power supply after setting.
Turn on the power supply if setting this parameter.
Set this parameter “NO” when the machine is shipped.
(%SK17)
(%SK49)
