The 1st level sequence part operates every 8 ms (high-speed sequential

operation).

If the 1st level sequence part is long, the total operating time, including the

2nd level sequence part, is extended. Therefore the 1st level sequence part

must be programmed to be processed in as short time as possible.

The 2nd level sequence part operates every 8×n ms. Here n is a dividing

number for the 2nd level sequence part.

The 2nd level sequence part is divided automatically when the sequence

program is executed. The time for one cycle of the sequence program is

displayed on the TITLE screen.

(1) Division of the 2nd level sequence part

The 2nd level sequence part must be divided in order to execute the 1st

level sequence part. For example a sequence program is executed in the

following sequence when the dividing number is n. (See Fig. 2.1)

After the last division of 2nd level sequence part (division n) is executed,

the sequence program is executed again from the beginning. Thus, when

the dividing number is n, the cycle of execution is 8msec×n.

The 1st level sequence operates every 8msec, and the 2nd level sequence

every 8×n msec. If the steps of the 1st level sequence is increased, the

steps of the 2nd level sequence operating within 8msec becomes less,

thereby increasing the dividing number and making the processing time

longer. Therefore, it is desirable to program so as to reduce the 1st level

sequence to a minimum.

In the PMC-SD7, 7msec of 8msec is assigned to execution of the 1st and

2nd level sequences.

(2) 1st level sequence part

Only short-width pulse signals are processed. These signals include

emergency stop, over-travel of each axis, reference point return

1st level

2nd level

System etc

8ms 8ms 8ms

7ms 7ms 7ms

Division 1

Division n

Division 2

8ms

Division 1

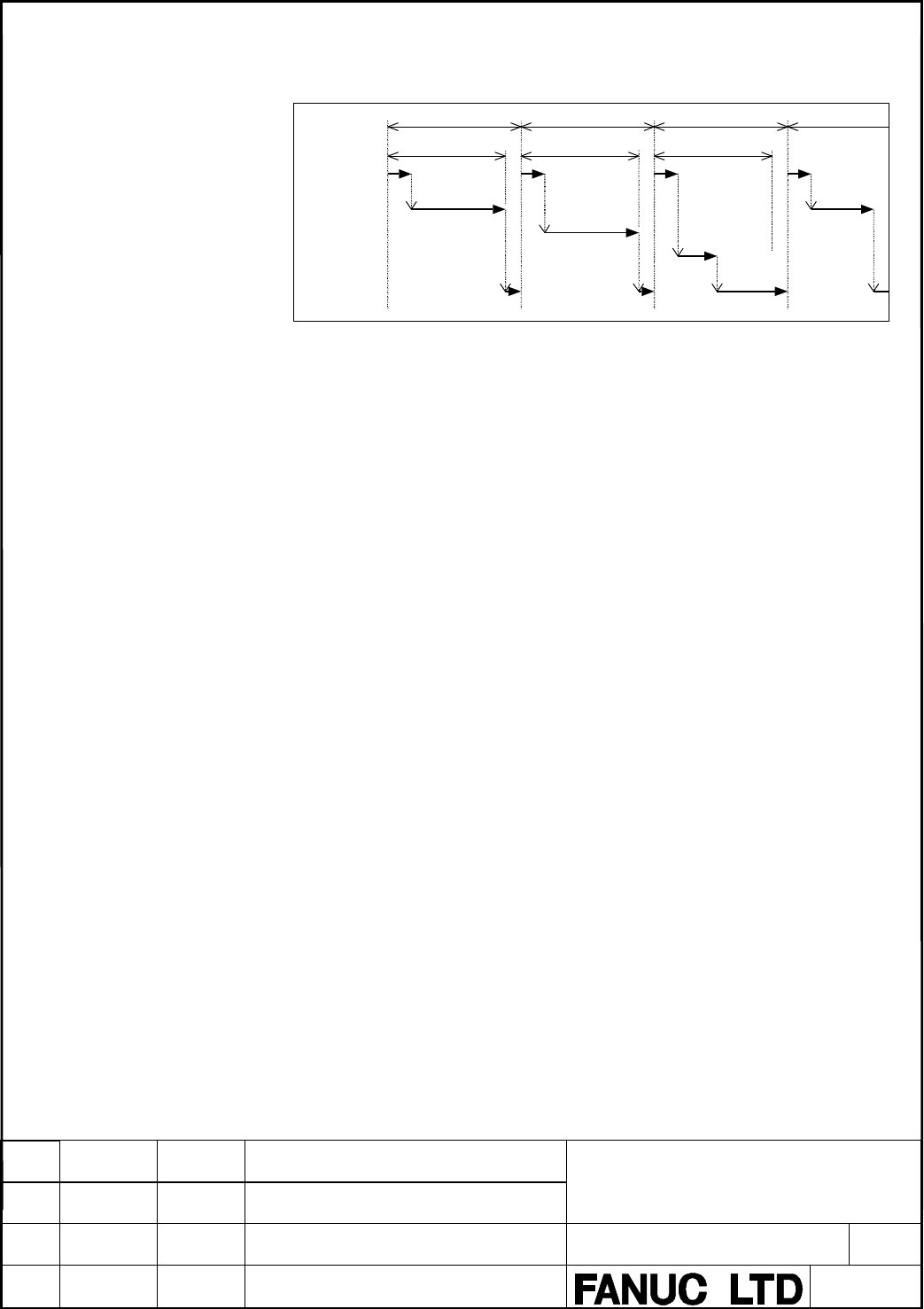

Fig. 2.1 About priority of execution.
