“TRIGGER” is set on “SAMPLING CONDITION”, this parameter is

enabled. Input trigger mode that determines the condition of specified

trigger.

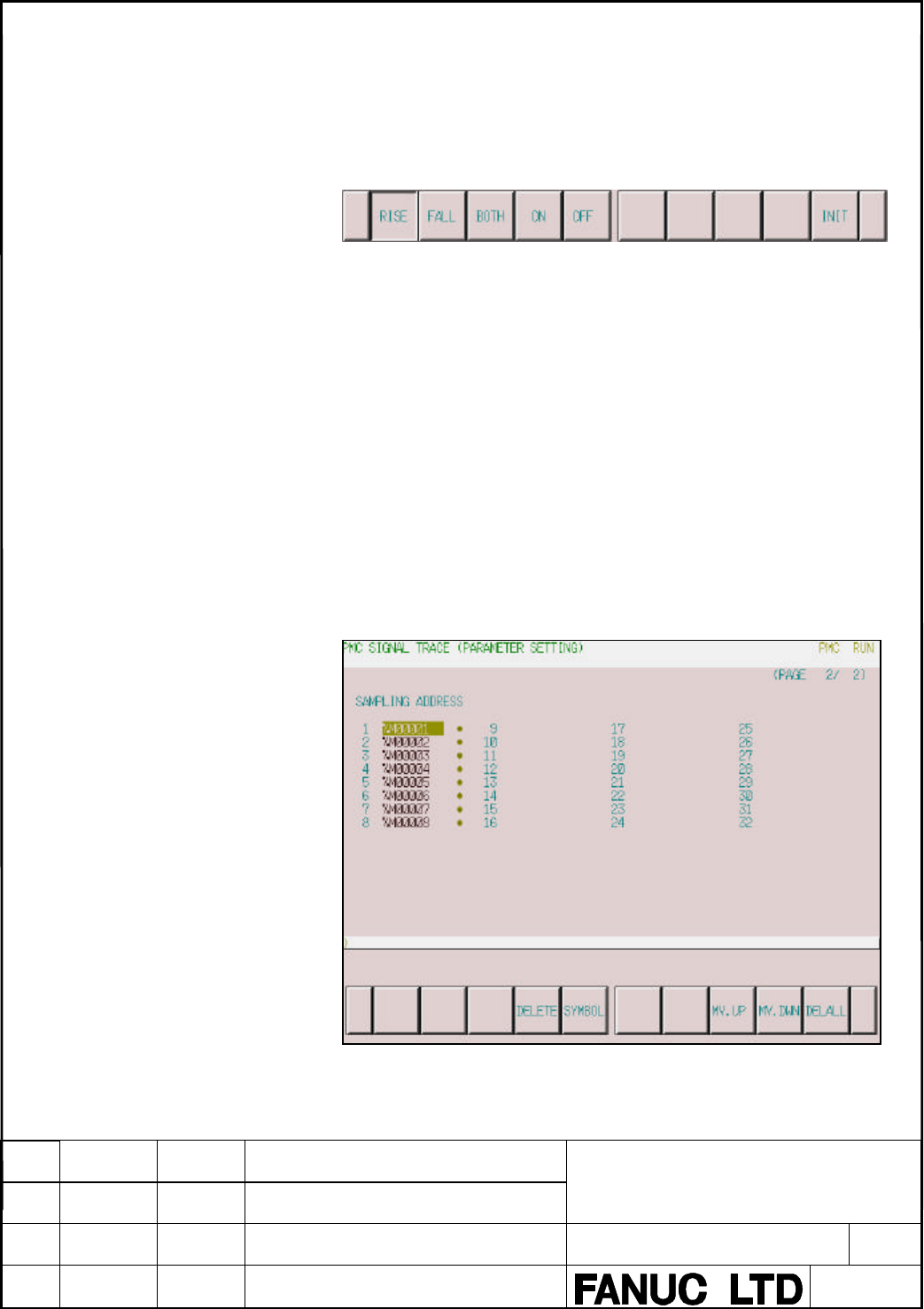

Soft keys display when the cursor is put on “SAMPLING CONDITION

TRIGGER MODE”.

Explanation:

RISE Samples the status of specified signals by rising up of the

trigger signal.

FALL Samples the status of specified signals by falling down of the

trigger signal.

BOTH Samples the status of specified signals by rising up or falling

down of the trigger signal.

ON Samples the status of specified signals during the trigger signal

is on.

OFF Samples the status of specified signals during the trigger signal

is off.

- SAMPLING ADDRESS

In page 2 of Parameter Setting screen, you can set the addresses or symbols

that should be sampled.

Move the cursor into edit box and input PMC signal address or symbol.
