2.3.3 Message display reference
Function
PMC can display messages on the CNC screen using the CNC external
operator and alarm message functions. An external alarm message can also
be specified with its message number to place the CNC in the alarm state.
To use this function, create message data using a programmer (FAPT
LADDER-IIIC) and store it in the message data table.
When a message display request memory bit (reference%MAxx) is turned
on using the sequence program, the corresponding message in the message
data table is displayed.
Message display request memory (RAM) Message data table
(written into ROM)
%MA1
%MA2
:
:
:
:
:
:
:
:
%MA2000
≈ ≈
%MA1
%MA2
:
:
:
:
:
:
:
Message data corresponding to
reference%MA1
Message data corresponding to
reference%MA2
Message data corresponding to
reference%MA2000
≈ ≈

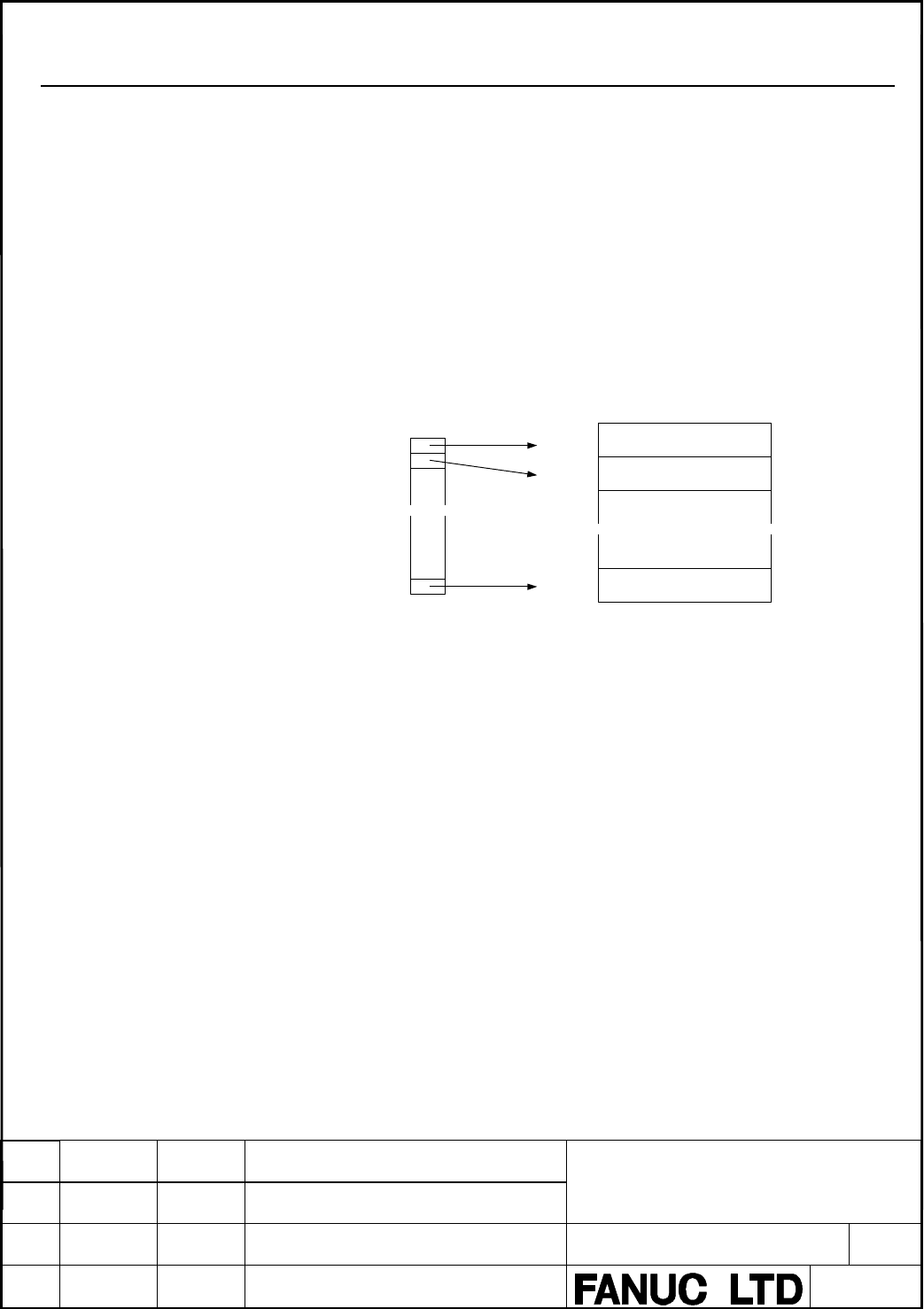

Message display request memory and message data table
Message Display Request Memory
Message display request memory consists of 2000 bits corresponding to
reference%MA1 to reference%MA2000. Each bit corresponds to one
message data item. The entire memory indicates up to 2000 message
display requests. To display a message on the CNC screen, set the
corresponding display request memory bit to "1". To erase the message
from the screen, set the corresponding display request memory bit to "0".
Message Data Table
This table is used to store message data corresponding to message display
request memory bits. It is written into program memory together with the
sequence program.
Number of Characters Consisting of a Message
Messages are displayed on the NC alarm and operator message screens. The
number of characters that can be displayed on the screen is 32 (32 bytes) for
