3.5.9 BIT_SEQ

Function

The Bit Sequencer (BITSEQ) function performs a bit sequence shift

through a series of contiguous bits. The operation of BITSEQ depends

on the value of the reset input (R) and both the current value and

previous value of the enabling power flow input (EN):

The reset input (R) overrides the enabling power flow (EN) and always

resets the sequencer. When R is active, the current step number is set to

the value of the optional N operand. If the user did not specify N, the

step number is set to 1. All of the bits in the bit sequencer, ST, are set to

0, except for the bit pointed to by the current step, which is set to 1.

When EN is active and Reset is not active and the previous EN was

OFF, the bit pointed to by the current step number is cleared. The

current step number is incremented or decremented, based on the

direction (DIR) operand. Then the bit pointed to by the new step

number is set to 1.

When the step number is being incremented and it goes outside the

range of (1 <=step number<=LEN operand), it is set back to 1.

When the step number is being decremented and it goes outside the

range of (1<=step number<=LEN operand), it is set to LEN.

When BIT_POS finds a bit that has been set to 1, it sets Q to ON.

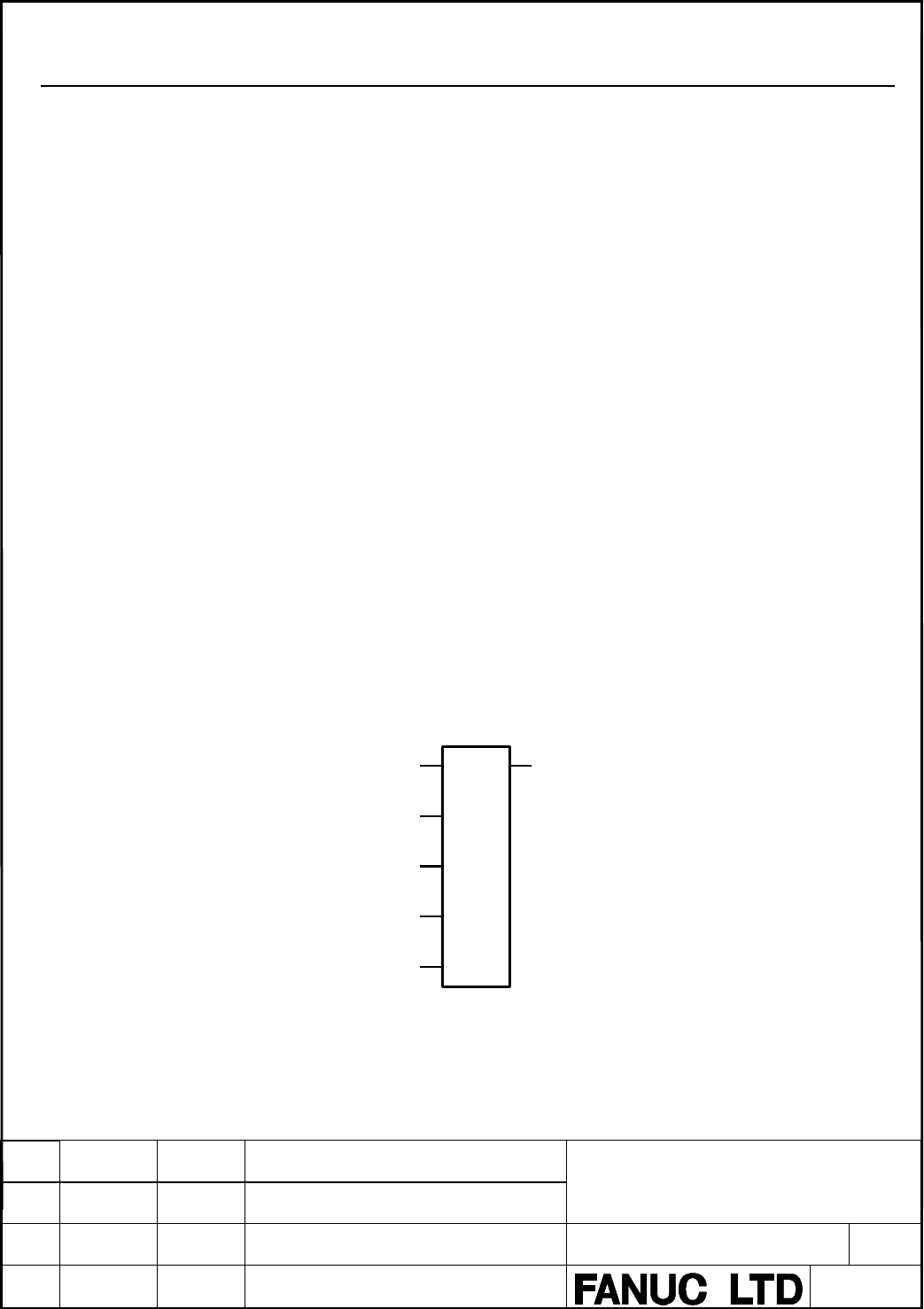

Format

BIT

SEQ

DIR

(EN) (ENO)

???????

ST???????

LEN

ADRS
