FANUC POWER MATE 0 Operators manual Page 116

Operators manual

Page of 492

/ 492

PROGRAMMING

13. COMPENSATION FUNCTION

B–63444EN/01

102

The tool path is offset by the X and Z offset values for the programmed

path. The offset distance corresponding to the number specified by the

T code is added to or subtracted from the and position of each

programmed block.

This block contains the offset

command with T code

Tool path after offset

Programmed path

Compensation by offset X, Z (offset vector)

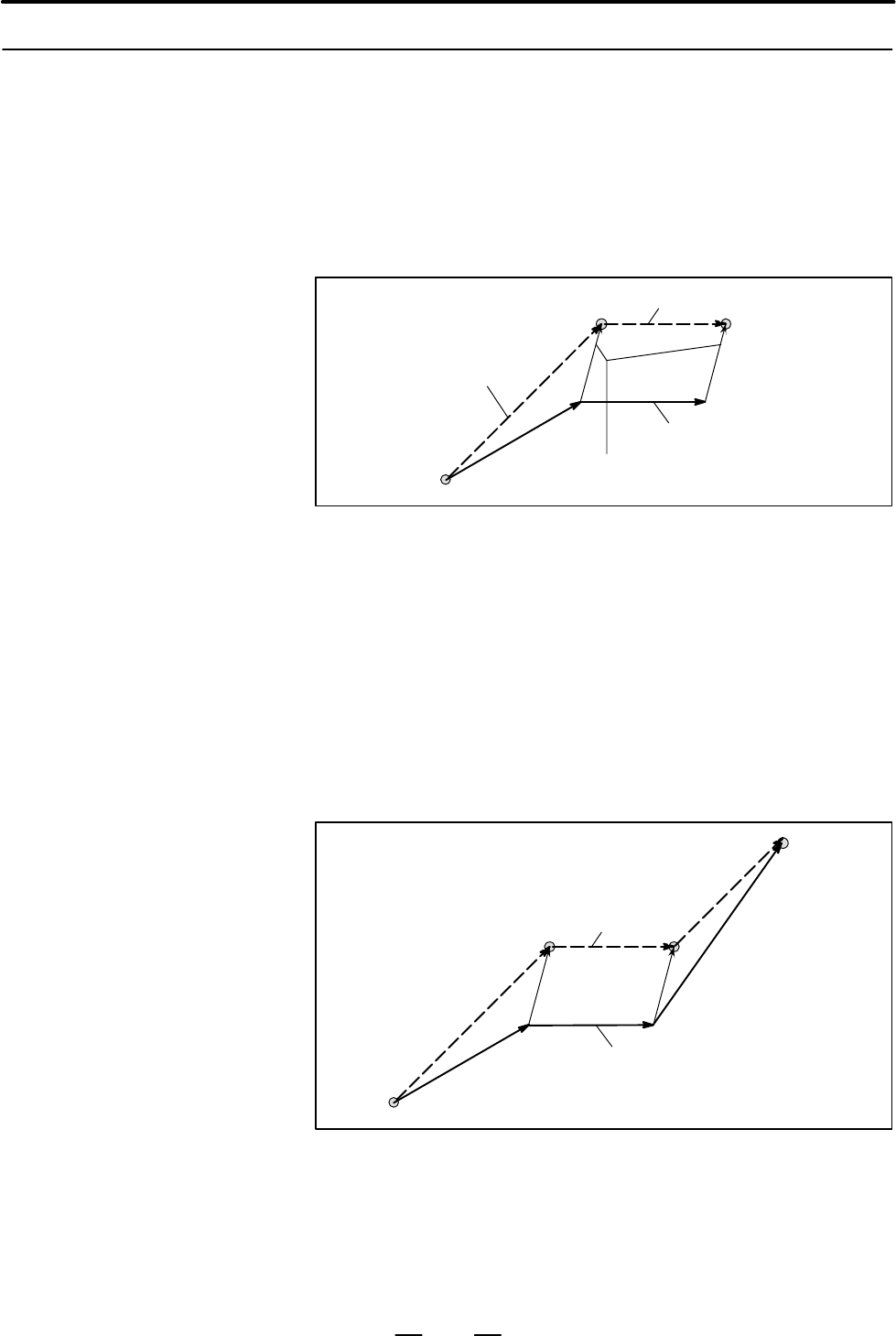

Fig.13.1.4 (a) Movement of offset (1)

In Fig. 13.1.4 (a), the vector with offset X and Z is called the offset vector.

Compensation is the same as the offset vector.

Offset is cancelled when T code offset number 0 is selected. At the end

of the cancelled block, the offset vector becomes 0.

N1 X50.0 Z100.0 T0202 ; Creates the offset vector corresponding

to offset number 02

N2 X200.0 ;

N3 X100.0 Z250.0 T0200 ;Specifying offset number 0 deletes the

offset vector.

Tool path after offset

Programmed path

Fig.13.1.4 (b) Movement of offset (2)

When the power is first turned on , and the reset key on the MDI units is

pushed or the reset signal is input to the CNC from the machine tool, the

offset is cancelled.

Parameter LVK (No.5003#6) can be set so that offset will not be cancelled

by pressing the reset key or by reset input.

13.1.4

Offset

Explanations

D Tool offset

D Offset vector

D Offset cancel
