FANUC POWER MATE 0 Operators manual Page 472

Operators manual

Page of 492

/ 492

FANUC Power Mate 0 Operator’s Manual

ADDITION OF FUNCTIONS TO SIMPLIFY

PROGRAMMING

B-63444EN/01-3

23 / 28

EDIT

DATE DESIG. DESCRIPTION

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

The following program generates the cutting path shown in Fig.

13.2.6. This is equivalent to G74 except that X is replaced by Z. Chip

breaking is possible in this cycle, and grooving in X axis and peck

drilling in X axis (in this case, Z, W, and Q are omitted) are possible.

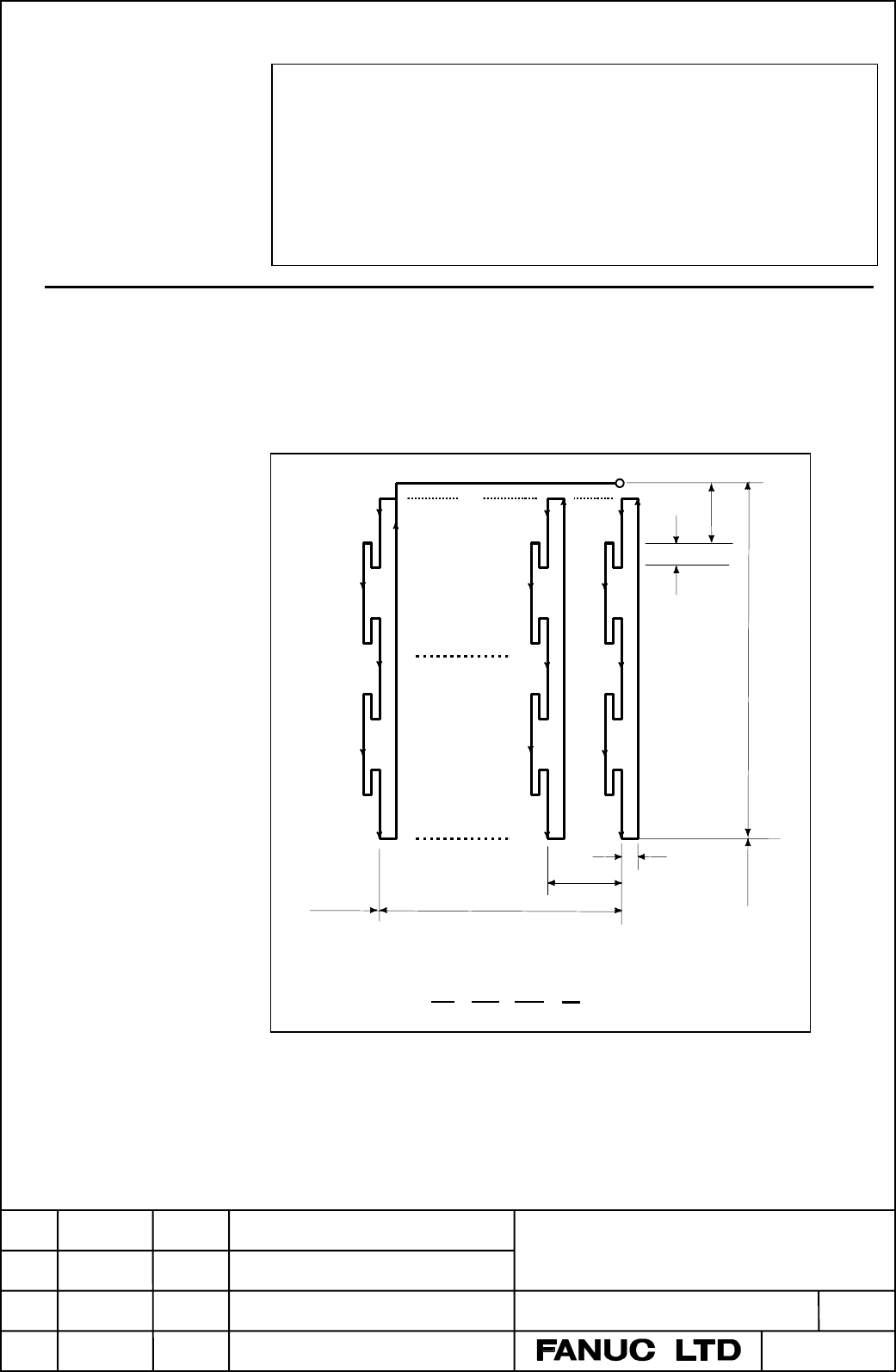

Fig. 13.2.6

Cutting Path in Outer Diameter / Internal Diameter Drilling Cycle

Both G74 and G75 are used for grooving and drilling, and permit the

tool to relief automatically. Four symmetrical patterns are

considered, respectively.

NOTE

1. While both e and ∆d are specified by address R, the meanings of

them are determined by the present of address X (U). When X(U)

is specified, ∆d is designated.

2. The cycle machining is performed by G74 command with X (U)

specification.

13.2.6

Outer Diameter /

Internal Diameter

Drilling Cycle (G75)

∆d

(R)

(F)

∆i

∆k

(F)

(R)

(F)

(R)

(F)

(R)

U/2

(R)

G75R (e) ;

•

G75X(U)_ Z(W)_ P(

•

i) Q(

•

k) R(

•

d) F (f )

•

(R)...Rapid traverse

(F)...Cutting feed
