FANUC POWER MATE 0 Operators manual Page 160

Operators manual

Page of 492

/ 492

PROGRAMMING

13. COMPENSATION FUNCTION

B–63444EN/01

146

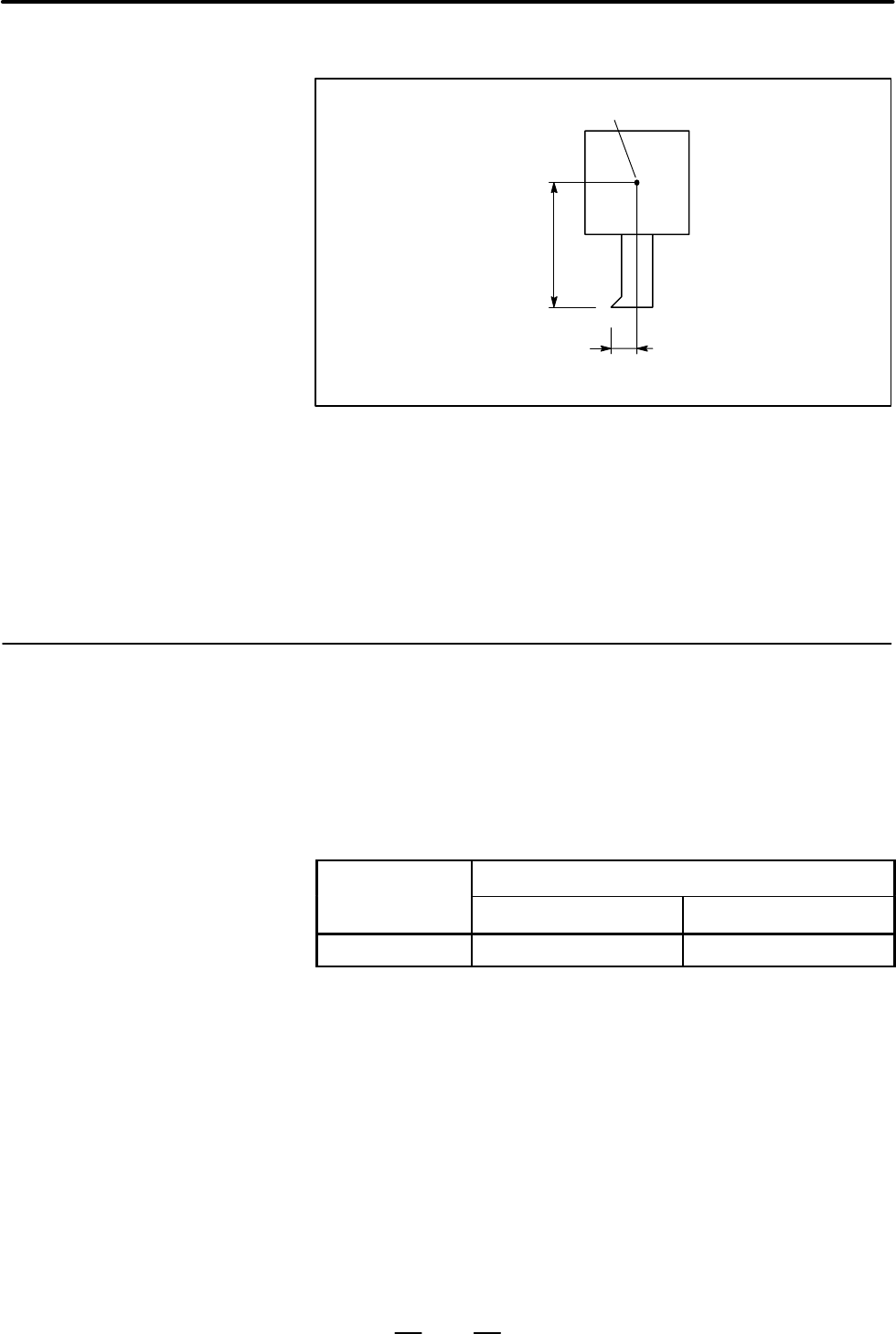

Fig. 13.4

Point on the program

Offset

value on

X axis

Offset

value on

Z axis

Tool compensation values can be entered into CNC memory from the

CRT/MDI panel (see section III–11.4.1) or from a program.

A tool compensation value is selected from the CNC memory when the

corresponding code is specified after address T in a program.

The value is used for tool offset or tool nose radius compensation.

See subsec. II–13.1.2 for details.

Table 13.4.1 shows the valid input range of tool compensation values.

Table 13.4.1 Valid range of tool compensation values

Tool compensation value

Increment system

Metric input (mm) Inch input (inch)

IS–B –999.999 to +999.999 mm –99.9999 to +99.9999 inch

The maximum tool compensation can be changed by setting parameter

No.5013.

The memory can hold 16 tool compensation values.

13.4

TOOL

COMPENSATION

VALUES, NUMBER

OF COMPENSATION

VALUES, AND

ENTERING VALUES

FROM THE

PROGRAM (G10)

13.4.1

Tool Compensation

and Number of Tool

Compensation

D Valid range of tool

compensation values

D Number of tool

compensation
