FANUC Power Mate 0 Operator’s Manual

ADDITION OF CANNED CYCLE AND

MULTIPLE REPETITIVE CYCLE

B-63444EN/01-3

15 / 28

EDIT

DATE DESIG. DESCRIPTION

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

Type II

Type II differs from type I in the following : The profile need not

show monotone increase or monotone decrease along the X axis,

and it may have up to 10 concaves (pockets).

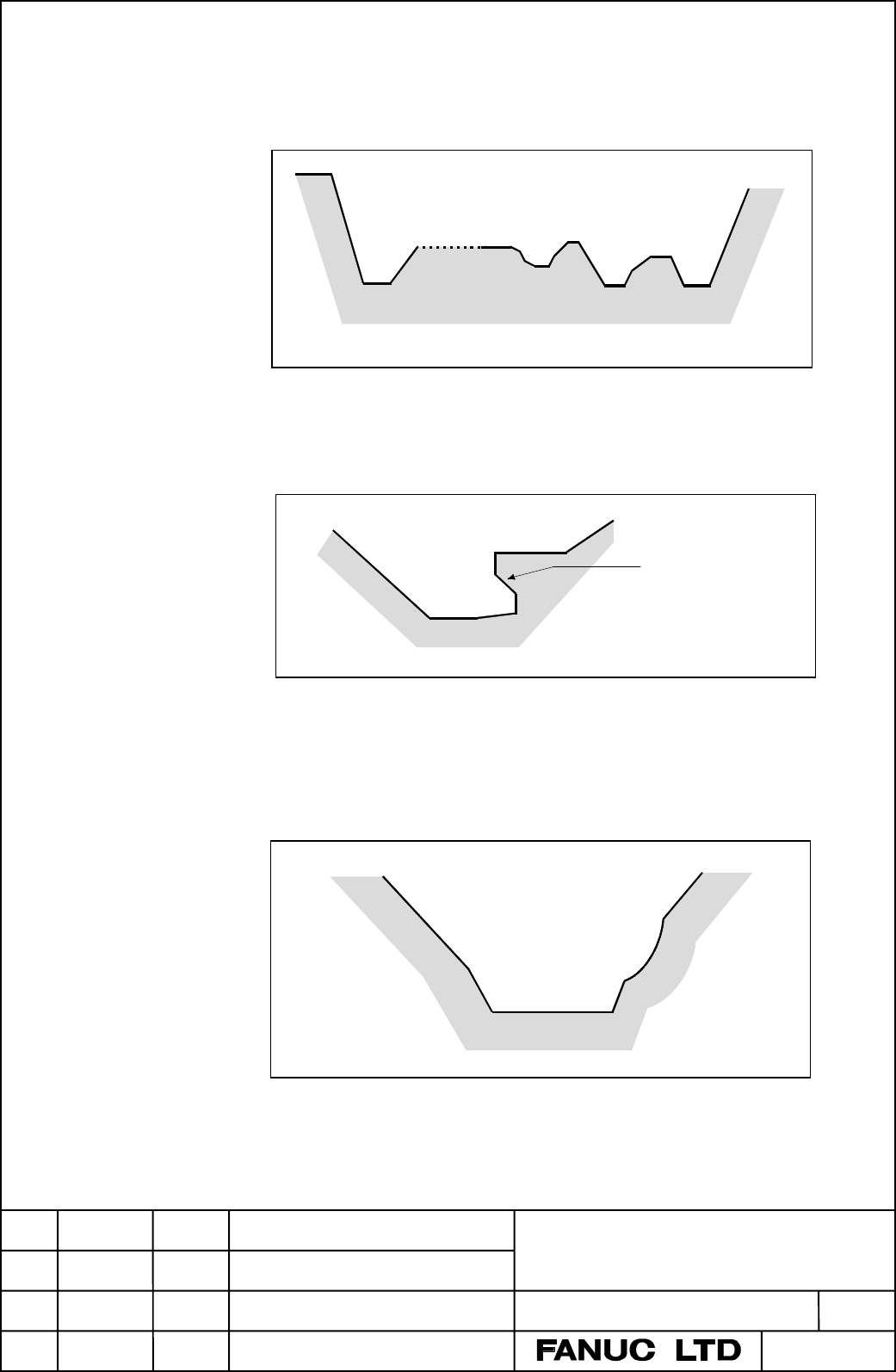

Fig. 13.2.1 (b) Number of Pockets in Stock Removal in Turning (Type II)

Note that, however, the profile must have monotone decrease or

increase along the Z axis. The following profile cannot be machined:

Fig. 13.2.1 (c) Figure Which Cannot Be Machined in Stock Removal in

Turning (Type II)

The first cut portion need not be vertical ; any profile is permitted if

monotone change is shown along the Z axis.

Fig. 13.2.1 (d) Figure Which Can Be Machined (Monotonic change) in

Stock Removal in Turning (Type II)

After turning, a clearance is provided by cutting along the workpiece

profile.

2310

・・・・・・

Monotone change is not

observed along the Z axis
