OPERATION

B–63444EN/01

11. SETTING AND DISPLAYING DATA

363

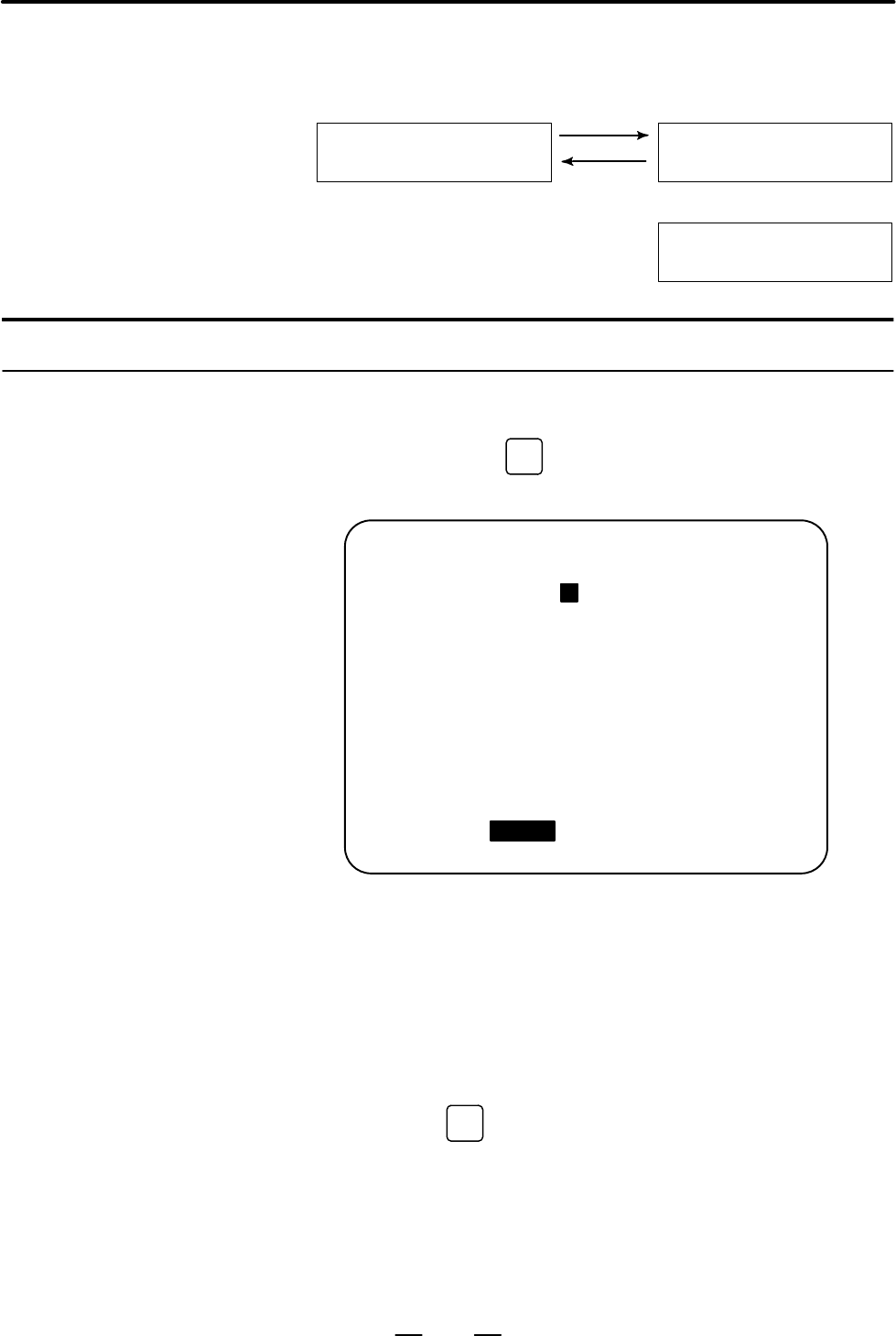

Press the <DGNOS/PARAM> key to toggle between the parameter

screen and diagnostic screen.

> &0001 01010101

&0002 01010101

Parameter screen Diagnostic screen

> @0800 0

@0801 0

Display of PMC data

> D0000 00000000

D0001 00000000

Key operation

âã

Procedure for Enabling/displaying Parameter Writing

1 Select the MDI mode or enter state emergency stop.

2 Press function key

OFFSET

SETTING

3 Press soft key

[SETING] to display the setting screen.

SETTING (HANDY) O0001 N00000

> _ S 0 T0000

MDI **** *** *** 16:05:59

[ OFFSET ][ SETING ][ WORK ][ ][(OPRT)]

PARAMETER WRITE = 1 (0:DISABLE 1:ENABLE)

TV CHECK = 0 (0:OFF 1:ON)

PUNCH CODE = 1 (0:EIA 1:ISO)

INPUT UNIT = 0 (0:MM 1:INCH)

I/O CHANNEL = 0 (0–1:CHANNEL NO.)

SEQUENCE NO. = 0 (0:OFF 1:ON)

4 Move the cursor to PARAMETER WRITE using cursor keys.

5 Press soft key

[(OPRT)], then press [1: ON] to enable parameter

writing.

At this time, the CNC enters the P/S alarm state (No. 100).

6 After setting parameters, return to the setting screen. Move the cursor

PARAMETER WRITE and press soft key [(OPRT)] , then press

[0: OFF].

7 Depress the

RESET

key to release the alarm condition. If alarm No. 000

has occurred, however, turn off the power supply and then turn it on,

otherwise the alarm is not released.

Procedure for DPL/MDI

Procedure for CRT/MDI
