FANUC POWER MATE 0 Operators manual Page 155

Operators manual

Page of 492

/ 492

PROGRAMMING

B–63444EN/01

13. COMPENSATION FUNCTION

141

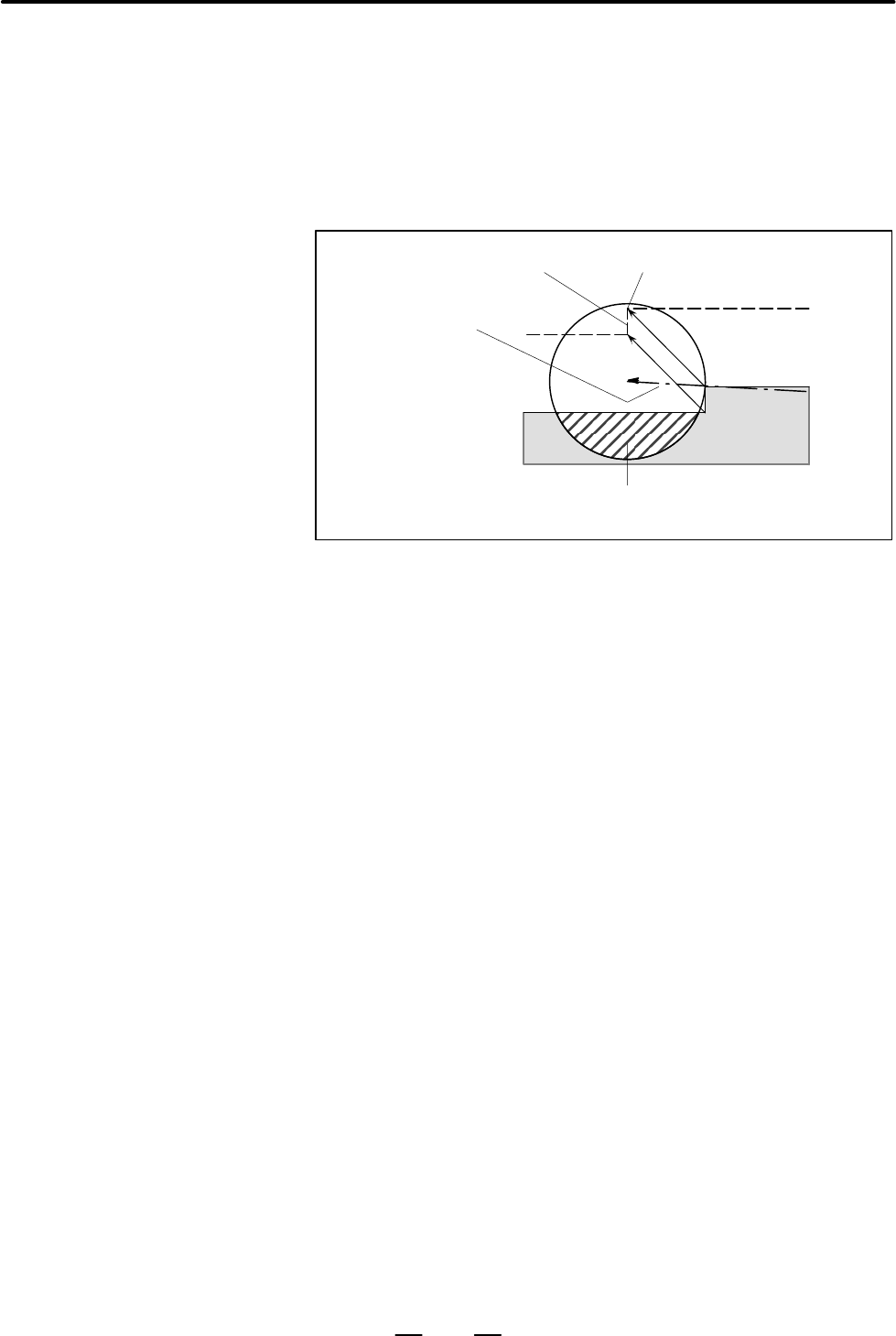

When machining of the step is commanded by circular machining in the

case of a program containing a step smaller than the tool nose radius, the

path of the center of tool with the ordinary offset becomes reverse to the

programmed direction. In this case, the first vector is ignored, and the tool

moves linearly to the second vector position. The single block operation

is stopped at this point. If the machining is not in the single block mode,

the cycle operation is continued. If the step is of linear, no alarm will be

generated and cut correctly. However uncut part will remain.

The first vector is ignored

Tool nose radius center path

Programmed path

Workpiece

Center of the circular

machining

An overcutting will result if the first vector is not ignored.

However, tool moves linearly.

Linear movement Stop position after execution of a single

block

D Machining a step smaller

than the tool nose radius
