APPENDIXD. NOMOGRAPHS

B–63444EN/01

396

The tool path shown in Fig.D.3 (b) is analyzed based on the following

conditions:

Feedrate is constant at both blocks before and after cornering.

The controller has a buffer register. (The error differs with the reading

speed of the tape reader, number of characters of the next block, etc.)

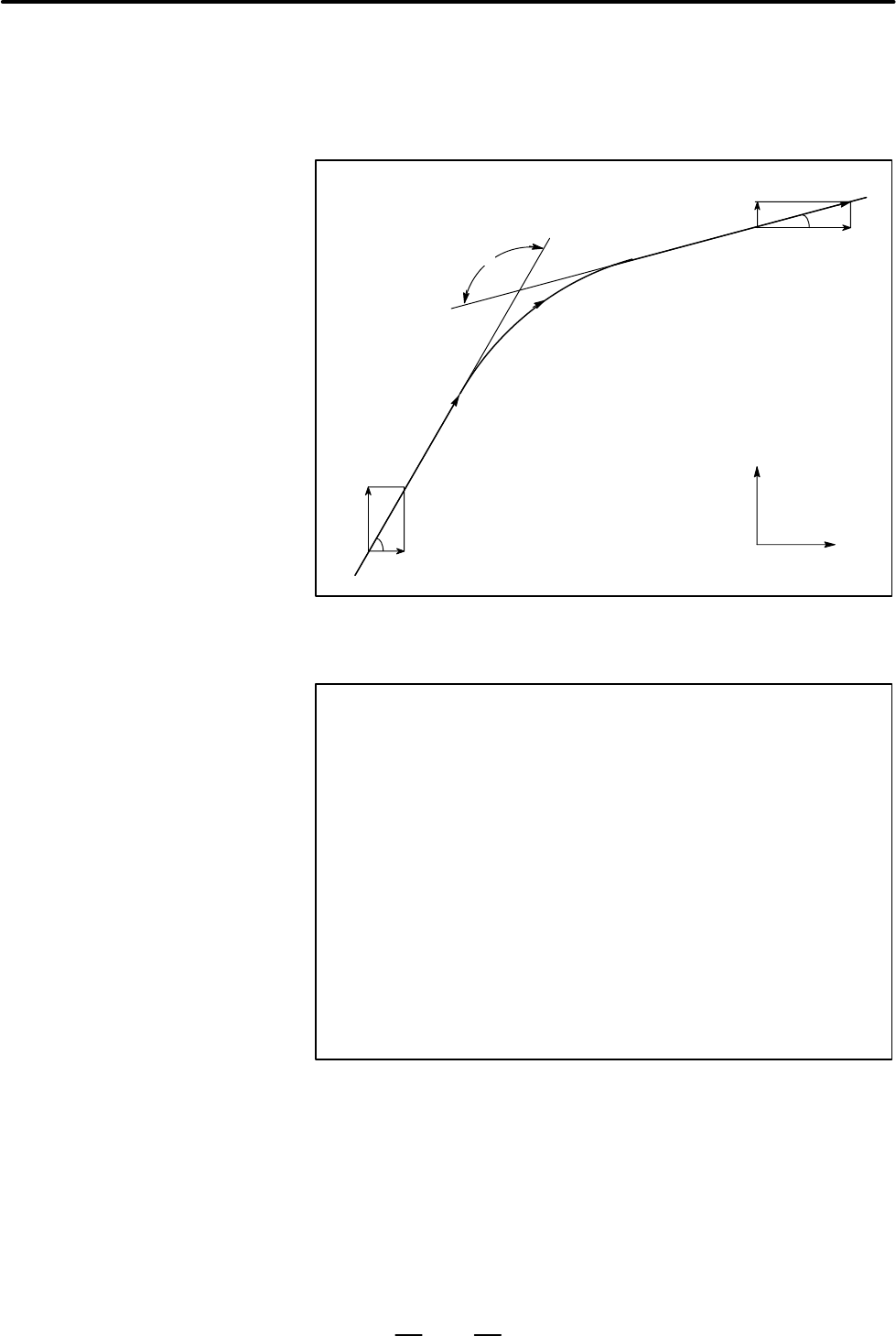

Fig.D.3 (b) Example of tool path

+ V cos f

+ V sin f

+ V cos f

+ V sin f

V : Feedrate at both blocks before and after cornering

:X–axis component of feedrate of preceding block

:Y–axis component of feedrate of preceding block

:X–axis component of feedrate of following block

:Y–axis component of feedrate of following block

θ : Corner angle

: Angle formed by specified path direction of preceding block

and X–axis

: Angle formed by specified path direction of following block

and X–axis

Analysis

D Description of conditions

and symbols
