FANUC POWER MATE 0 Operators manual Page 439

Operators manual

Page of 492

/ 492

B-63445EN/01-1

3/7

EDIT

DATE DESIG. DESCRIPTION

FANUC Power Mate 0

THE FUNCTION OF ABSOLUTE PULSE CODER

MAINTENUNCE MANUAL

TITLE

DRAW.NO. CUST.

SHEET

000512 New design

An attempt was made to return the reference position without

satisfying the condition that, when the tool is moving toward the

reference position with a positional deviation (DGN.300) of 128 or

more pulses, at least a one-turn signal is received.

Moreover, for the absolute pulse coder , a reference position return

was attempted without first turning the power off then on again

after rotating the motor one turn when the system is started, or

when the battery is replaced in response to a battery zero alarm.

Contents

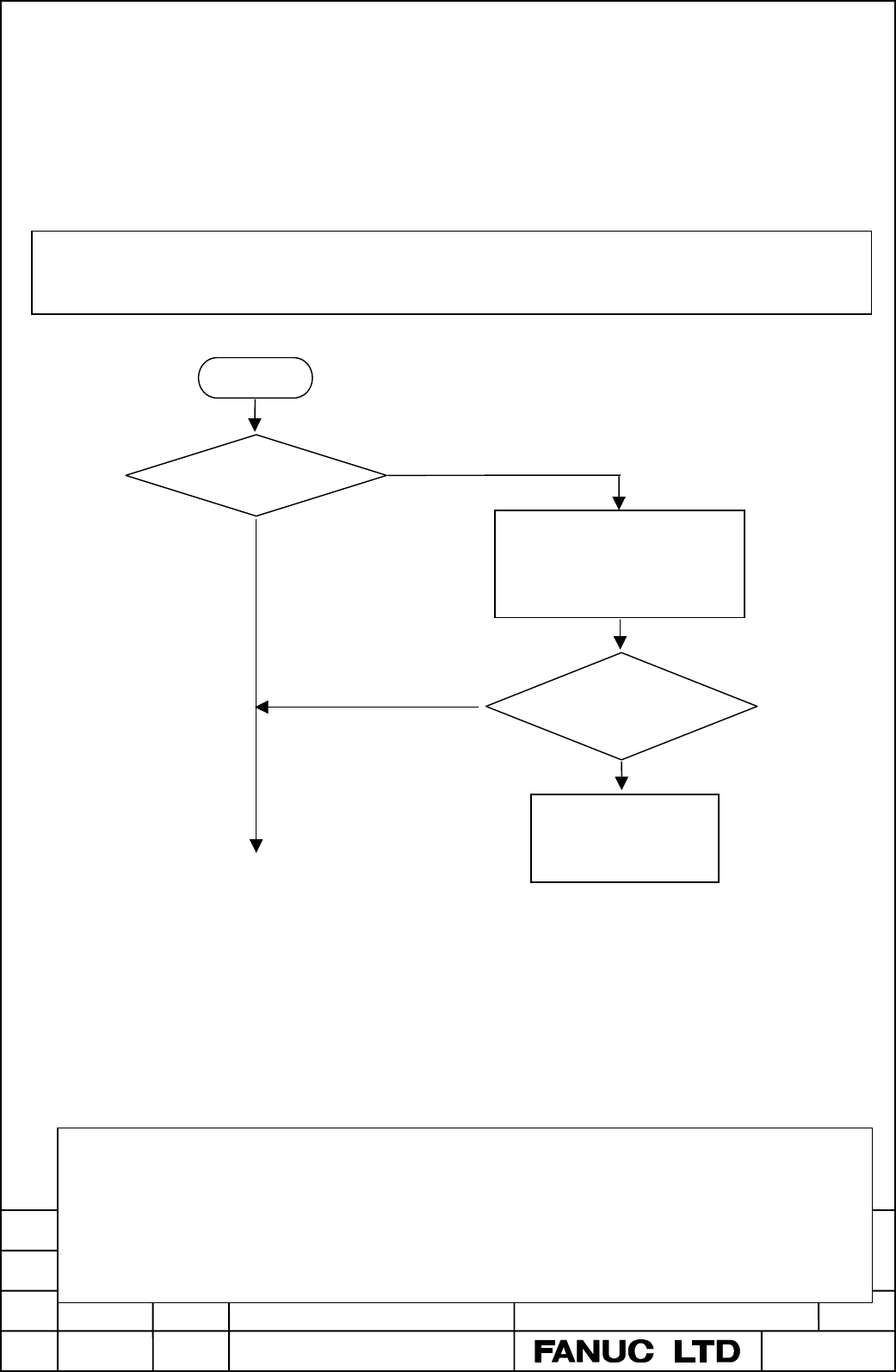

Please add the following figure just after the "start" of the flow chart diagram in the

"Countermeasures" in the "7.11 ALARM 90 (REFERENCE POSITION RETURN IS ABNORMAL) "

start

absolute

ulse coder ?

Ensure that, after the occurrence o

a battery alarm (306) , the battery

was restored to its normal state, the

motor was rotated through at least

one turn , and that the power was

turned off then on again.

Was the

motor rotated through

at least one turn, and was the

power turned off then

on again.

Rotate the motor through

at least one turn, then turn

the power off then on

again.

Please add the following descriptions as "7.12 ALARM 300 (REQUEST FOR REFERENCE

POSITION RETURN) " , "7.13 ALARM 301-305(ABSOLUTE PULSE CODER FAULTY) ",

and "7.14 ALARM 306-308(ABUSOLUTE PULSE CODER BATTERY IS LOW) " after the "7.11

ALARM 90 (REFERENCE POSITION RETURN IS ABNORMAL) ".

And shift the chapter number after this chapter.
