13. COMPENSATION FUNCTION

145

Reference position or floating reference

position=Intermediate position

Start–up

O×××× ;

G91 G41_ ;

G28 X0 Y0 ;

(G41 G01)

G00

G28/30/30.1

G01

WARNING

1 When a G28 command is executed when all–axis machine

lock is applied, a vector perpendicular to the direction in

which the tool moves is created at the intermediate position.

In this case, the tool does not move to the reference position

and the offset vector is not canceled. When each–axis

machine lock is applied, the offset vector is canceled.

2 When a compensation axis is specified in a G28 command

in tool–tip radius compensation mode, the vectors for other

compensation axes are also canceled.

NOTE

1 When an axis not included in the tool–tip radius

compensation plane is specified in a G28 command, a

vector perpendicular to the direction in which the tool moves

is created at the end of the preceding block and the tool

does not move. Offset mode is automatically resumed from

the next block (in the same way as when two or more blocks

specifying no movement are consecutively executed).

2 When a G28 command is specified as a start–up block, a

vector perpendicular to the direction in which the tool moves

is created at the intermediate position. The vector is then

canceled at the reference position. The next block creates

an intersection vector.

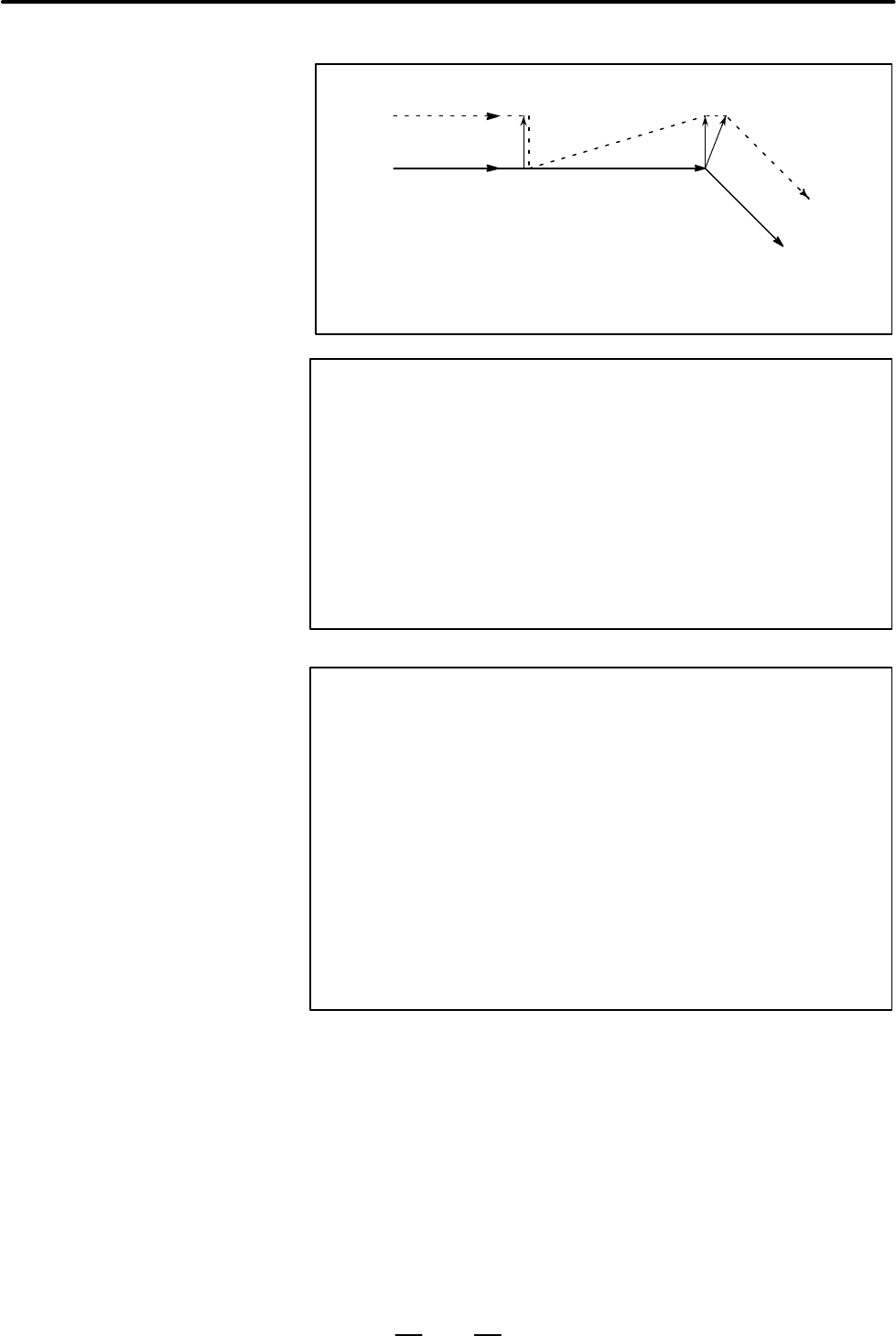

S G28 command in offset

mode (with no

movement)
