PROGRAMMING

B–63444EN/01

12. PROGRAM CONFIGURATION

PROGRAM CONFIGURATION

There are two program types, main program and subprogram. Normally,

the CNC operates according to the main program. However, when a

command calling a subprogram is encountered in the main program,

control is passed to the subprogram. When a command specifying a

return to the main program is encountered in a subprogram, control is

returned to the main program.

Follow the direction of the

subprogram

Main program

Subprogram

Instruction 1

Instruction 2

Instruction n

Instruction 1’

Instruction 2’

Instruction n+1

Return to the main program

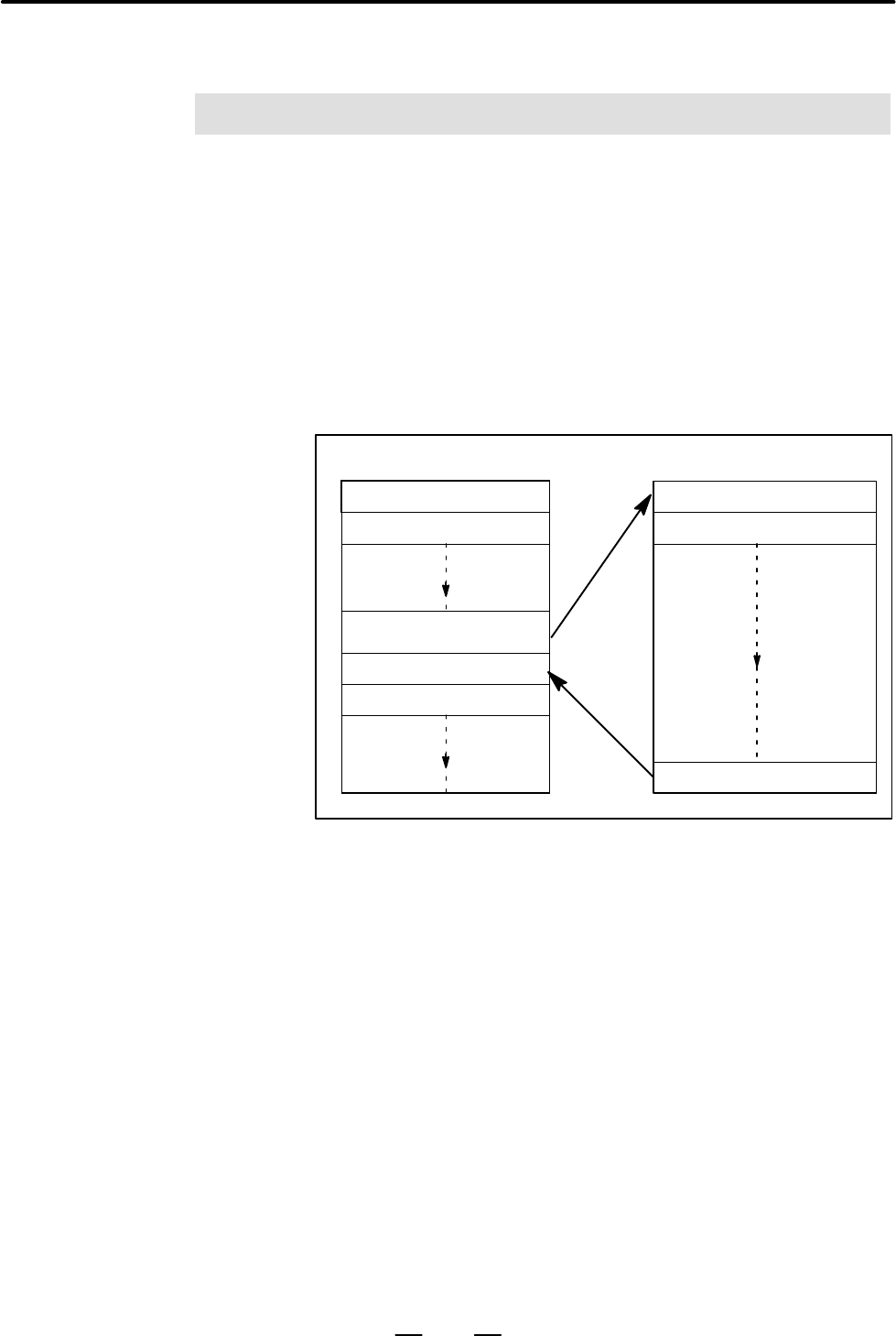

Fig.12 (a) Main program and Subprogram

The CNC memory can hold up to 63 main programs and subprograms.

A main program can be selected from the stored main programs to operate

the machine. See Chapter 10 in OPERATION for the methods of

registering and selecting programs.

General

D Main program and

subprogram
