OPERATION

8. DATA INPUT/OUTPUT

B–63444EN/01

282

To efficiently use the memory in the cassette or card, output the program

by setting parameter NFD (No. 0101#7,No. 0111#7) to 1. This parameter

makes the feed is not output, utilizing the memory efficiently.

Head searching with a file No. is necessary when a file output from the

controller to the floppy is again input to the controller memory or

compared with the content of the controller memory. Therefore,

immediately after a file is output from the controller to the floppy, record

the file No. on the memo.

Punch operation can be performed in the same way as in the foreground.

This function alone can punch out a program selected for foreground

operation.

<O> (Program No.)

[PUNCH] [EXEC]: Punches out a specified program.

<O>

“–9999” [PUNCH] [EXEC]: Punches out all programs.

<O> (Program No.)

<WRITE>: Punches out a specified program.

<O>

“–9999” <WRITE>: Punches out all programs.

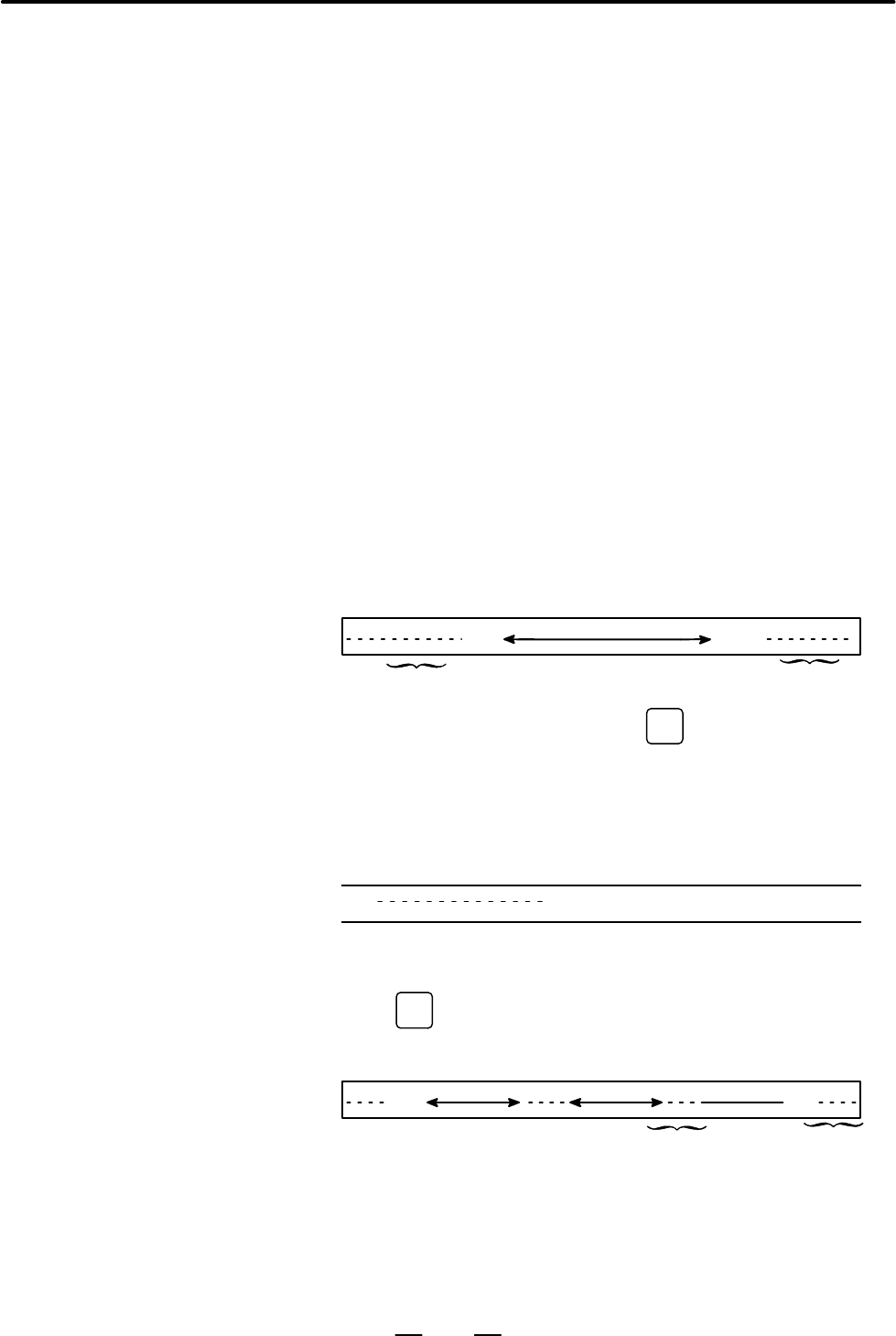

A program is output to floppy in the following format:

(%)

Program

(%)

Feed of 3 feet

If three–feet feeding is too long, press the

CAN

key during feed punching

to cancel the subsequent feed punching.

A space code for TV check is automatically punched.

When a program is punched in ISO code, two CR codes are punched after

an LF code.

LF CR CR

Press the

RESET

key to stop punch operation.

All programs are output to paper tape in the following format.

(%)

Program Program Program

(%)

Feed of 1–feet

Feed of 3–feet

The sequence of the programs punched is undefined.

D Efficient use of memory

D On the memo record

D Punching programs in

the background

D Procedure (CRT/MDI)

D Procedure (DPL/MDI)

Explanations

(Output to a floppy)

D Format

D TV check

D ISO code

D Stopping the punch

D Punching all programs
