OPERATION

B–63444EN/01

1. GENERAL

199

The operator can display or change a value stored in controller internal

memory by key operation on the CRT/MDI screen (See III–11).

Data setting

CRT/MDI

Data display

Screen Keys

CNC memory

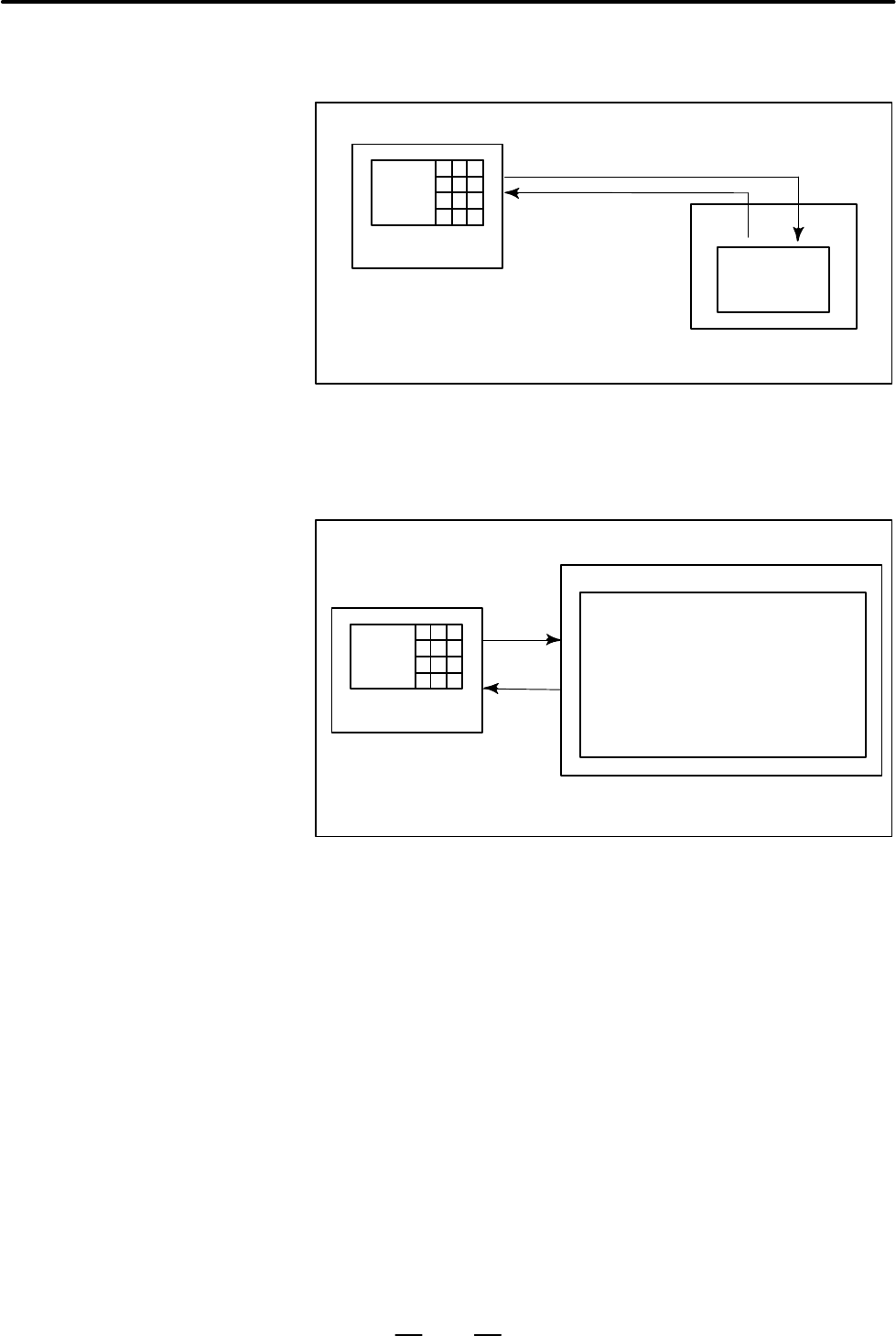

Fig.1.6 (a) Displaying and Setting Data

Tool compensation

number1 12.3

Tool compensation

number2 20.0

Tool compensation

number3 ⋅⋅⋅

⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ ⋅⋅⋅

Setting

Display

Controller memory

Screen Keys

CRT/MDI

Fig.1.6 (b) Displaying and Setting Offset Values

Machining requires the use of a tool.

The tool has the tool dimension (length). When a workpiece is machined,

the tool movement route depends on the tool dimensions.

By setting tool dimension data in controller memory beforehand,

automatically generates tool routes that permit any tool to cut the

workpiece specified by the program. Tool dimension data is called the

offset value (See Section III–11.4.1).

1.6

DISPLAYING AND

SETTING DATA

Explanations

D Offset value
