OPERATION11. SETTING AND DISPLAYING DATA

B–63444EN/01

334

The current position of the tool in the relative coordinate system can be

reset to 0 or preset to a specified value as follows:

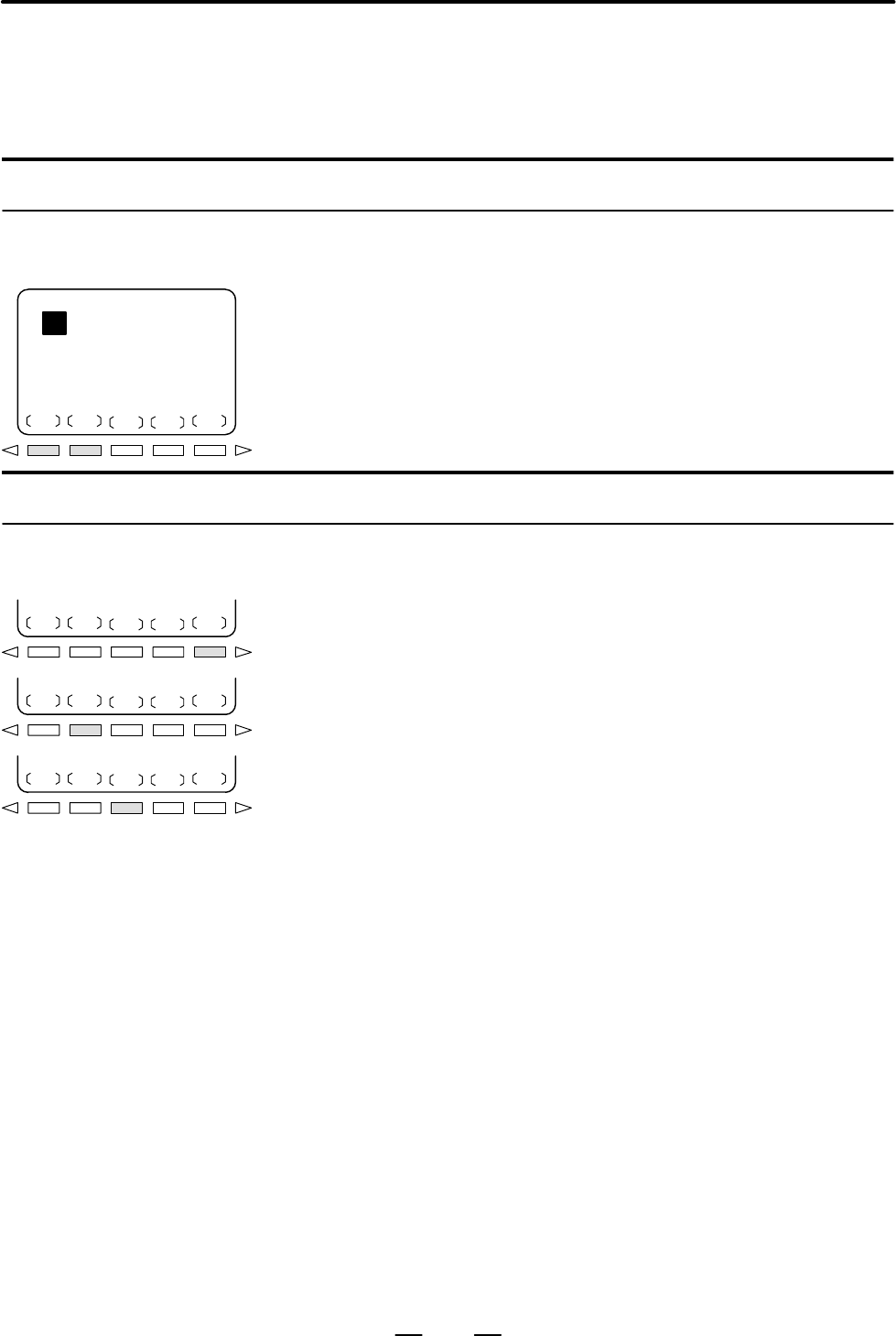

Procedure to Set the Axis Coordinate to a Specified Value

1 Enter an axis address (such as X or Z) on the screen for the relative

coordinates. The indication for the specified axis blinks and the soft

keys change as shown on the left.

2 ⋅ To reset the coordinate to 0, press soft key

[ORGIN]. The relative

coordinate for the blinking axis is reset to 0.

⋅ To preset the coordinate to a specified value, enter the value and

press soft key

[PRESET]. The relative coordinate for the blinking

axis is set to the entered value.

Procedure to Reset All Axes

1 Press soft key [(OPRT)].

2 Press soft key

[ORIGIN].

3 Press soft key

[ALLEXE].

The relative coordinates for all axes are reset to 0.

Bit 6 of parameter 3104 can be used to select whether the displayed values

include tool offset.

Bit 3 of parameter 3104 is used to specify whether the displayed positions

in the relative coordinate system are preset to the same values as in the

workpiece coordinate system when a coordinate system is set by a

command G50 (G code system A)/G92 (G code system B, C) or when the

manual reference position return is made.

Explanations

D Setting the relative

coordinates

Procedure for CRT/MDI

ORIGIN

2 4 6. 9 1 2

Z 9 1 3. 7 8 0

MEM

PRESET

Procedure for CRT/MDI

ORIGIN

EXEC

RELABS

ALL

(OPRT)

ALLEXE

D Display including

compensation values

D Presetting by setting a

coordinate system
