FANUC POWER MATE 0 Operators manual Page 144

Operators manual

Page of 492

/ 492

PROGRAMMING

13. COMPENSATION FUNCTION

B–63444EN/01

130

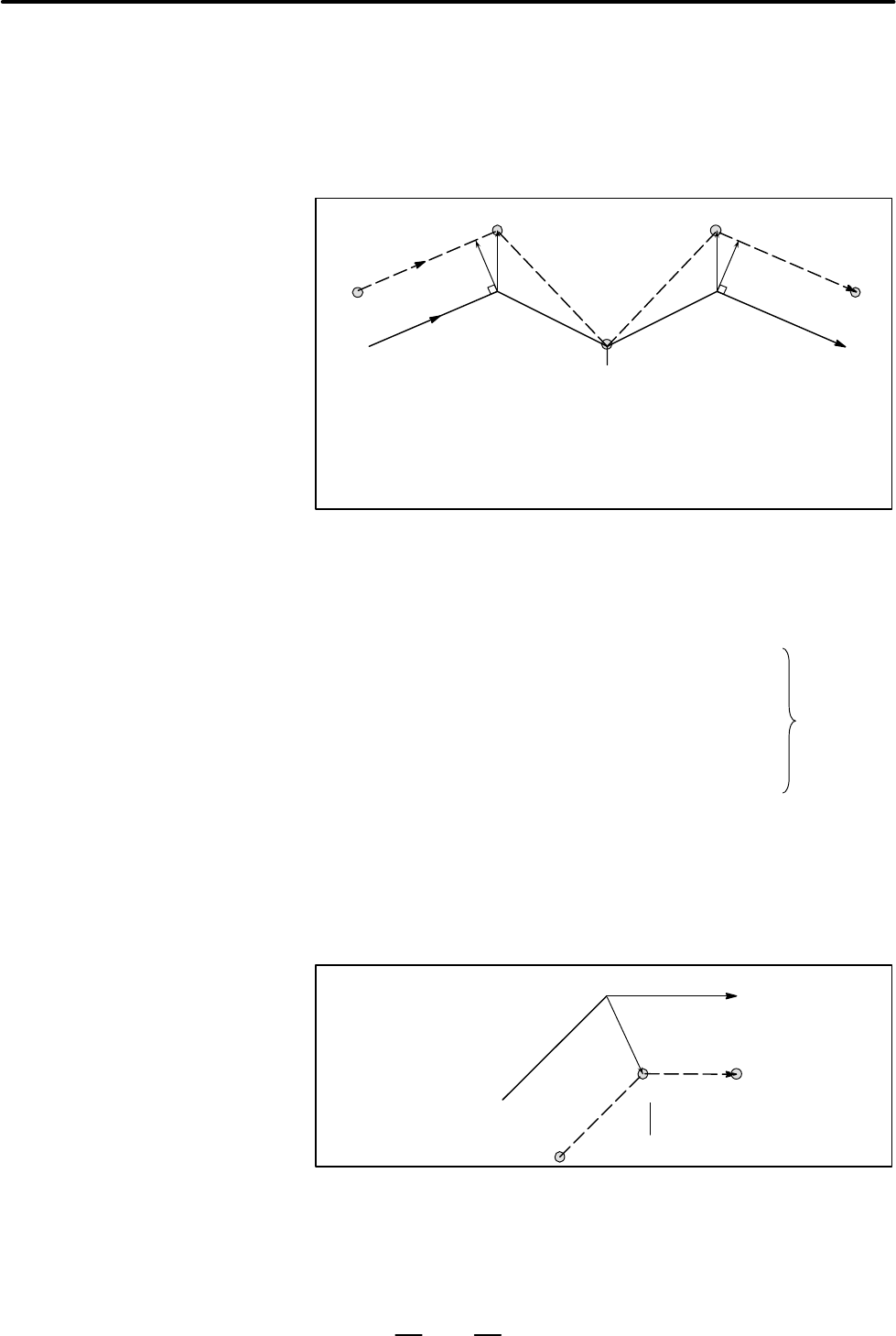

During offset mode, if G50 is commanded,the offset vector is temporarily

cancelled and thereafter offset mode is automatically restored.

In this case, without movement of offset cancel, the tool moves directly

from the intersecting point to the commanded point where offset vector

is canceled. Also when restored to offset mode, the tool moves directly

to the intersecting point.

G92 block

Tool nose radius

center path

Programmed path

(G41)

N5 G91 G01 U700.0 W300.0 ;

N6 U600.0 W–300.0 ;

N7 G50 X200.0 Z100.0 ;

N8 G01 X800.0 Z400.0 ;

D Workpiece coordinate

system setting (G50)

The following blocks have no tool movement. In these blocks, the tool

will not move even if tool nose radius compensation is effected.

1. M05 ; M code output

2. S21 ; S code output

3. G04 X10.0 ; Dwell

4. G10 P01 X10 Z20 R10.0 ; tool nose radius compen–.

sation value setting

5. (G17) Z200.0 ;Move command not included

in the offset plane.

6. G98 ; G code only

7. X0 ;Move distance is zero.

Com-

mands 1

to 6 are of

move-

ment.

When a single block without tool movement is commanded in the offset

mode, the vector and Tool nose radius center path are the same as those

when the block is not commanded. This block is executed at the single

block stop point.

N7 N8

Tool nose radius center path

Programmed path

Block N7 is executed here.

N6 U100.0 W100.0 ;

N7 G04 Z100.0 ;

N8 U100.0 ;

However, when the move distance is zero, even if the block is commanded

singly, tool motion becomes the same as that when more than one block

of without tool movement are commanded, which will be described

D Command cancelling the

offset vector temporality

D A block without tool

movement

S A block without tool

movement specified in

offset mode
