11. SETTING AND DISPLAYING DATA

349

To set the difference between the tool reference position used in

programming (the nose of the standard tool, turret center, etc.) and the tool

tip position of a tool actually used as an offset value

Procedure for direct input of tool offset value

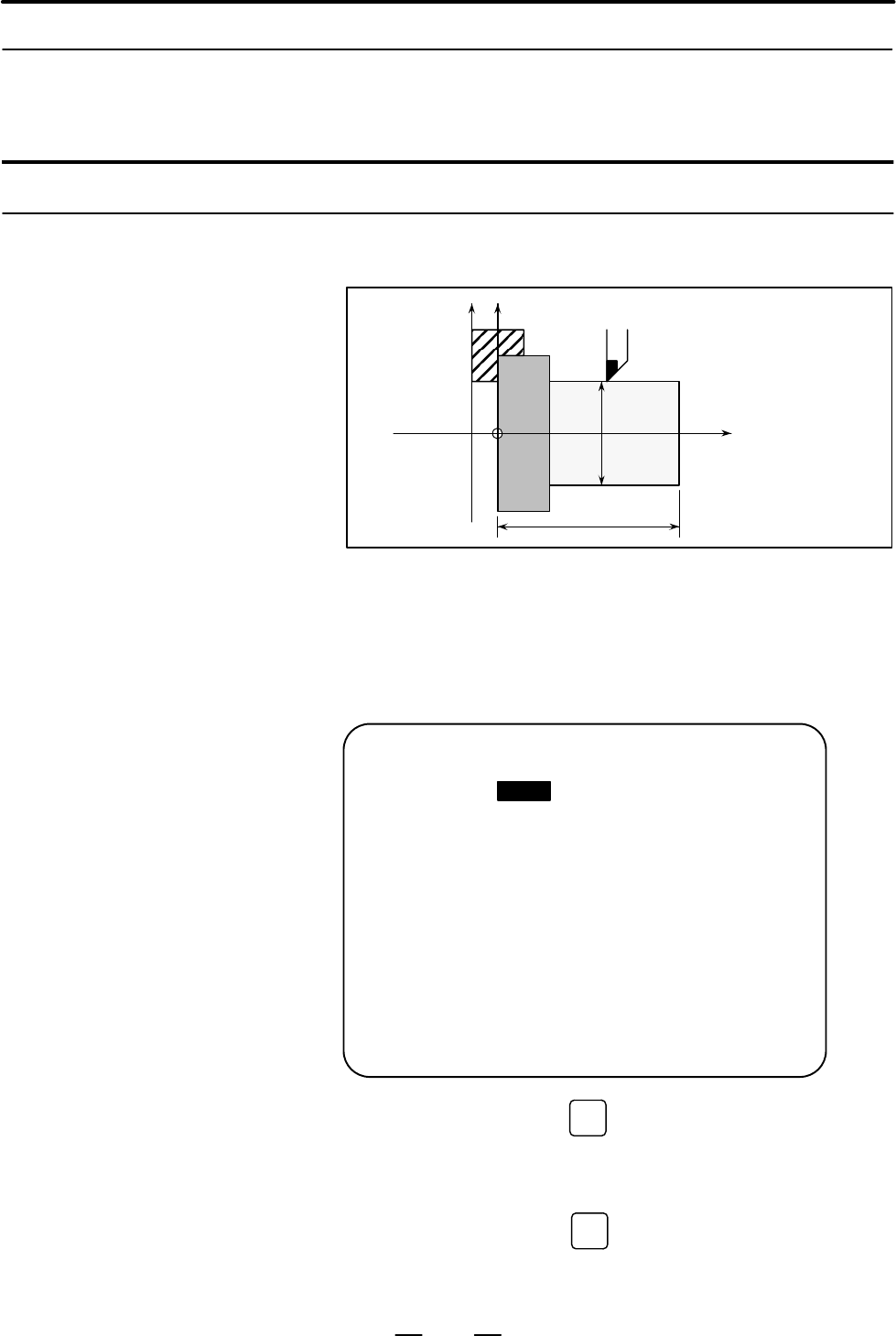

1 Cut surface A in manual mode with an actual tool.

Suppose that a workpiece coordinate system has been set.

Surface A

Surface B

2 Release the tool in X axis direction only, without moving Z axis and

stop the spindle.

3 Measure distance β from the zero point in the workpiece coordinate

system to surface A.

Set this value as the measured value along the Z–axis for the desired

offset number, using the following procedure:

OFFSET O0001 N00000

NO. X Z. R T

001 0.000 1.000 0.000 0

002 1.486 –49.561 0.000 0

003 1.486 –49.561 0.000 0

004 1.486 0.000 0.000 0

005 1.486 –49.561 0.000 0

006 1.486 –49.561 0.000 0

007 1.486 –49.561 0.000 0

008 1.486 –49.561 0.000 0

ACTUAL POSITION (RELATIVE)

U 0.000 W 0.000

>MZ120._

MDI **** *** *** 16:05:59

[NO,SRH][ MEASUR ][ INP.C. ][ +INPUT ][ INPUT ]

3–1 Press the function key

OFFSET

SETTING

or the soft key [OFFSET] to display

the tool compensation screen.

3–2 Move the cursor to the set offset number using cursor keys.

3–3 Press the address key

to be set.

3–4 Key in the measured value (β).

11.4.2

Direct Input of Tool

Offset Value

D Setting of Z axis offset

value
