PROGRAMMING

4. INTERPOLATION FUNCTIONS

B–63444EN/01

The distance between an arc and the center of a circle that contains the arc

can be specified using the radius, R, of the circle instead of I, J, and K.

In this case, one arc is less than 180°, and the other is more than 180° are

considered. When an arc exceeding 180° is commanded, the radius must

be specified with a negative value. If Xp and Zp are all omitted, if the

end point is located at the same position as the start point and when R is

used, an arc of 0° is programmed

G02R ; (The cutter does not move.)

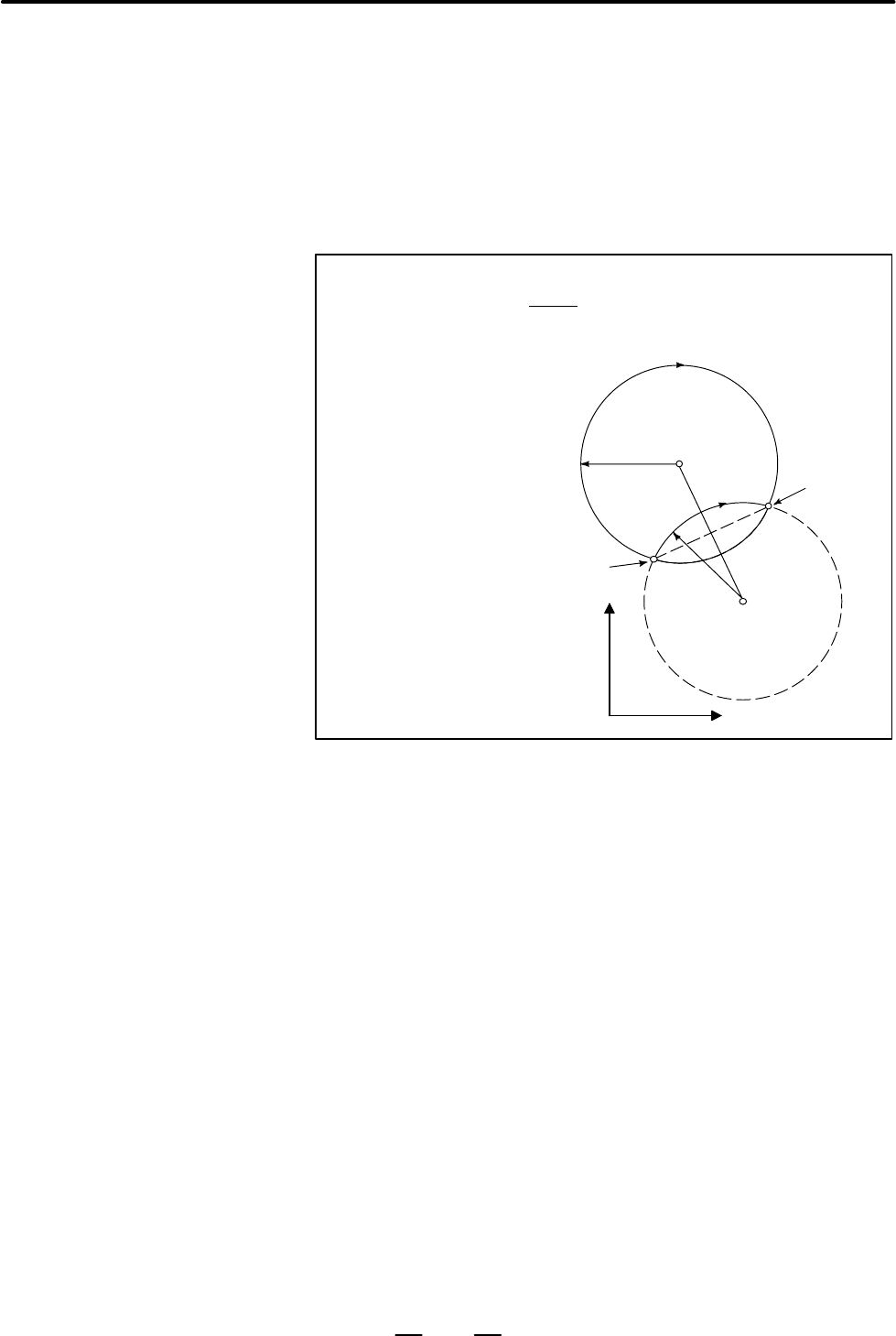

r=50mm

End point

Start point

r=50mm

For arc (1) (less than 180°)

G02 W60.0 U10.0 R50.0

F300.0 ;

For arc (2) (greater than 180°)

An arc with a sector angle of 180°

or wider cannot be specified

within a single block.

(2)

(1)

D Arc radius
