FANUC POWER MATE 0 Operators manual Page 273

Operators manual

Page of 492

/ 492

OPERATION

B–63444EN/01

6. SAFETY FUNCTIONS

261

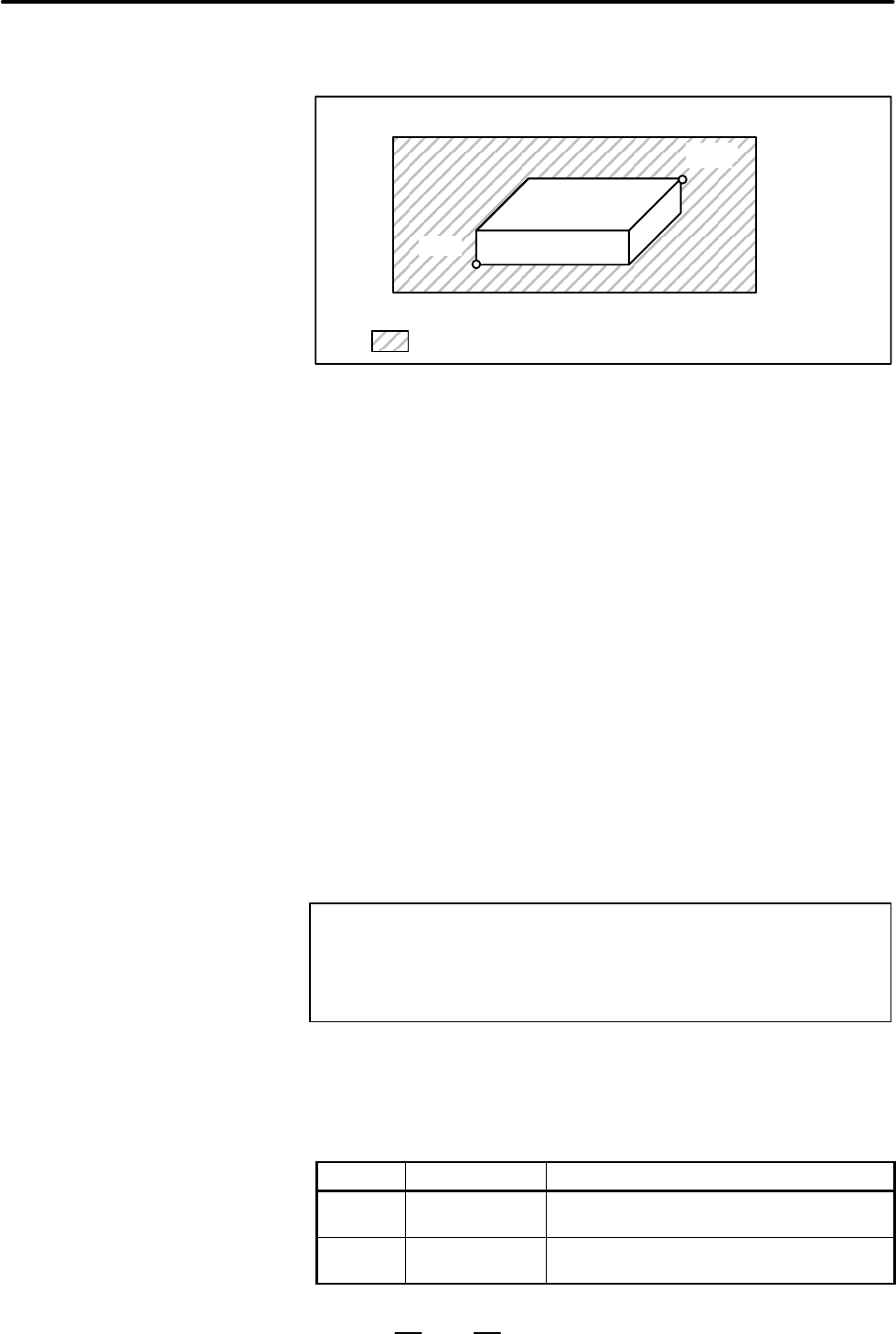

Area which the tool cannot enter can be specified with stored stroke limit

(I,K)

:Forbidden area for the tool

(X,Z)

Fig.6.3 Stroke check

When the tool exceeds a stored stroke limit, an alarm is displayed and the

tool is decelerated and stopped.

When the tool enters a forbidden area and an alarm is generated, the tool

can be moved in the reverse direction from which the tool came.

Parameters (Nos. 1320, 1321) set boundary. Outside the area of the set

limits is a forbidden area. The machine tool builder usually sets this area

as the maximum stroke.

Unnecessary limits should be set beyond the machine stroke.

The LZR parameter (No. 1300#6) can be used for each limit to specify

whether to enable the stroke limit immediately after power is turned on

or after a return to the reference point is made manually or with G28.

After the power is turned on, if the reference position is in the forbidden

area of each limit, an alarm is generated immediately.

If the tool has already entered a forbidden area when reference position

return is performed, an alarm is issued, preventing the tool from being

moved out of that area. In such a case, check the set value and, if

erroneous, correct it. Then, retry from reference position return.

NOTE

In setting a forbidden area, if the two points to be set are

the same, the area is as follows:

· All areas are forbidden areas.

Parameter BFA (bit 7 of No. 1300) selects whether an alarm is displayed

immediately before the tool enters the forbidden area or immediately after

the tool has entered the forbidden area.

Number Message Contents

500 OVER TRAVEL:

The n–th axis (1–2) exceeded + side stored

stroke limit.

501 OVER TRAVEL:

–n

The n–th axis (1–2) exceeded*side stored

stroke limit.

6.3

STROKE CHECK

Explanation

D Stored stroke limit

D Effective time for a

forbidden area

D Releasing the alarms

D Timing for displaying

an alarm

Alarms
