FANUC Power Mate 0 Operator’s Manual

ADDITION OF CANNED CYCLE AND

MULTIPLE REPETITIVE CYCLE

B-63444EN/01-3

18 / 28

EDIT

DATE DESIG. DESCRIPTION

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

This function permits cutting a fixed pattern repeatedly, with a pattern

being displaced bit by bit. By this cutting cycle, it is possible to efficiently

cut work whose rough shape has already been made by a rough machining,

forging or casting method, etc.

The pattern commanded in the program should be as follows.

A→A′→B

G73 U (ni) W (

nk) R (d) ;

G73 P (ns) Q (nf) U (nu) W (nw) F (f ) S (s ) T (t) ;

N (ns)⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅

⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅

F____

S____

T____

N (nf) ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅;

∆i : Distance and direction of relief in the X axis direction (Radius

designation).This designation is modal and is not changed until the other

value is designated. Also this value can be specified by the parameter No.

5135, and the parameter is changed by the program command.

∆k: Distance and direction of relief in the Z axis direction.

This designation is modal and is not changed until the other value is

designated. Also this value can be specified by the parameter No. 5136, and

the parameter is changed by the program command.

d: The number of division

This value is the same as the repetitive count for rough cutting. This

designation is modal and is not changed until the other value is designated.

Also, this value can be specified by the parameter No. 5137, and the

parameter is changed by the program command.

ns: Sequence number of the first block for the program of finishing shape.

nf: Sequence number of the last block for the program of finishing shape.

∆u: Distance and direction of finishing allowance in X direction

(diameter/radius designation)

∆w: Distance and direction of finishing allowance in Z direction

f,s,t Any F, S, and T function contained in the blocks between sequence

number "ns" and "nf" are ignored, and the F, S, and T functions in this G73

block are effective.

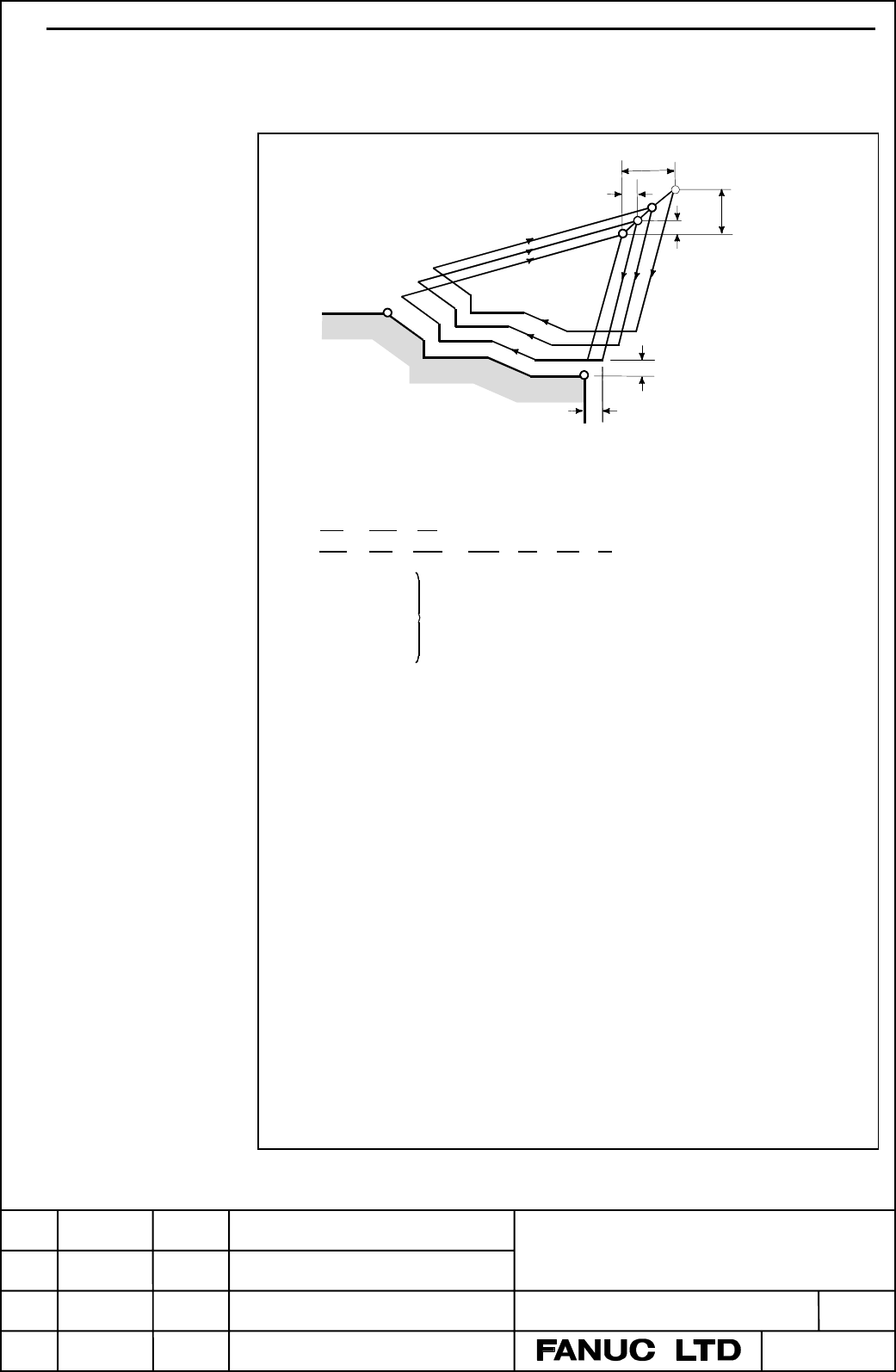

Fig. 13.2.3(a) Cutting path in Pattern Repeating

13.2.3

Pattern Repeating

(G73)

∆w

∆u/2

∆i+∆u/2

(R)

∆k+∆w

∆w

∆u/2

The move command between A and B is specified in

the blocks from sequence number ns to nf.
