PROGRAMMING

13. COMPENSATION FUNCTION

B–63444EN/01

108

The direction of the imaginary tool nose viewed from the tool nose center

is determined by the direction of the tool during cutting, so it must be set

in advance as well as offset values.

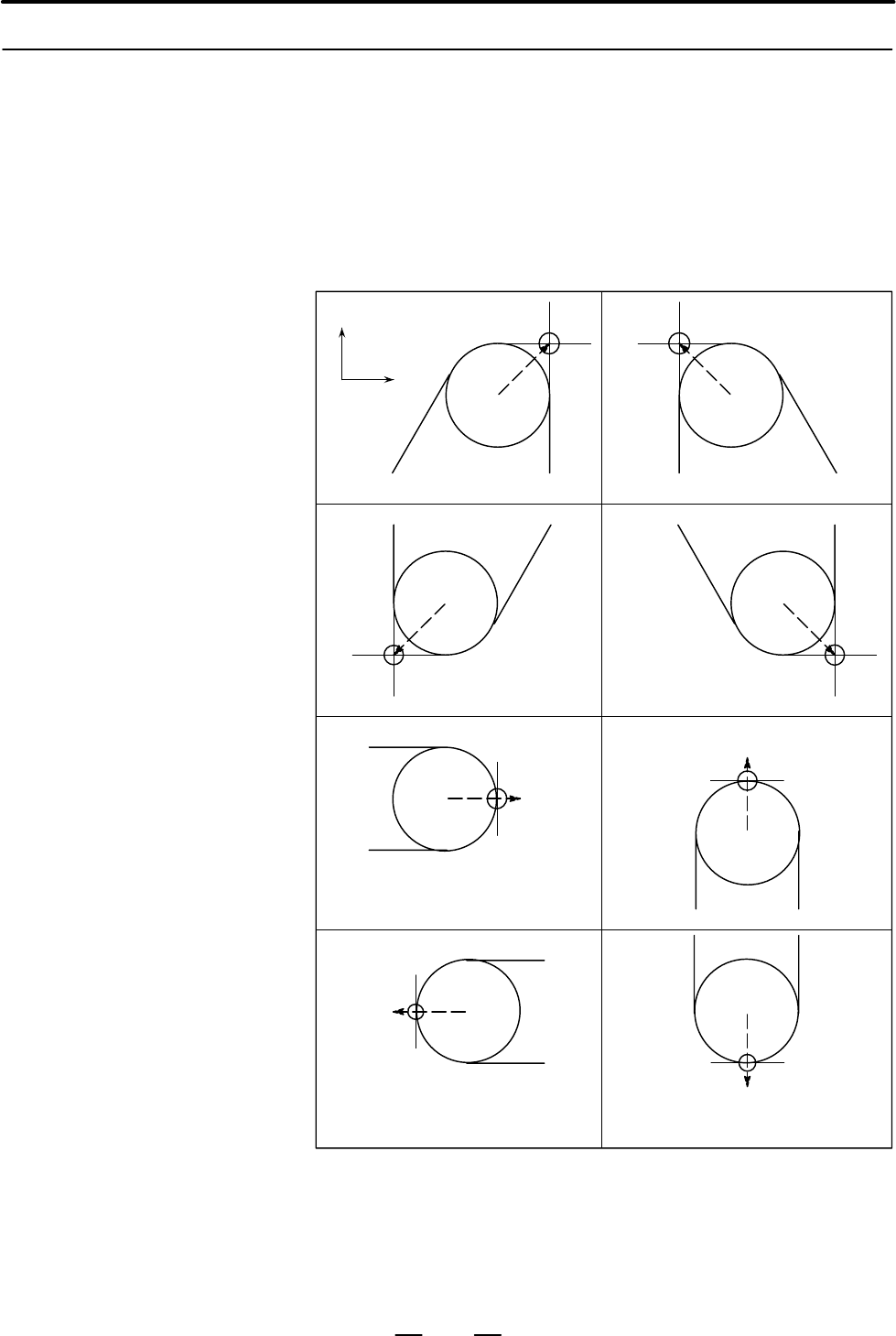

The direction of the imaginary tool nose can be selected from the eight

specifications shown in the Fig. 13.2.2 below together with their

corresponding codes.

This Fig 13.2.2 illustrates the relation between the tool and the start

position. The following apply when the tool geometry offset and tool

wear offset option are selected.

Imaginary tool nose number 1

Imaginary tool nose number 2

Imaginary tool nose number 3

Imaginary tool nose number 4

Imaginary tool nose number 5

Imaginary tool nose number 6

Imaginary tool nose number 7

Imaginary tool nose number 8

Fig.13.2.2 Direction of imaginary tool nose

13.2.2

Direction of Imaginary

Tool Nose
