4. REFERENCE POSITION ESTABLISHMENT

129

(5)When the deceleration signal turns to “1” again after the limit switch

for deceleration is passed, the tool is fed with the feedrate unchanged,

then the tool stops at the first grid point (electric grid point).

(6)Upon confirmation that the current position is in the in–position area,

the reference position return end signal (ZP1, ZP2, ZP3,…) and the

reference position establishment signal (ZRF1, ZRF2, ZRF3,…) turn

to “1”.

Step (2) and subsequent steps are performed independently for each axis.

The number of simultaneously controlled axes is usually one, but it

becomes three by parameter JAX (No. 1002#0).

If the feed axis direction selection signal (+J1, –J1, +J2, –J2,…) turns to

“0” between step (2) and (5) , the tool is stopped at once, and reference

position return is assumed to be canceled. If the signal turn to “1” again,

operation resumes from step (3) (rapid traverse).

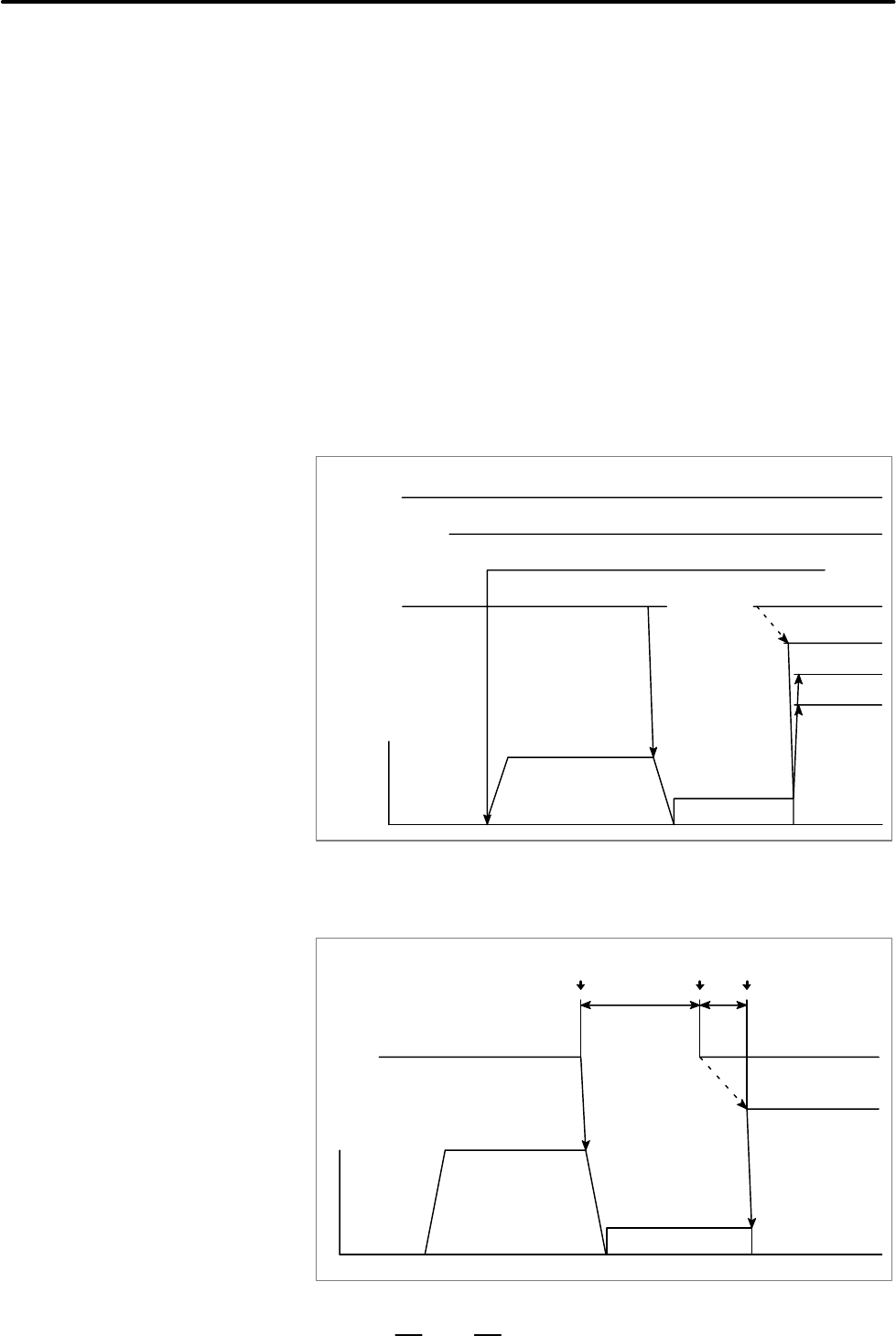

The timing charts for the basic procedures are given below.

ZRN

+J1

*DEC1

Grid

ZP1

ZRF1

Feedrate

Rapid traverse rate

FL rate

. . . . . . . . . . . . . . . . . . . . .

JOG or TEACH IN

JOG mode

When installing the deceleration limit switch for manual reference

position return, ensure that following conditions are satisfied:

*DEC1

Grid

Feedrate

Rapid traverse rate (V

)

Deceleration limit

operation position

FL rate (V

)

. . . . . . . . . . .

Reference position

Deceleration limit

release position

Installation conditions

for deceleration limit

switch
