Series 0i - Model A Connection manual (Function) Page 298

Connection manual (Function)
B–63503EN–1/01
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
282

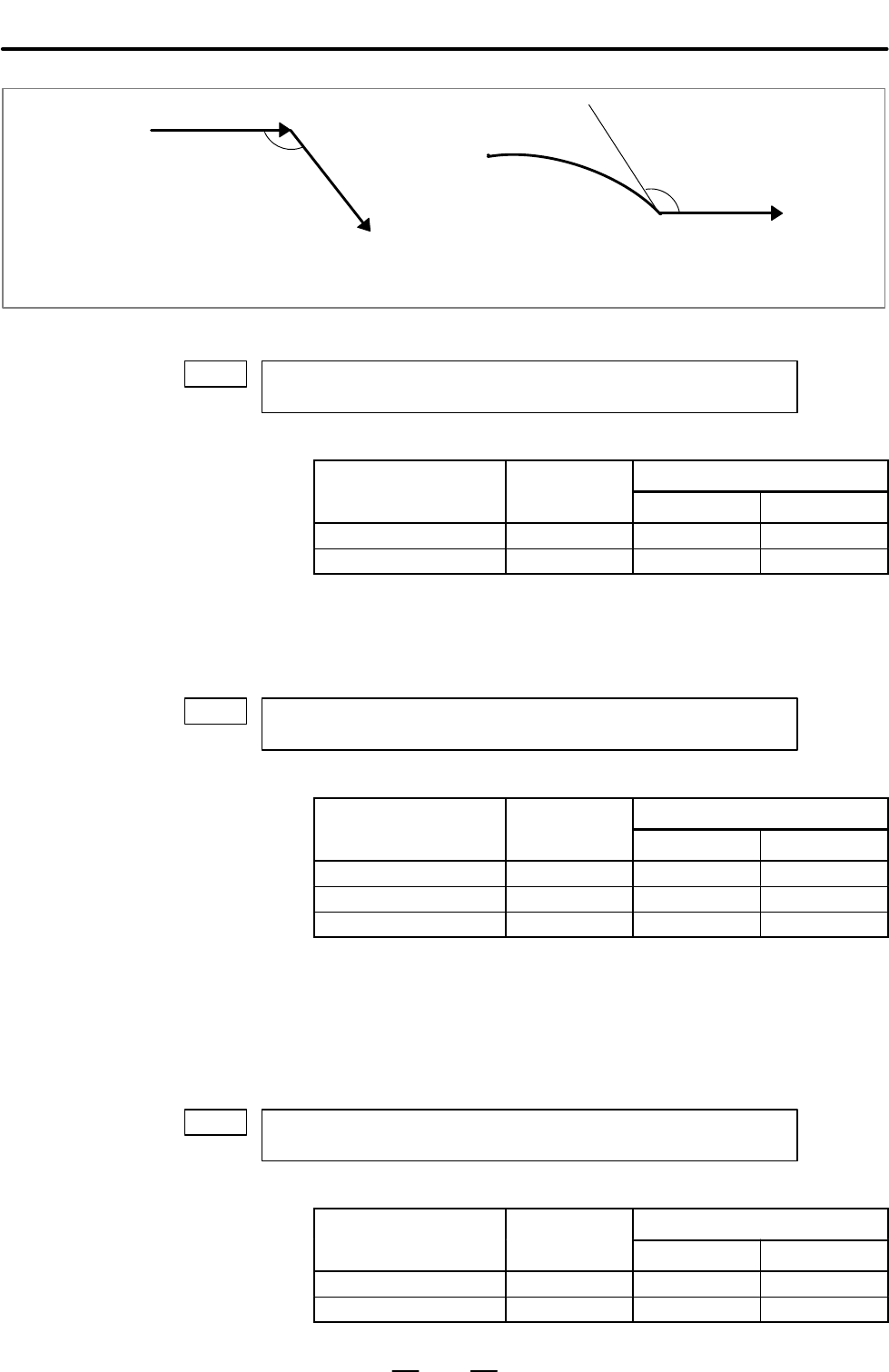

Block A (G01)
θ
θ
Angle subtended by two
straight lines
Block A (G02)
Block B (G01)
Block B (G01)
Angle subtended an arc tangent
and straight line
1780
Allowable speed difference for the speed difference based corner deceleration
function (for linear acceleration/deceleration before interpolation)
[Data type] Word
Increment system
Unit of data
Valid data range
Increment s
y
stem
Unit of data
IS-B IS-C
Millimeter machine 1 mm/min 6 – 15000 6 – 12000
Inch machine 0.1 inch/min 6 – 6000 6 – 4800
Set the speed difference for the speed difference based automatic corner
deceleration function when linear acceleration/deceleration before
interpolation is used.
1783
Allowable speed difference for the speed difference based corner deceleration
function (for linear acceleration /deceleration before interpolation)
[Data type] Word axis
Increment system
Unit of data
Valid data range
Increment s
y
stem
Unit of data
IS-B IS-C
Millimeter machine 1 mm/min 6 – 15000 6 – 12000
Inch machine 0.1 inch/min 6 – 6000 6 – 4800
Rotation axis 1 deg/min 6 – 15000 6 – 12000
A separate allowable feedrate difference can be set for each axis. Among
the axes that exceed the specified allowable feedrate difference, the axis
with the greatest ratio of the actual feedrate difference to the allowable
feedrate difference is used as the reference to calculate the reduced
feedrate at the corner.
1784
Speed when overtravel alarm has generated during acceleration/deceleration
before interpolation
[Data type] Word
Increment system
Unit of data
Valid data range
Increment s
y
stem
Unit of data
IS-B IS-C
Millimeter machine 1 mm/min 6 – 15000 6 – 12000
Inch machine 0.1 inch/min 6 – 6000 6 – 4800
[Unit of data]
[Valid data range]
[Unit of data]
[Valid data range]
[Unit of data]
[Valid data range]
