B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

314

NOTE

1 If linear acceleration/deceleration after interpolation for

cutting feed is enabled, linear acceleration/deceleration is

executed during cutting feed and during a dry run. Linear

acceleration/deceleration can also be executed during jog

feed if the JGL bit (bit 4 of parameter No. 1610) is specified

accordingly.

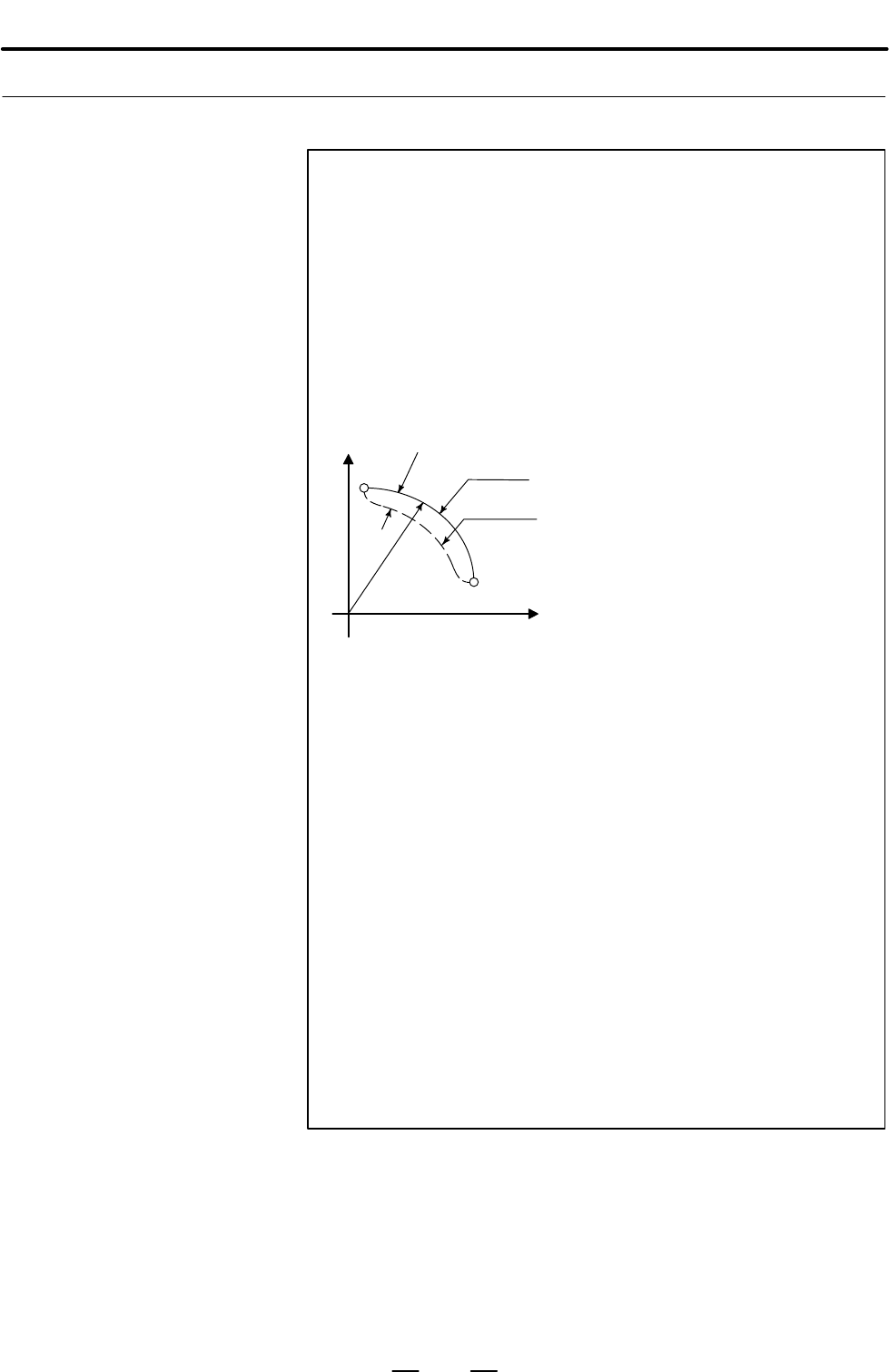

2 In circular interpolation especially when circular cutting is

executed at high speed, the actual path of the accelerated

or decelerated tool deviates from the specified arc in the

direction of the radius.

The maximum error in the radial direction (Dr) can be

approximated by the following expressions:

If the error caused by the time constant of the servo loop is

excluded, the error cause by linear acceleration/

deceleration or bell shaped acceleration/deceleration after

interpolation is 1/12 of that caused by exponential

acceleration/deceleration.

3 Linear acceleration/deceleration can be executed both for

cutting feed and for jog feed along a PMC axis.

Acceleration/deceleration for cutting feed is executed even

if acceleration/deceleration for jog feed is selected. In jog

feed along the PMC axis, the time constant for cutting feed

is used instead of that for jog feed.

Dr :Maximum radius error (mm)

v :Feedrate (mm/s)

r :Radius of arc (mm)

:Acceleration/deceleration time constant (s)

:Time constant of servo loop (s)

(Reciprocal of position loop gain)

Specified path

Actual path

D r= (  T

+  T

)  …Exponential acceleration/deceleration

D r= (  T

+  T

)  …Linear acceleration/deceleration or bell

shaped acceleration /deceleration

after interpolation
