9. SPINDLE SPEED FUNCTION

496

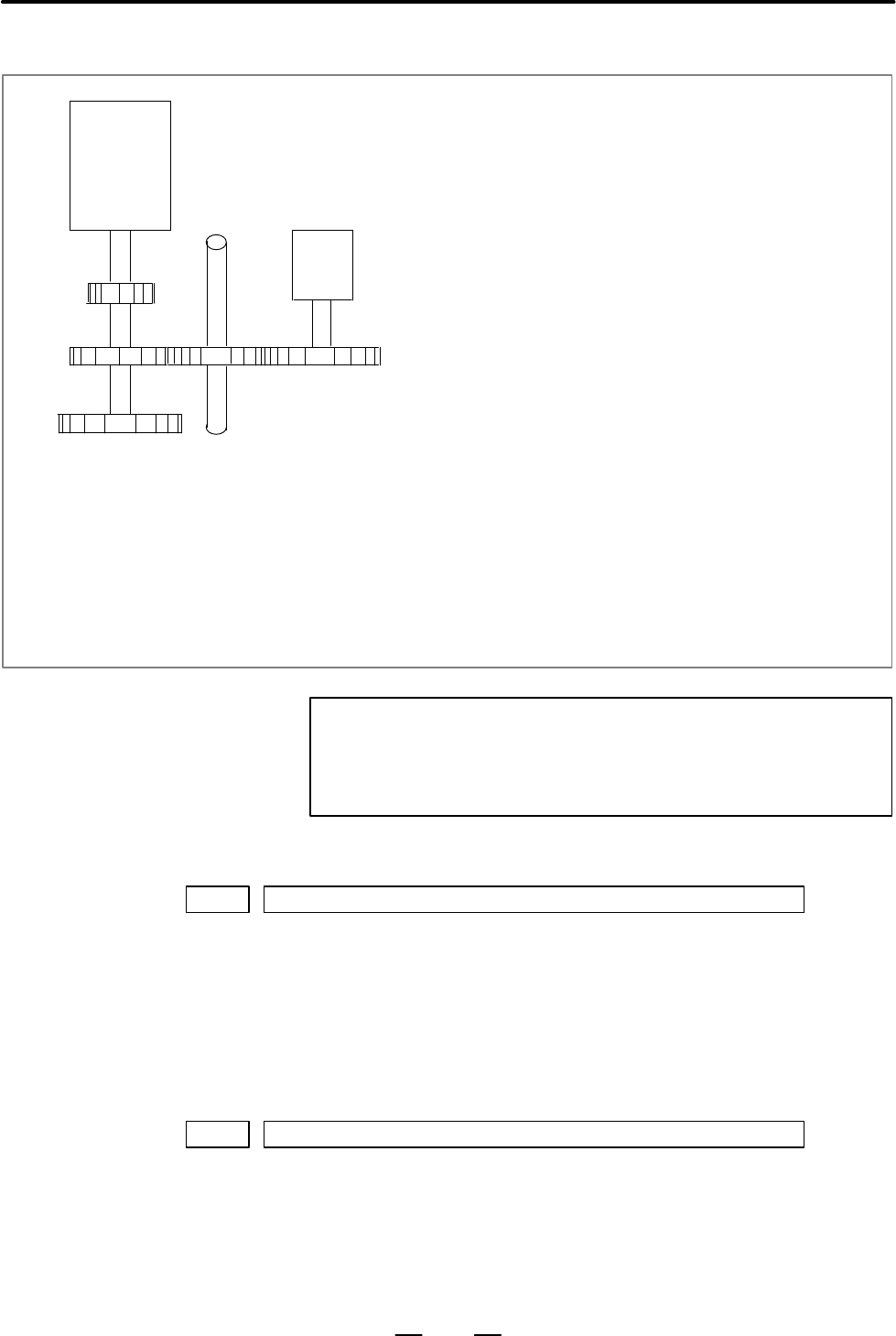

Example)

SPINDLE

MOTOR

Spindle

Position

coder

1: 1: 2

When the spindle motor, spindle, and position coder are

connected as shown left, let the variables be as follows:

E = 1.667 (V)

(A motor speed of 6000 min

–1

corresponds to 10

V. )

L = 360°

(One rotation of the spindle corresponds to one

rotation of the spindle motor.)

a = La/4096

= 720°/4096

= 0.17578

La = 720°

(One rotation of the position coder corresponds

to two rotations of the spindle = 360° 2.)

4096 = The number of detected pulses per

rotation of the position coder

 Gear ratio between the spindle and the position coder

1:1 0.08789 degrees. . . . . . . . . . .

1:2 0.17578 degrees. . . . . . . . . . .

1:4 0.35156 degrees. . . . . . . . . . .

1:8 0.70313 degrees. . . . . . . . . . .

Thus, Loop gain multiplier

= 2048 1.667/360 0.17578 1000 = 1667

NOTE

When the position coder which is built in a spindle motor

sends 512 pulses per rotation, the unit used for the

detection, a, is La/2048.

5300 In–position width of tapping axis in rigid tapping

[Data type] Word

[Unit of data] Detection unit

[Valid data range] 1 to 32767

This parameter sets the in–position width of a tapping axis in rigid

tapping.

5301 In–position width of spindle in rigid tapping

[Data type] Word

[Unit of data] Detection unit

[Valid data range] 0 to 32767

This parameter sets the in–position width of a spindle in rigid tapping.
