Series 0i - Model A Connection manual (Function) Page 537

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

10. TOOL FUNCTIONS

521

Tool compensation

memory

Compensation amount

Geometry compensation value for H code

Geometry compensation value for D code

Wear compensation value for H code

Wear compensation value for D code

(T series)

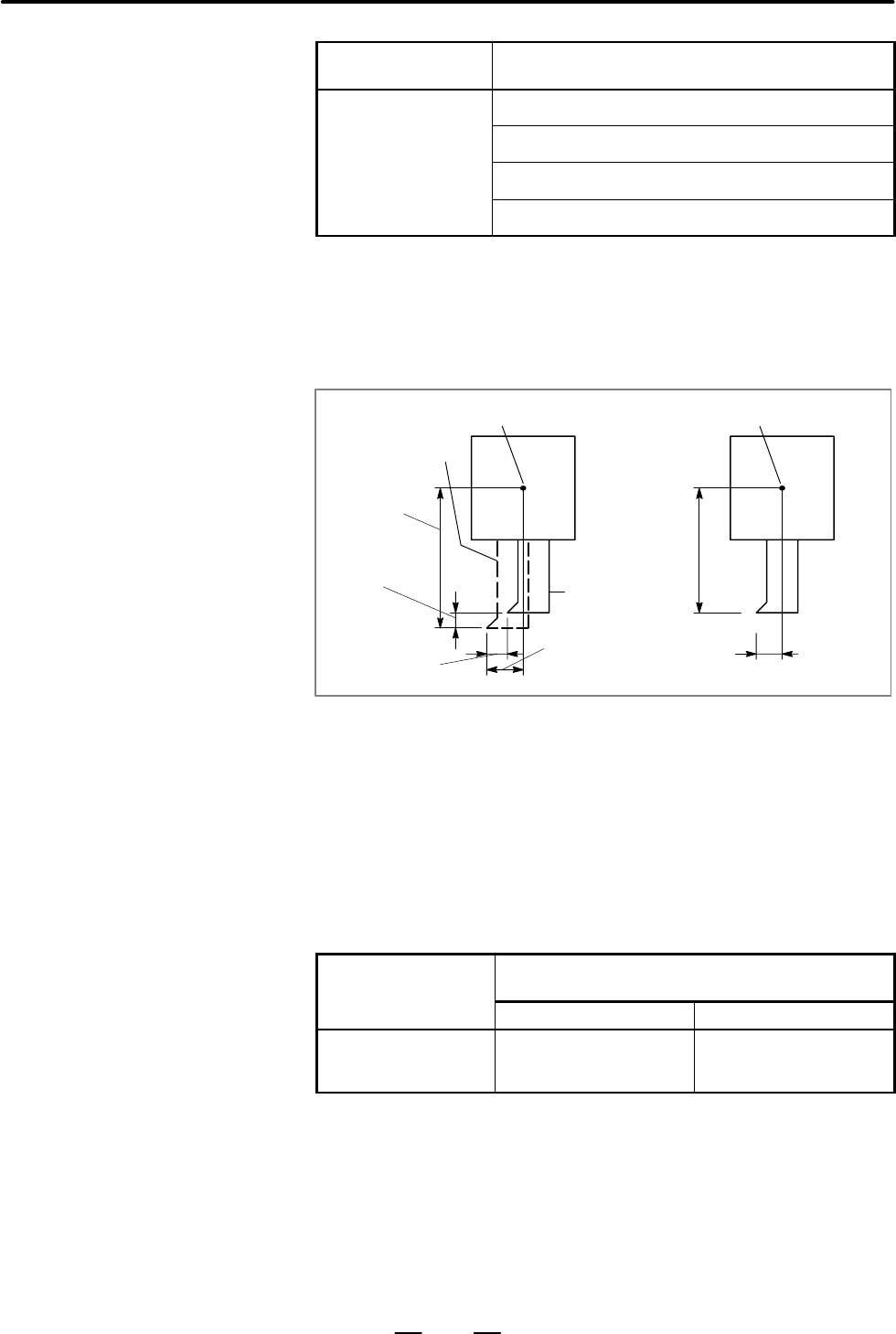

Tool compensation values include tool geometry compensation values

and tool wear compensation values (Fig. 10.2 (b)).

Tool compensation can be specified without differentiating compensation

for tool geometry from that for tool wear (Fig. 10.2 (c)).

X axis

geometry

offset

value

X axis

wear

offset

value

Point on the program

Imaginary tool

Actual

tool

Point on the program

Offset

value on

X axis

Offset

value on

Z axis

Fig. 10.2 (b) Difference the

tool geometry offset from tool

wear offset

Fig.10.2 (c) Not difference the tool

geometry offset from tool wear

offset

Z axis

wear

offset

value

Z axis

geometry

offset

value

Tool compensation values can be entered into CNC memory from the

CRT/MDI panel or from a program.

A tool compensation value is selected from the CNC memory when the

corresponding code is specified after address T in a program.

The value is used for tool offset or tool nose radius compensation.

Tool offset amount range which can be set is as follows:

Increment system

Tool compensation

(geometry compensation, wear compensation)

Increment system

Metric input Inch input

IS-B

IS-C

"999.999 mm

"999.9999 mm

"99.9999 inch

"99.99999 inch

The memory can hold 32 sets of tool compensation values.

D Range of tool

compensation value

D Tool compensation

number
