10. TOOL FUNCTIONS

B–63503EN–1/01

520

10.2

TOOL COMPENSATION VALUE/

TOOL COMPENSATION NUMBER/

TOOL COMPENSATION MEMORY

(M series)

Tool compensation values include tool geometry compensation values

and tool wear compensation values (Fig. 10.2 (a)).

The geometry compensation and wear compensation can be unified to the

tool compensation.

Geometry

compensation

value

Wear

Compensation

value

(a) Geometry and wear com-

pensation are discriminated

Tool com-

pensation

value

(b) Geometry and were compensa-

tion are not discriminated

Standard position Standard position

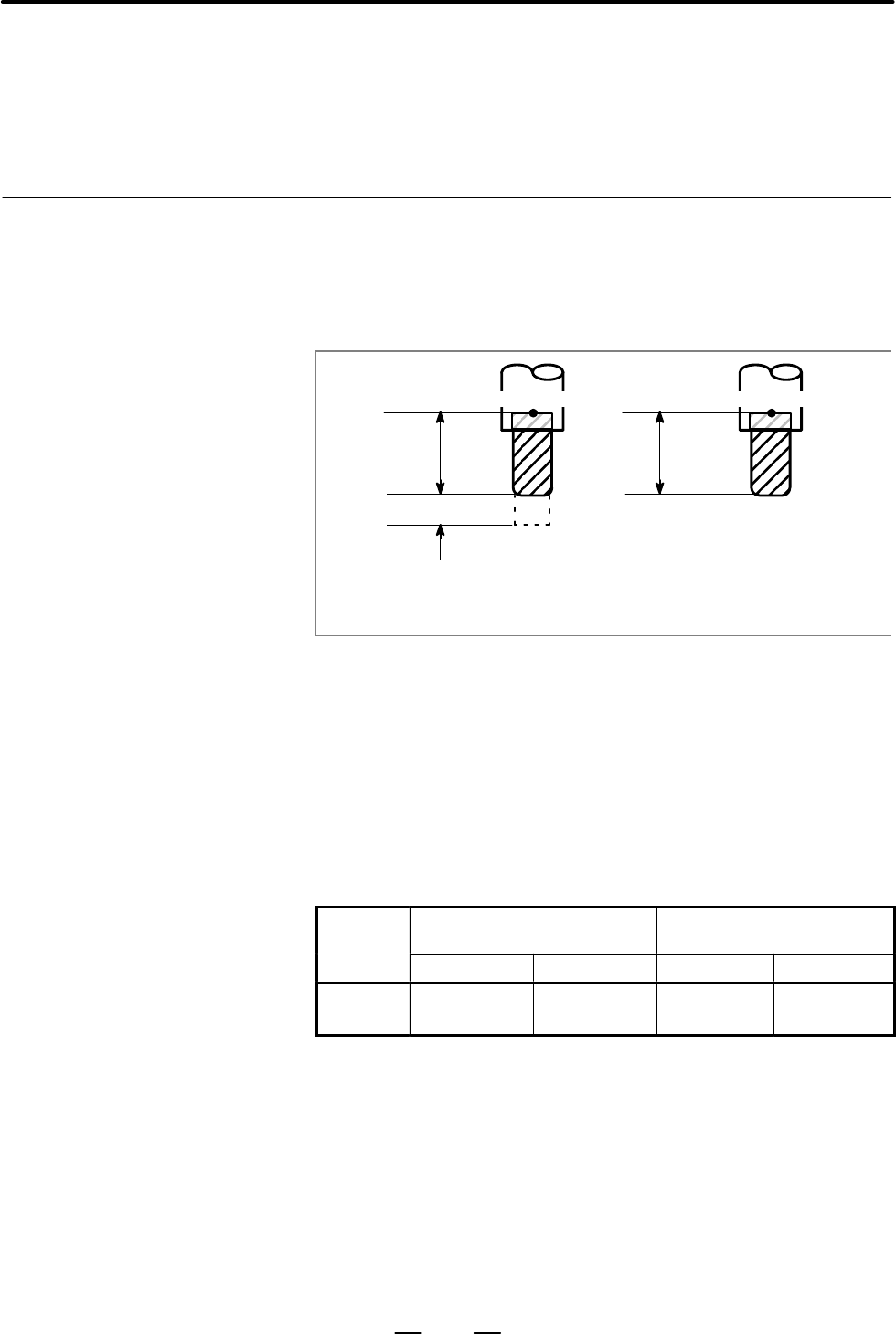

Fig. 10.2(a) Geometric compensation and wear compensation

Tool compensation values can be entered into CNC memory from the

CRT/MDI panel or from a program.

A tool compensation value is selected from the CNC memory when the

corresponding code is specified after address H or D in a program.

The value is used for tool length compensation, cutter compensation, or

the tool offset.

Tool offset amount range which can be set is as follows:

Increment

Tool compensation

(Geometry compensation)

Tool wear compensation

system

Metric input Inch input Metric input Inch input

IS-B

IS-C

"999.999mm

"999.9999mm

"99.9999inch

"99.99999inch

"99.999mm

"99.9999mm

"9.9999 inch

"9.99999inch

The memory can hold 400 sets of tool compensation values.

Type of tool compensation is C.

Tool compensation memory C

Memory for geometry compensation and wear compensation is pre-

pared separately in tool compensation memory C. Geometry com-

pensation and wear compensation can thus be set separately. Separate

memories are prepared for cutter compensation (for D code) and for

tool length compensation (for H code).

General

D Range of tool

compensation value

D Tool compensation

number

D Tool compensation

memory
