11. PROGRAM COMMAND

601

G17 (G18 or G19) : Select the plane in which contains the figure to be

rotated.

α_β_ Absolute command for two of the x_,y_,and Z_ axes that

correspond to the current plane selected by a

command (G17, G18, or G19). The command specifies

the coordinates of the center of rotation for the values

specified subsequent to G68.

R_ Angular displacement with a positive value indicates

counter clockwise rotation. Parameter 5400#0

selects whether the specified angular displacement is

always considered an absolute value or is considered an

absolute or incremental value depending on the specified

G code (G90 or G91).

Least input increment : 0.001 deg

Valid data range : –360.000 to 360.000

G68 (G68.1)α_β_R_ ; Start rotation of a coordinate system.

Coordinate system rotation mode

(The coordinate system is rotated.)

G69 (G69.1); Coordinate system rotation cancel command

FORMAT

MEANING OF COMMAND

G17

G18

G19

Note:G68/G69 for M series, G68.1/G69.1 for T series.

(α,β)

Angle of rotation

Center of

rotation

Rotation plane G17

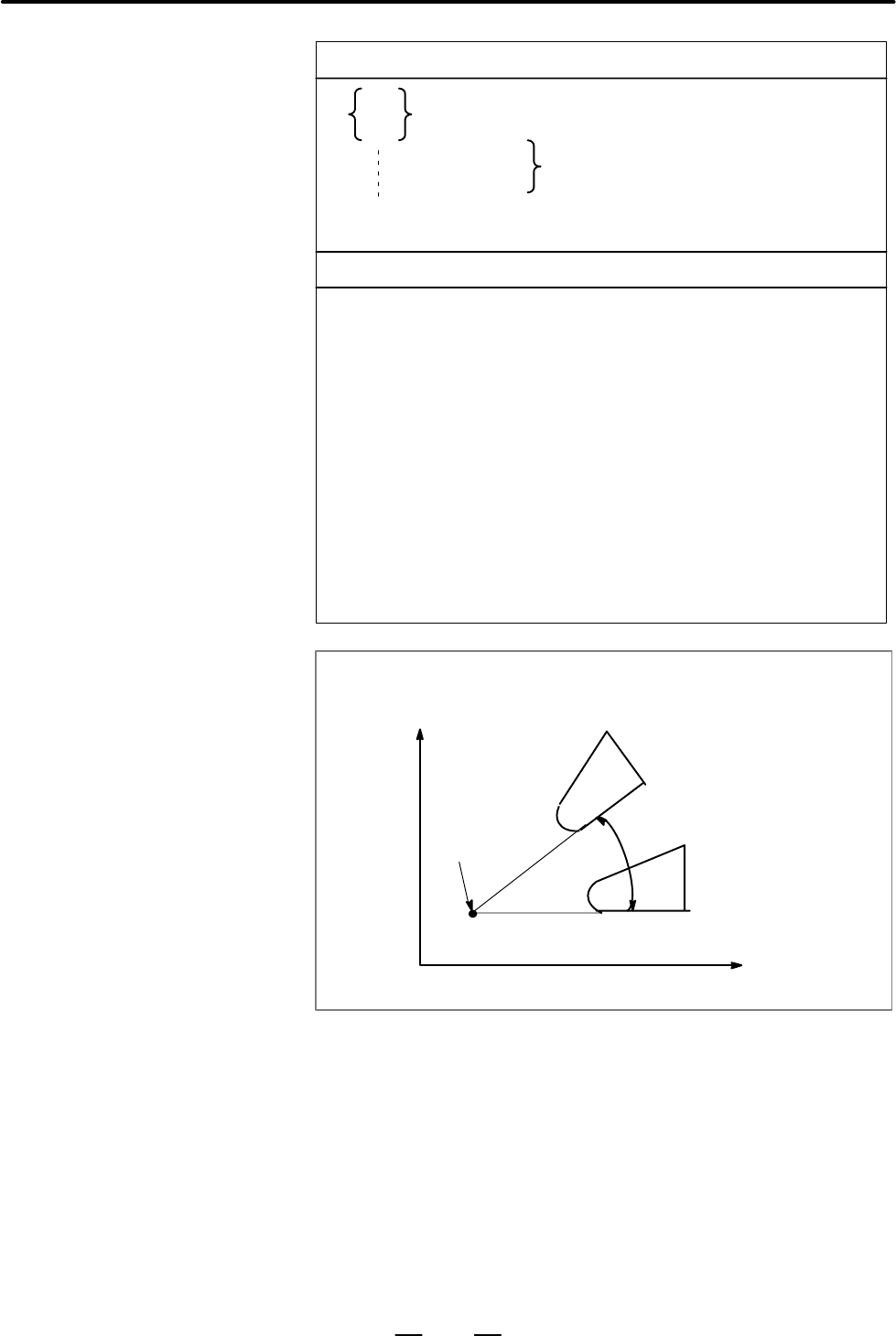

Fig. 11.11 (b) Coordinate system rotation
