Series 16i/18i/160i/180i - PB Connection manual (Function) Page 142

Connection manual (Function)
7. T–AXIS/C–AXIS SIMULTANEOUS CONTROL
B–63683EN/01
132
This function allows a T–axis movement and C–axis movement to be
made simultaneously, as shown in Fig. 7.2(b). This eliminates the
reference position return about the C–axis (
in the conventional control
sequence).
(Sample program)
(Actual operation sequence)
X100. Y200. T100 C90.

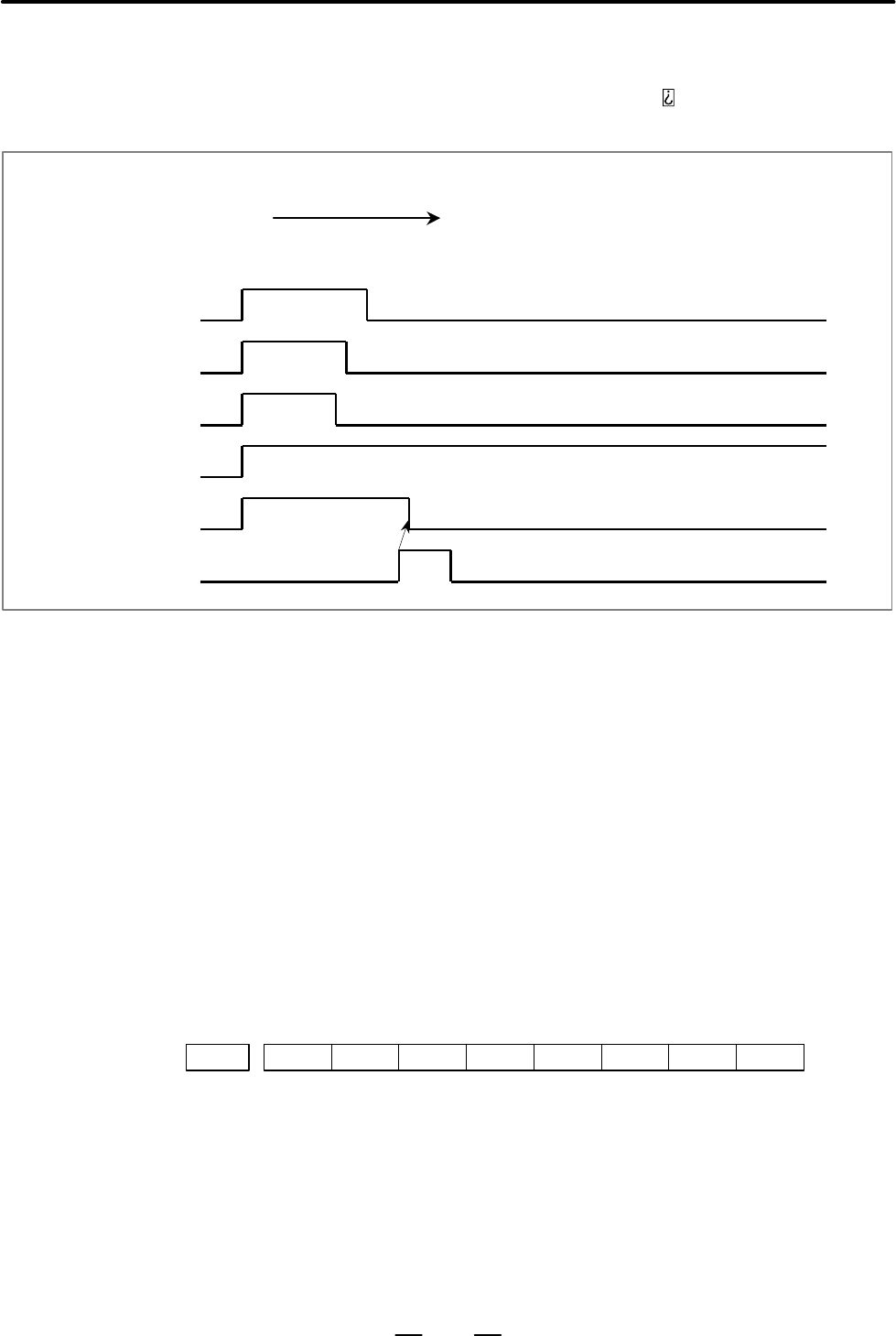

(Timing chart)
X–axis/Y–axis
movement
T–axis movement
C–axis movement
T code output
TF signal output
FIN signal input
X100. Y200. T100 C90.
(Movement on all the specified axes)
(No reference position return about the C–axis)
Fig 7.2 (b) T–axis/C–axis simultaneous control
Whether the this function or conventional control is used depends on the
type of the tool to be used.
1) Tools that can be controlled by the T–axis/C–axis simultaneous
control
S Tool which is subjected to turret indexing and allows C–axis
control (parameters 16370 to 16389)
S Multiple tool
2) Tools that can be controlled by the conventional control
S Tool which is subjected to turret indexing and does not allow
C–axis control
S Tool that is not subjected to turret indexing
#7
16363
#6 #5 #4
SML
#3 #2 #1 #0
[Data type] Bit
SML T–axis/C–axis simultaneous control function is:
0 : Disabled.
1 : Enabled.
This function cannot be used together with the following function:
S C–axis offset type B
T–axis/C–axis
simultaneous control
D Tools that can be
controlled
7.3
PARAMETER
7.4
CAUTION
