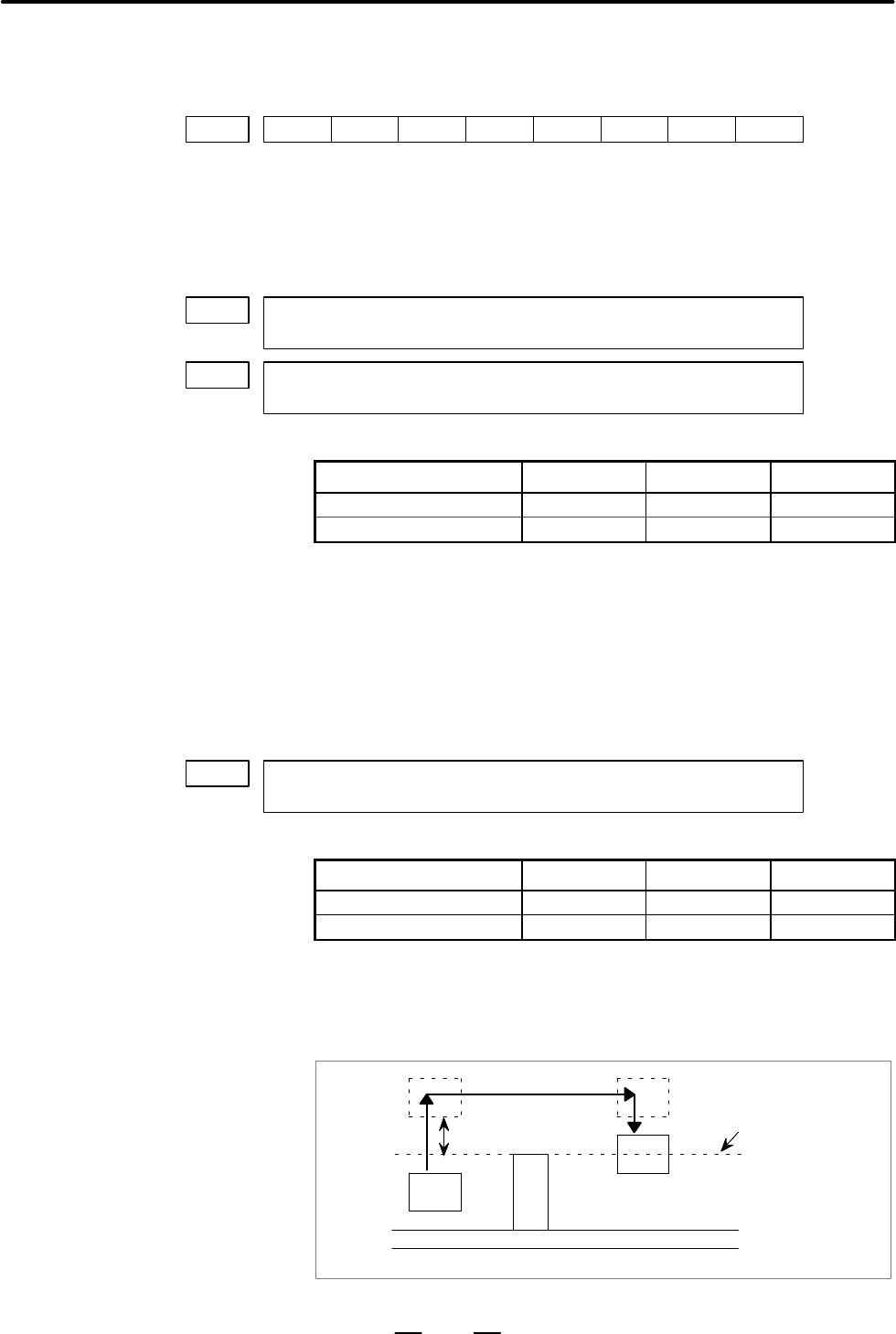

10. WORKPIECE HOLDER INTERFERENCE
AVOIDANCE FUNCTION
B–63683EN/01
172
#7
16502
#6
ACZ
#5 #4 #3 #2 #1 #0
[Data type] Bit
ACZ The function used to prevent interference between workpiece holders of:
0 : Type A is used.
1 : Type B is used.
16559
Width of tool area along the X–axis for the function used to prevent interference
between workpiece holders
16560
Width of tool area along the Y–axis for the function used to prevent interference
between workpiece holders
[Data type] Two–word
Increment system IS–A IS–B Unit
Millimeter machine 0.01 0.001 mm
Inch machine
0.001 0.0001 inch
[Valid data range] 0 to "99999999
Each of the parameters is specified to add a margin to the tool area
(parameters 16517 to 16532, 16551 to 16558) and safety zone area
(parameters 16505 to 16516) is checked, to output the WHAL signal
(F231, #5) by the function used to prevent interference between
workpiece holders. The parameter value is added to the tool area width
when interference is checked.
16561
Compensation value used by the function used to prevent interference between
workpiece holders
[Data type] Two–word
Increment system IS–A IS–B Unit
Millimeter machine 0.01 0.001 mm
Inch machine
0.001 0.0001 inch
[Valid data range] 0 to "99999999
This parameter specifies a compensation value for retraction along the
Y–axis when the function used to prevent interference between workpiece
holders of type B is used.
Workpiece holder Y area
Tool
d : setting value
Tool
Workpiece holder
10.5
PARAMETER
[Unit of data]
[Unit of data]
