Series 16i/18i/160i/180i - PB Connection manual (Function) Page 201

Connection manual (Function)
B–63683EN/01
11. CONTROL FUNCTION
191
If a multiple–workpiece machining skip signal is input for a retrace
re–forward movement during multiple–workpiece machining,
machining of the current workpiece is stopped and machining of another
workpiece begins.

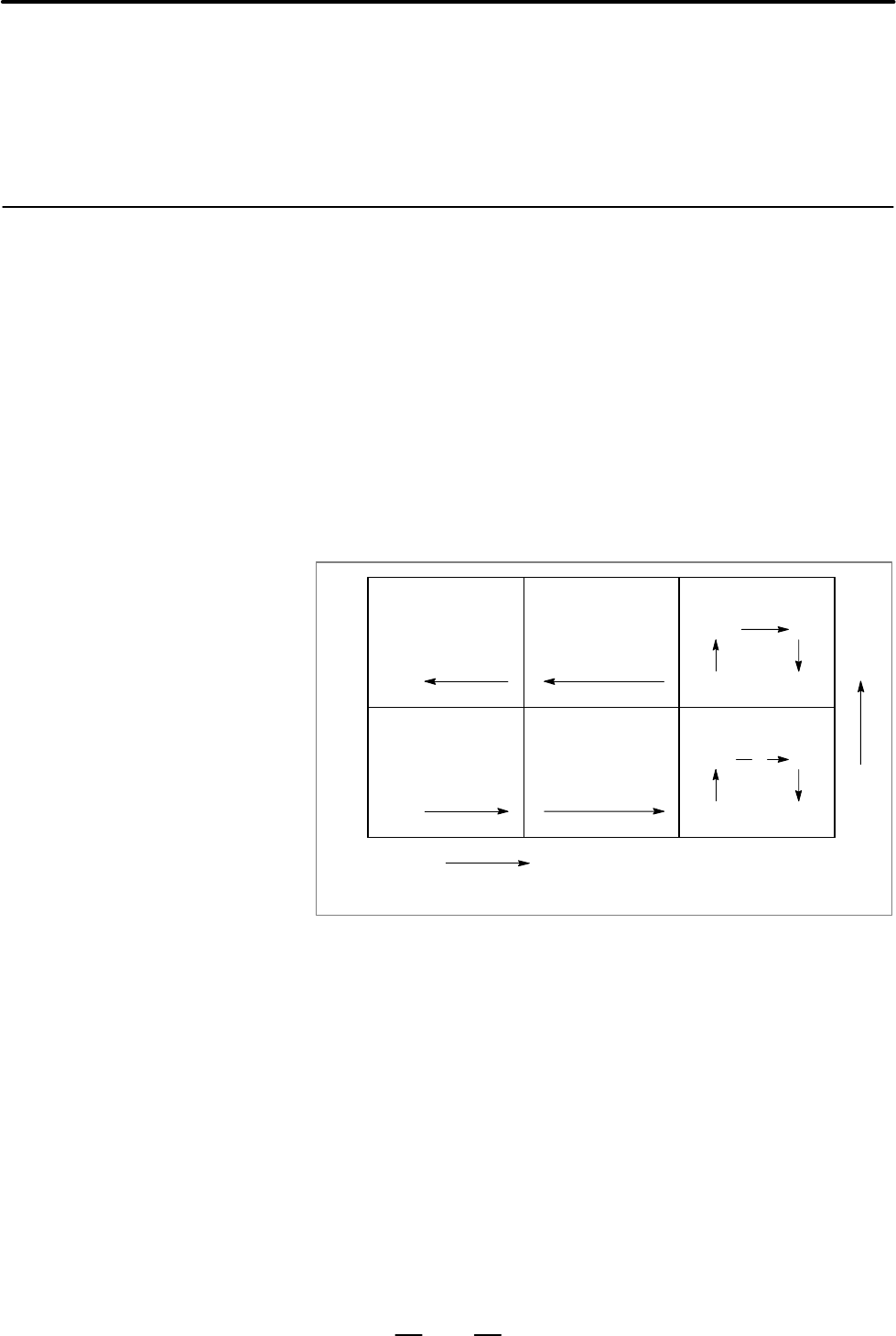

G98 X__ Y__ I__ J__ P2 K1
U1
X50. Y50. T505 (k1)
Y150. (k2)
X200. (k3)
Y50. (k4)
V1
G75 W1 Q1
f L1
L2
L4
L3
(6) (5) (4)
f l1
l2
l4
l3
(1) (2) (3)
Y
START
Y : Multiple–workpiece machining
skip signal is on.
In a multiple–workpiece machining sequence for workpieces 1 to 6, if a
multiple–workpiece machining skip signal is input at position Y during
a retrace backward or re–forward movement in machining workpiece (3),
the machining of workpiece (3) is stopped, and the machining of
workpiece (4) begins.
1) If a multiple–workpiece machining skip signal (G248#3) is input:
(1)Machining continues to l3 and stops there.
(2)The multiple–workpiece machining skip preparation signal
(F225#0) becomes 1.
2) If machining is restarted:
(1)The multiple–workpiece machining skip preparation signal
(F225#0) becomes 0.
11.9
MULTIPLE–
WORKPIECE
MACHINING
RETRACE FUNCTION
Overview
Examples
Operation
