Series 16i/18i/160i/180i - PB Connection manual (Function) Page 39

Connection manual (Function)
B–63683EN/01
2. FUNCTION SPECIFICATIONS THAT DIFFER
FROM THE M series
29
In automatic rapid traverse, the rapid traverse rate can be overridden by
the value determined by the ROV1 and ROV2 signals.
If the function for varying the speed and time constant according to the
positioning distance is used (bit 7 (KLV) of parameter 16050 and bit 7
(KL2j) of parameter 16844 are set to 1), linear acceleration/deceleration
is executed according to the overridden rapid traverse rate of the
corresponding level and the specified time constant.
For positioning under constant positioning time control (bit (PCT) 6 of
parameter 16050 and bit 6 (PT2j) of parameter 16844 are set to 1), rapid
traverse override is disabled and is always set to 100%.

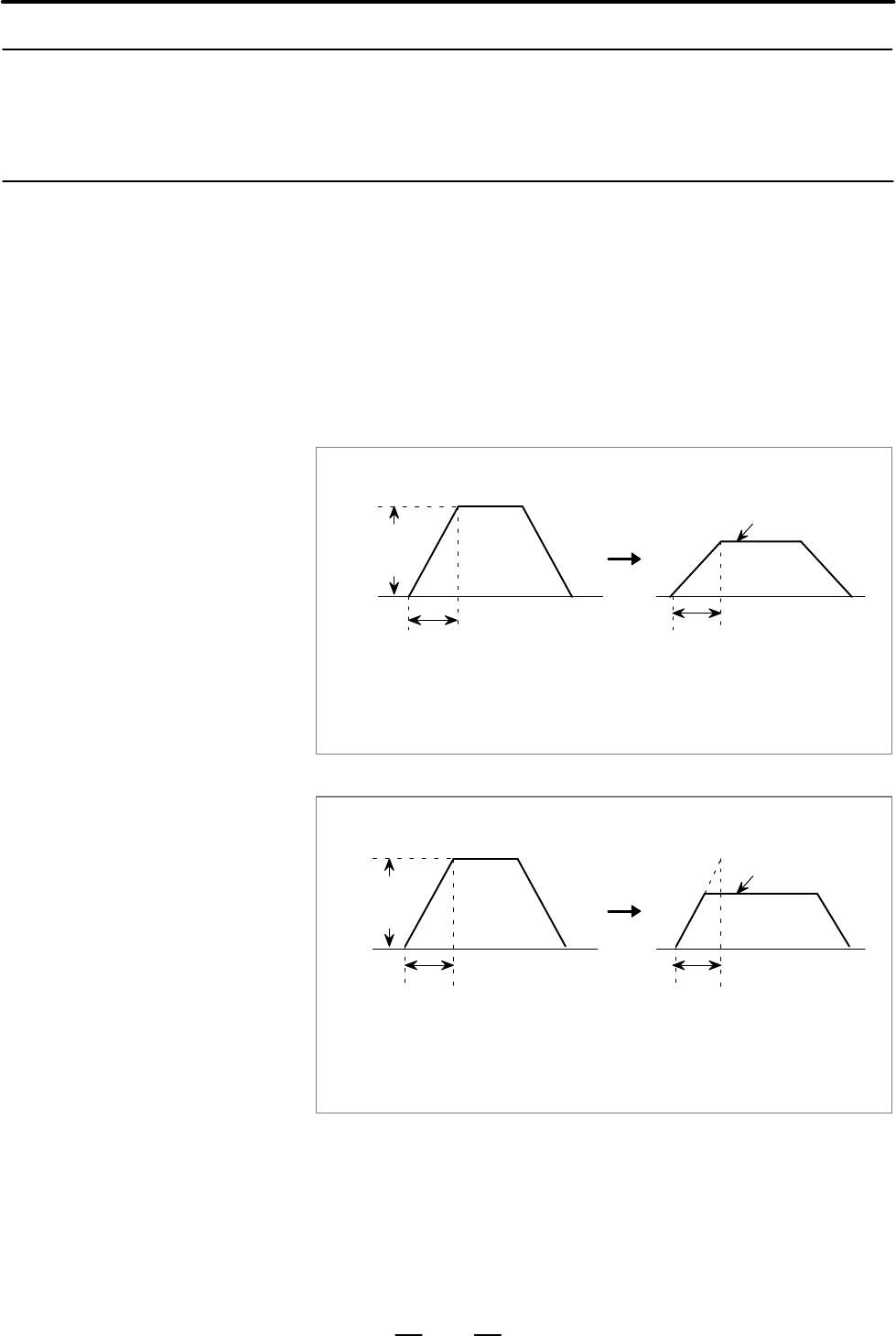

Specified rapid
traverse rate
Rapid traverse rate
overridden by 50%
Specified time constant Specified time constant
Override 100% Override 50%
The acceleration changes.
Fig. 2.6.3 (a) Rapid traverse override for the X– and Y–axes
Specified rapid
traverse rate
Rapid traverse rate
overridden by 50%
Specified time constant Specified time constant
Override 100% Override 50%
The acceleration does not
change.
Fig. 2.6.3 (b) Rapid traverse override for an axis other than the X– and
Y–axes
2.6.3
Rapid Traverse
Override
Difference
