4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 94 -

4.3.1 Front Drilling Cycle (G83)/Side Drilling Cycle (G87)

The peck drilling cycle or high-speed peck drilling cycle is used

depending on the setting in RTR, bit 2 of parameter No. 5101. If

depth of cut for each drilling is not specified, the normal drilling cycle

is used.

- High-speed peck drilling cycle (G83, G87) (parameter RTR (No. 5101#2) =0)

This cycle performs high-speed peck drilling. The drill repeats the

cycle of drilling at the cutting feedrate and retracting the specified

retraction distance intermittently to the bottom of a hole. The drill

draws cutting chips out of the hole when it retracts.

Format

G83 X(U)_ C(H)_ Z(W)_ R_ P_ Q_ F_ K_ M_ ;

G87 Z(W)_ C(H)_ X(U)_ R_ P_ Q_ F_ K_ M_ ;

X_ C_ or Z_ C_ : Hole position data

Z_ or X_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

Q_ : Depth of cut for each cutting feed

F_ : Cutting feedrate

K_ : Number of repeats (When it is needed)

M_ : M code for C-axis clamp (When it is needed.)

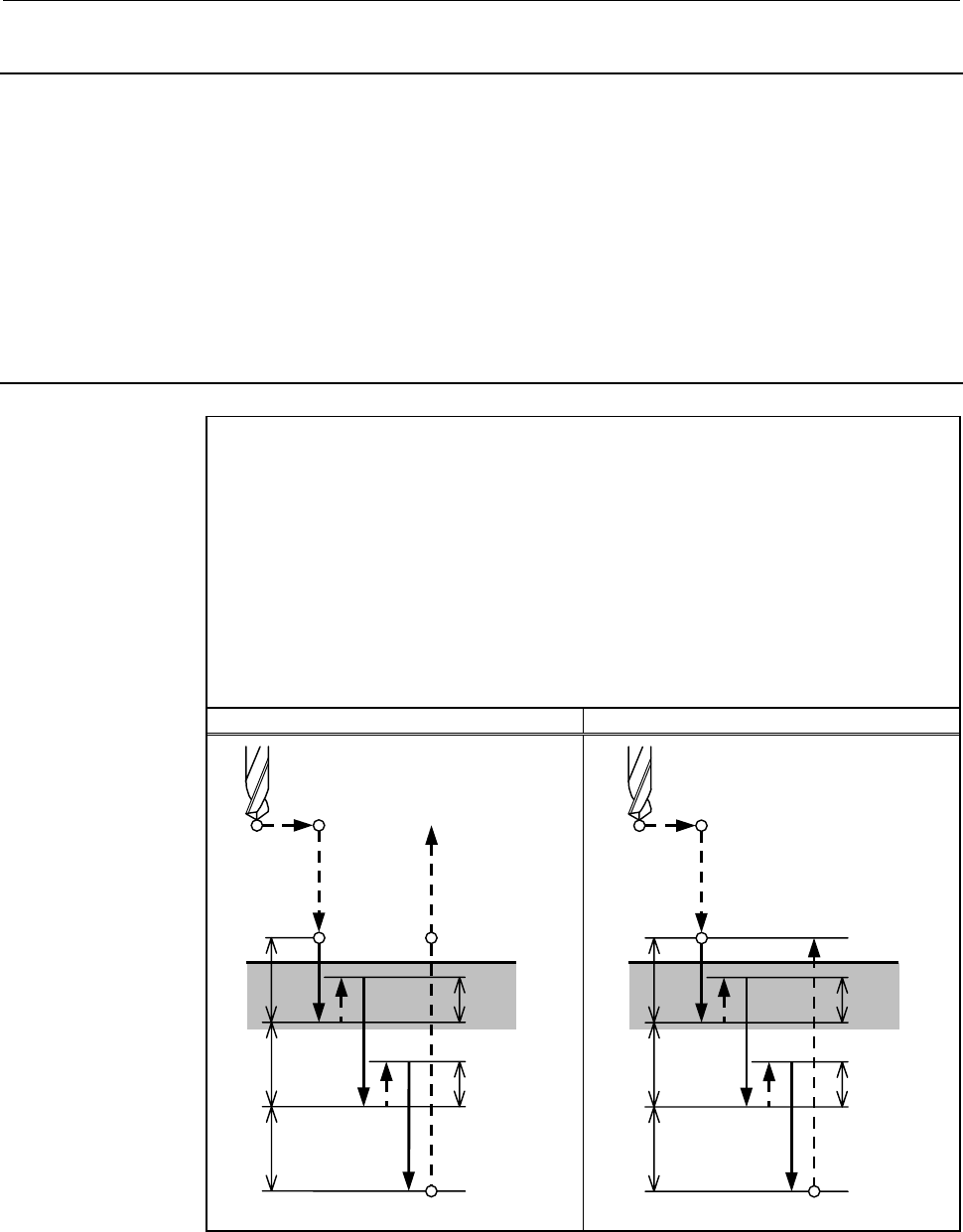

G83 or G87 (G98 mode) G83 or G87 (G99 mode)

M (

+ 1), P2

Point R

Point Z

Initial level

Point R level

Point R

Point Z

M (

+ 1), P2

Mα : M code for C-axis clamp

M (α + 1) : M code for C-axis unclamp

P1 : Dwell specified in the program

P2 : Dwell specified in parameter No. 5111

d : Retraction distance specified in parameter No. 5114
